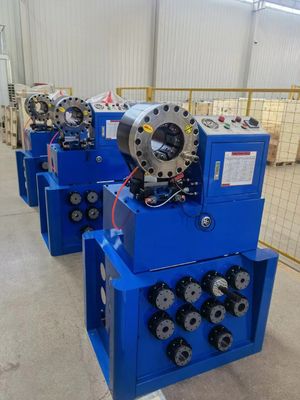

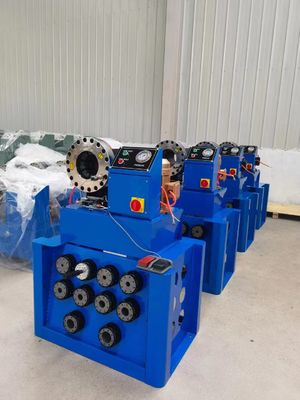

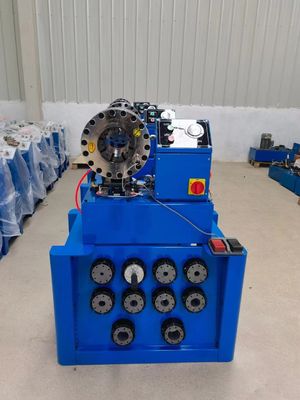

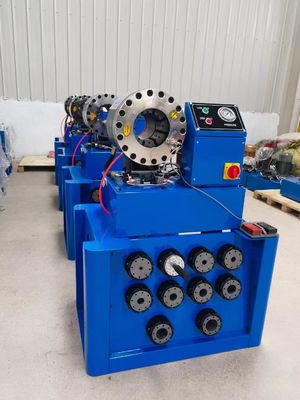

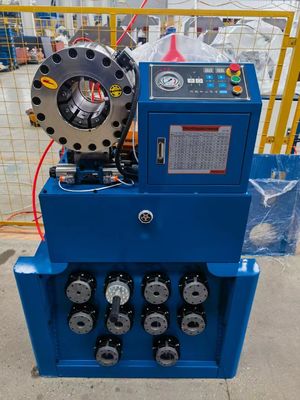

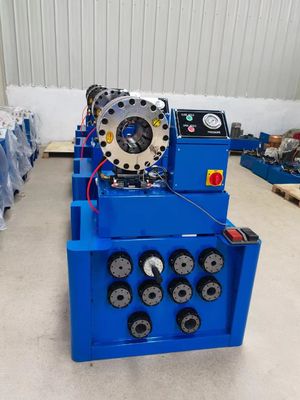

6-38mm High Pressure Hose Crimping Machine Hydraulic Crimper 1-1.5 Inch With Quick Die Change

  • 6-38mm High Pressure Hose Crimping Machine Hydraulic Crimper 1-1.5 Inch With Quick Die Change
  • 6-38mm High Pressure Hose Crimping Machine Hydraulic Crimper 1-1.5 Inch With Quick Die Change
  • 6-38mm High Pressure Hose Crimping Machine Hydraulic Crimper 1-1.5 Inch With Quick Die Change
  • 6-38mm High Pressure Hose Crimping Machine Hydraulic Crimper 1-1.5 Inch With Quick Die Change
  • 6-38mm High Pressure Hose Crimping Machine Hydraulic Crimper 1-1.5 Inch With Quick Die Change
  • 6-38mm High Pressure Hose Crimping Machine Hydraulic Crimper 1-1.5 Inch With Quick Die Change
  • 6-38mm High Pressure Hose Crimping Machine Hydraulic Crimper 1-1.5 Inch With Quick Die Change
Place of Origin China,Shanghai
Brand Name FY
Certification CE
Model Number FY-P38
Minimum Order Quantity 1 set
Price USD$ 1600/1500/1400/1300
Packaging Details wooden box
Delivery Time 2-7 working days
Payment Terms L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability 300 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 220V/240V/380V/415V(Optional) Gross Weight 300kgs
Net Weight 275kg Power(w) 3KW/4KW
Dimension(l*w*h) 950*630*700 Mm Package Dimension 1000*680*750 Mm
Warranty 1 Year Condition New
After-sales Service Provided Video Technical Support,Online Support Crimping Force 300Ton
Product Name CE Approved 6-51mm High Pressure Hydraulic Hose Crimping Machine Crimping Range 6-38mm
Color Blue,blue Or Customize Application Crimp Hose
Free Dies 8sets System Pressure 26MPA/31.5MPA
Output Volume Of Pump 2.5L/5L HIGH LIGHT Advanced Hydraulic Pipe Crimping Machine, Dash Control Hydraulic Pipe Crimping Machine, Pipe Crimping Machine
High Light

1.5 Inch high pressure hose crimping machine

,

38mm high pressure hose crimping machine

,

hydraulic crimper machine 1 inch
You can tick the products you need and communicate with us in the message board.
crimping range 6-38 mm
quantity of dies 8 sets
accuracy 0.01 mm
output volume of pump 2.5L/5L/10L
system pressure 31.5mpa
motor power 3kw
voltage 220v/240v/380v/415v (optional)
crimping force 300 t
work efficiency 200 pcs/h
maximum open diameter 104mm
the max open tolerance 20 ±mm
machine dimension 950*630*700 mm
package dimension 1000*680*750 mm
net weight 275 kg
gross weight 300 kg
Leave a Message
crimping range 6-38 mm
Product Description

6-38mm 1 inch -1.5 inch Advanced Dash Control Hydraulic Pipe Crimping Machine With Quick Die Change

DESCRIPTION

Use manual or mechanical means to peel off the outer skin of the rubber tube.FY-P38 high pressure hose crimper is with crimping ability from 6mm to 38mm (1/4'' to 1.5'') for high pressure hydraulic hose. It is with quick change tool for die sets and die rack, which support a safe place for dies.



THE HOSE CRIMPING MACHINE'S FEATURES
1) Famous Brand valve system, high quality, long using time, low maintenance cost
2) Foot pedal frees the operator's hand for holding big size hydraulic hose
3) Advanced Dash control, multifunction for crimping work
4) Quick change for die sets enable die sets change all at one time

crimping range 6-38mm(1/4''-1.5''inner diameter of hose)
Rated pressure 26Mpa/31.5Mpa(Optional)
The largest crimping pressure 300T
Rular precision 0.01mm
Output volume of pump 2.5L/5L(Optional)
Net weight 275kg
Work efficiency 200pcs/h
size 950*630*700 mm
dies 8 sets
Item No.of dies length 60mm(15,19,23,26);Length 70mm(31,36,41);Length 80mm(47,55,60)



6-38mm High Pressure Hose Crimping Machine Hydraulic Crimper 1-1.5 Inch With Quick Die Change 0

6-38mm High Pressure Hose Crimping Machine Hydraulic Crimper 1-1.5 Inch With Quick Die Change 1

crimping range 6-38mm(1/4''-1.5''inner diameter of hose)
Rated pressure 26Mpa/31.5Mpa(Optional)
The largest crimping pressure 300T
Rular precision 0.01mm
Output volume of pump 2.5L/5L(Optional)
Net weight 275kg
Work efficiency 200pcs/h
size 950*630*700 mm
dies 8 sets
Item No.of dies length 60mm(15,19,23,26);Length 70mm(31,36,41);Length 80mm(47,55,60)

6-38mm High Pressure Hose Crimping Machine Hydraulic Crimper 1-1.5 Inch With Quick Die Change 2



TECHNICAL DATA

Model FY-P38 Hose Crimping Machine
Crimping Range 6-38(mm)
Crimping Force 300(T)
Hose Size 1/4-1.5(inch)
Max. Opening 20±mm
Die Sets 8

Maximum Open Diameter

 104MM
System Pressure 26(Mpa)/31.5(Mpa)
Accuracy 0.01(mm)

Work Efficiency

 200 pcs/h
Standard Voltage

220v/240v/380v/415v(optional)
Motor Power 3(KW)/4(KW)
Length 950(mm)
Width 630(mm)
Height 700(mm)
Weight 275(KG)



6-38mm High Pressure Hose Crimping Machine Hydraulic Crimper 1-1.5 Inch With Quick Die Change 3




NOTE

- for non standard die sets;

- Customized die sets are available;

- Special voltage 220V, 240V, 380V,415V are availbale;



► ADVANCED PLC SYSTEM
Multifucntional control panel with different operation mode

6-38mm High Pressure Hose Crimping Machine Hydraulic Crimper 1-1.5 Inch With Quick Die Change 4

► DIE SETS
8 die sets hardness 59-63HRC, with quick change tool, productivity improve much.

6-38mm High Pressure Hose Crimping Machine Hydraulic Crimper 1-1.5 Inch With Quick Die Change 5



► FAMOUS BRAND MOTOR
World famous motor with high stability

6-38mm High Pressure Hose Crimping Machine Hydraulic Crimper 1-1.5 Inch With Quick Die Change 6



► ONE PIECE FORGED OIL CYLINDER
Forged cylinder has higher anti wear ability compared with traditional technology

6-38mm High Pressure Hose Crimping Machine Hydraulic Crimper 1-1.5 Inch With Quick Die Change 7

► APPLICATIONS
FY-P38 is a high configured hose crimper, it has the ability of crimping high pressure stainless steel braided hydraulic oil hose, industrial fexible pipes, air or water hose, cable and wires, steel and iron tubes, brake lines in automotive system, air suspension or springs.

6-38mm High Pressure Hose Crimping Machine Hydraulic Crimper 1-1.5 Inch With Quick Die Change 8
