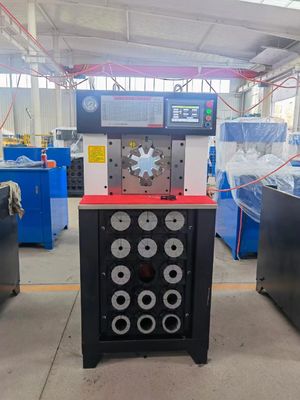

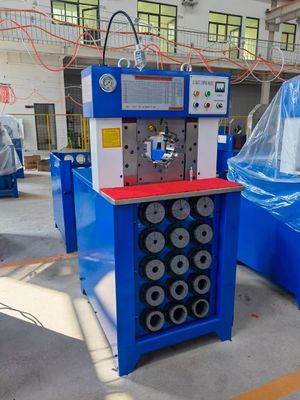

Ac Hydraulic Hose Crimping Machine 1/4-3 inch Air Con Hose Crimper
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xVoltage | 380V | Gross Weight | 1250kgs |
---|---|---|---|
Power(w) | 5.5KW | Package Dimension | 1050*850*1680mm |
After-sales Service Provided | Video Technical Support,Online Support | Product Name | CE Approved 6-76mm High Pressure Hydraulic Hose Crimping Machine |
Application | Crimp Hose | Free Dies | 15sets |
System Pressure | 31.5MPA | Output Volume Of Pump | 10L/16L |
HIGH LIGHT | Large Opening Hydraulic Hose Crimping Machine, PLC Hydraulic Hose Crimping Machine, CBK-120 Hose Crimping Machine |
crimping range | 6-76 mm | |
---|---|---|
quantity of dies | 15 sets | |
accuracy | 0.01 mm | |
output volume of pump | 10L/16L | |
system pressure | 31.5mpa | |
motor power | 5.5kw | |
voltage | 380v | |
crimping force | 1500 t | |
work efficiency | 200 pcs/h | |
maximum open diameter | 158mm | |
the max open tolerance | 53 ±mm | |
machine dimension | 1000*800*1630 mm | |
package dimension | 1050*850*1680 mm | |
net weight | 1250 kg | |
gross weight | 1300 kg |

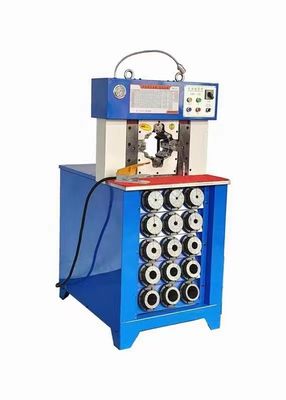

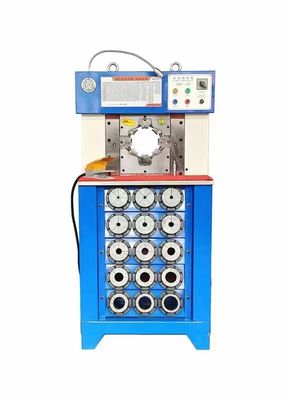

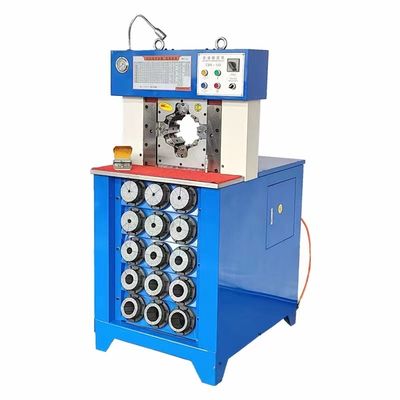

Ac Hydraulic Hose Crimping Machine 1/4-3 inch Air Con Hose Crimper
HYDRAULIC HOSE CRIMPING MACINE DESCRIPTION
The Hydraulic Hose Crimping Machine is a tool used for crimping air conditioning hoses. Hydraulic Hose Crimping Machine can crimp hoses with diameters ranging from 1/4 to 3 inches. Hydraulic Hose Crimping Machine is powered by an electric motor and hydraulic system, making it easy to use and efficient. Hydraulic Hose Crimping Machine comes with a set of dies that can be changed to accommodate different hose sizes. The crimping process helps to ensure a secure connection between the hose and fittings, preventing leaks and other issues.
Take out the crimped hose assembly and use a vernier caliper to check the outer diameter of the crimped joint jacket. If Ac pipe crimping machine does not match the parameter table, fine-tune the micrometer scale until the crimping of the next hose meets the requirements.Ac hydraulic hose crimping machine is specially designed for big elbow fittings and abnormal shape couplings jointing. It has a thin crimping unit with large opening stroke, can let long degree fitting crossing easily.
AC HOSE CRIMIPNG MACHINE'S HOT SELLING AND MAIN FEATURES
► UC control technology, crimping more accurate with high stability
► Quick change rack and die quick change technology, improve productivity
► Emergency stop device, make crimping more safe
TECHNICAL DATA
Model | FY-CBK-120 |
Crimping Range | 6-76(mm) |
Crimping Force | 1500(T) |
Hose Size | 1/4-3(inch) |
Max. Opening | 53±mm |
Die Sets | 15 |
Maximum Open Diameter |
158MM |
System Pressure | 31.5(Mpa) |
Accuracy | 0.01(mm) |
Work Efficiency |
pcs/h |
Standard Voltage |
380v |
Motor Power | 5.5(KW) |
Length | 1000(mm) |
Width | 800(mm) |
Height | 1630(mm) |
Weight | 1250(KG) |
NOTE
- for non standard die sets;
- Customized die sets are available;
- Special voltage 380V is availbale;
crimping range | 6-76 mm |
quantity of dies | 15 sets |
accuracy | 0.01 mm |
output volume of pump | 10L/16L |
system pressure | 31.5mpa |
motor power | 5.5kw |
voltage | 380 |
crimping force | 1500t |
work efficiency | pcs/h |
maximum open diameter | 158mm |
the max open tolerance | +53mm |
machine dimension | 1000*800*1630 mm |
package dimension | 1050*850*1680mm |
net weight | 1250 kg |
gross weight | 1300kg |
► LARGE PLC PANEL
Advanced PLC panel with high stability, convenient operating
►QUICK CHANGE TOOL FOR DIES
Make die set changing more convenient and supply a safe storage of the die sets
