| Brand Name: | FY |
| Model Number: | FY-51CSD |
| MOQ: | 1 set |
| Price: | USD$ 1300 |
| Payment Terms: | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability: | 300 sets per month |

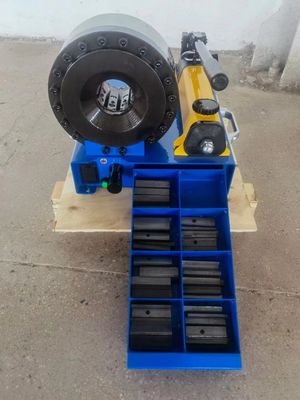

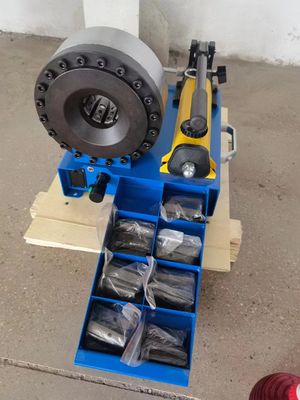

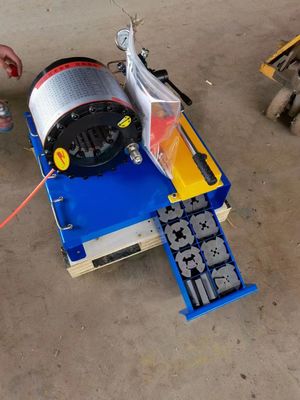

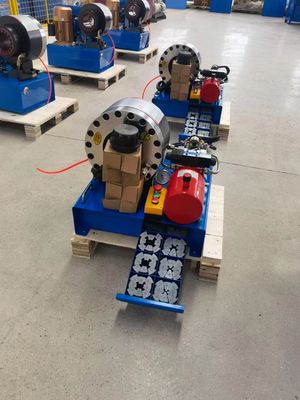

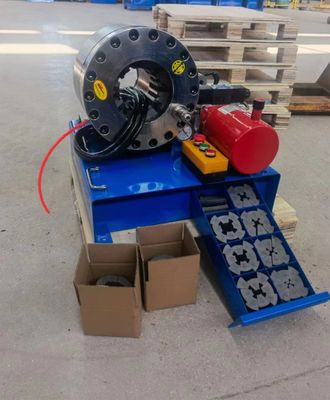

MANUAL HOSE CRIMPING MACHINE
FY-51CSD
THE APPLIANCE'S DESCRIPTION
When using the tube press for the first time, it should be crimped 20 to 30 times without load, and it can be used after observing that all parts are normal.FY-51CSD is a portable hose crimping machine. It is designed for field service when repairs must be made on-site. It is simple and striaght-forward in construction, easy to operate and highly reliable. The light weight allow equipment to be easily carried to any location. The most popular applications for this portable hose crimping machine is in repair shops and in industrial maintenance units.
ADVANTAGES
1. Small size light weight, can be take to any place;
2. World famous hydraulic pump,
3. High accuracy,
4. High efficient and top accurate crimping with Finn Power Dial,
5. Stable performance even after years of service.
TECHNICAL DATA
| Model | FY-51CSD Manual Crimper |
| Crimping Range | 6-51(mm) |
| Crimping Force | 600(T) |
| Hose Size | 1/4-2(inch) |
| Max. Opening | 30(mm) |
| Die Sets | 10 |
|
Maximum Open Diameter
|
114MM |
| System Pressure | 70(Mpa) |
| Accuracy | 0.01(mm) |
|
Work Efficiency
|
10 PCS/H |
| Standard Voltage | Manual Pump/0 V |
| Motor Power | Manual Pump/0 KW |
| Length | 550(mm) |
| Width | 670(mm) |
| Height | 555(mm) |
| Weight |
200(KG) |
