| Brand Name: | FY |
| Model Number: | FY-51BJ-1L |
| MOQ: | 1 set |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 sets per month |

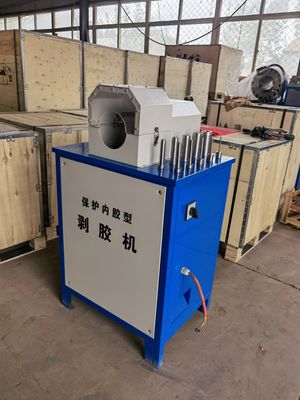

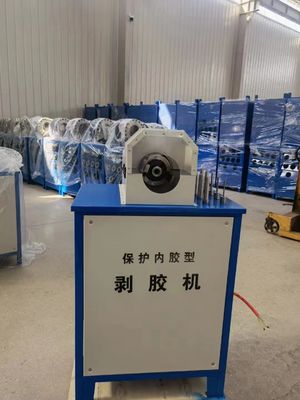

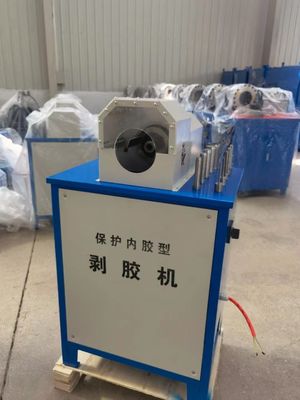

ELECTRIC HOSE SKIVING MACHINE FY-51BJ-1L
DESCRIPTION
Hydraulic hose skiving machine includes motor,reducer,electrical box,frame,cage,edge rod support,edge rod,mandrels,mandrel box and pedal. Its main applying object is the hose containing steel wire. Its main function is to get rid of the rubber outside the steel wire layer in order to be convenient for installing hoop iron. The usage of this machine is easy and the working efficiency is high. Especially for the hose with winding steel wire, we can undertake forward direction peeling or reverse peeling according to the direction of winding layer steel wire.
The advantages of our different hydraulic hose peeler/skiving machine and our company
1.Have quality guarantee and enjoy high reputation in global market
2.Rich experience and focus on machines manufacturing for many years
3.Strictly processed control and advanced management
4.Best service and competitive price.
5.Having various hydraulic hose and hose crimping machines with different types and models
6.Perfect equipment and Superior technology.
7.Meet international standard and passed the ISO9001:2000 certificate.
ADVANTAGES
1. Movable wheel to make the machine more convenient to move;
2. Human design handle, save opetator power;
3. Scale on the skiving tool, easy to adjust the skiving depth;
4. High quality copper wire aluminium motor, no heat exceed even afetr using for a long time.
TECHNICAL DATA
| Model | FY-51BJ-1L Hose Cutting/skiving Machine |
| Hose Size | 1/4''-2'' |
| Work Efficiency | 1500pcs/h |
| Voltage | 220v-415v 50/60hz(optional) |
| Motor Power | 0.75-1.5kw |
|
Accuracy
|
manual |
| Quality Of Dies | 10 pcs |
| Length | 620mm |
| Width | 470mm |
| Height | 1050mm |
| Weight |
75kg |
► PICTURES
