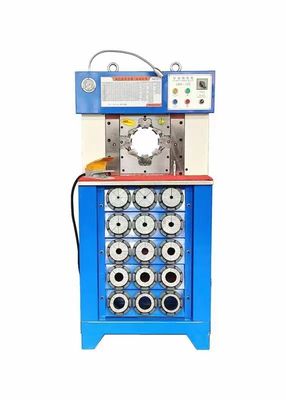

Powerful Press AC Hose Crimping Machine High Pressure 15 Sets Aircon Hose Crimper CBK-120 Intelligent System
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xVoltage | 380V | Gross Weight | 1250kgs |
---|---|---|---|
Net Weight | 1300kg | Power(w) | 5.5KW |
Dimension(l*w*h) | 1000*800*1630 Mm | Package Dimension | 1050*850*1680mm |
Warranty | 1 Year | Condition | New |
After-sales Service Provided | Video Technical Support,Online Support | Crimping Force | 1500Ton |
Product Name | CE Approved 6-76mm High Pressure Hydraulic Hose Crimping Machine | Crimping Range | 6-76mm |
Color | Black,White Or Customize | Application | Crimp Hose |
Free Dies | 15sets | System Pressure | 31.5MPA |
Output Volume Of Pump | 10L/16L | HIGH LIGHT | Large Opening Hydraulic Hose Crimping Machine, PLC Hydraulic Hose Crimping Machine, CBK-120 Hose Crimping Machine |
High Light | Powerful Press AC Hose Crimping Machine,AC Hose Crimping Machine High Pressure,15 sets aircon hose crimper |
crimping range | 6-76 mm | |
---|---|---|
quantity of dies | 15 sets | |
accuracy | 0.01 mm | |
output volume of pump | 10L/16L | |
system pressure | 31.5mpa | |
motor power | 5.5kw | |
voltage | 380v | |
crimping force | 1500 t | |
work efficiency | 200 pcs/h | |
maximum open diameter | 158mm | |
the max open tolerance | 53 ±mm | |
machine dimension | 1000*800*1630 mm | |
package dimension | 1050*850*1680 mm | |
net weight | 1250 kg | |
gross weight | 1300 kg |
Powerful Press High Pressure Hose Machine CBK-120 Intelligent System
DESCRIPTION
Place the hose with the joint in the proper position in the press head, so that the entire length is crimped at one time.
FY-CBK-120 hydraulic hose crimping machine is specially designed for big elbow fittings and abnormal shape couplings jointing. It has a thin crimping unit with large opening stroke, can let long degree fitting crossing easily.
MAIN FEATURES
► UC control technology, crimping more accurate with high stability
► Quick change rack and die quick change technology, improve productivity
► Emergency stop device, make crimping more safe
TECHNICAL DATA
Model | FY-CBK-120 |
Crimping Range | 6-76(mm) |
Crimping Force | 1500(T) |
Hose Size | 1/4-3(inch) |
Max. Opening | 53±mm |
Die Sets | 15 |
Maximum Open Diameter |
158MM |
System Pressure | 31.5(Mpa) |
Accuracy | 0.01(mm) |
Work Efficiency |
pcs/h |
Standard Voltage |
380v |
Motor Power | 5.5(KW) |
Length | 1000(mm) |
Width | 800(mm) |
Height | 1630(mm) |
Weight | 1250(KG) |
NOTE
- for non standard die sets;
- Customized die sets are available;
- Special voltage 380V is availbale;

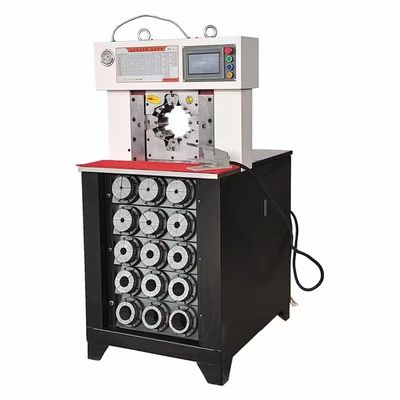

► LARGE PLC PANEL
Advanced PLC panel with high stability, convenient operating
►QUICK CHANGE TOOL FOR DIES
Make die set changing more convenient and supply a safe storage of the die sets
