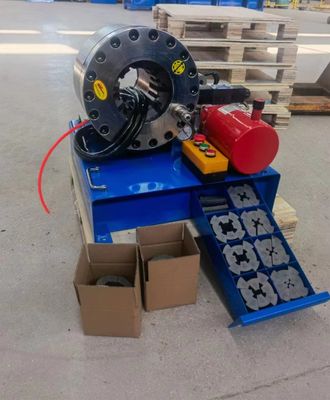

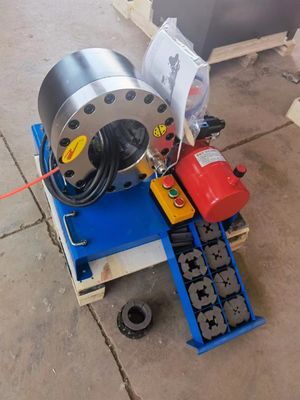

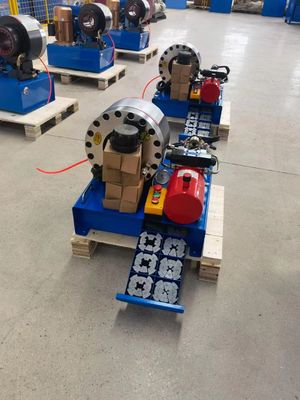

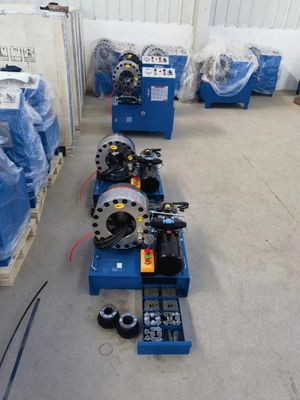

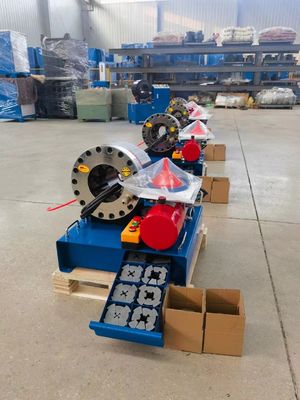

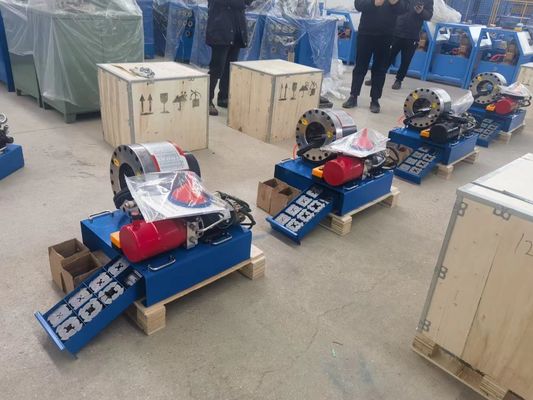

51cz 12V Hose Crimper High Pressure 6mm Portable Hydraulic Hose Crimping Machine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xReinforcement | 1-4 Layers Wire | Crimping Range | 6-51 Mm |
---|---|---|---|
Quantity Of Dies | 10 Sets | Accuracy | 0.01 Mm |
System Pressure | 30mpa | Motor Power | 3.6kw |
Voltage | 12v/24v(optional) | Crimping Force | 600t |
HIGH LIGHT | Car 12V Hydraulic Hose Crimper, High Configuration 12V Hydraulic Hose Crimper, 24V Hose Crimping Machine | ||
High Light | 51cz 12V Hose Crimper,12V Hose Crimper high pressure,6mm portable hydraulic hose crimping machine |
crimping range | 6-51 mm | |
---|---|---|
quantity of dies | 10 sets | |
accuracy | 0.01 mm | |
output volume of pump | 4L | |
system pressure | 30mpa | |
motor power | 3.6kw | |
voltage | 12v/24v(optional) | |
crimping force | 600 t | |
work efficiency | 200 pcs/h | |
maximum open diameter | 114 mm | |
the max open tolerance | 30 ±mm | |
machine dimension | 650*600*600 mm | |
package dimension | 750*700*700 mm | |
net weight | 170 kg | |
gross weight | 180 kg | |
24V Mobile Van High Pressure Hydraulic Hose Crimper 51CZ Portable
DESCRIPTION
FY-51CZ hose crimping machine
Work Outdoor 2" 12V 24V DC hose fitting crimping machine
Hose crimping machine mainly by withholding mechanism, motor, gear pumps, control valves and tank components. Suitable for mechanical engineering in the high-pressure hose assembly with hold processing, but also with hold two-way elbow, elbow and large shaped head. Hose crimping machine is a metal fitting through the hydraulic machinery and the corresponding mold with a high pressure hose withhold closely together to prepare a high-pressure hose and fluid connectors, referred to as high-pressure hose assembly. High-pressure hose assemblies are widely used in oil, coal, aerospace, construction machinery, agricultural machinery and other industries etc.
THE MACHINE'S EXCELLENT FEATURES:
► Good quality and hot selling
► Use the 12V/24V battery as a power, crimping force can be reach 2800 KN
► The stable quality crimping performance find expression in high pressure
► The most popular applications for these suitable are in repair shop and industrial maintenance unit
TECHNICAL DATA
Model | FY-51CZ Pipe Crimping Machine |
Crimping Range | 6-51(mm) |
Crimping Force | 600(T) |
Hose Size | 1/4-2(inch) |
Max. Opening | 114(mm) |
Die Sets | 10 |
output volume of pump
|
4L |
System Pressure | 30(Mpa) |
Accuracy | 0.01(mm) |
the max open tolerance
|
30 ±mm
|
Standard Voltage | 12V/24(V) |
Motor Power | 3.6(KW) |
Length | 650(mm) |
Width | 600(mm) |
Height | 600(mm) |
Weight | 170(KG) |
NOTE
• " * " for non standard die sets
• Customized die sets with different shape size ia available
• Voltage 12V/24V is available
OPTIONAL
• Quick Change Tool
• Quick Change Die Set Rack
• Car installing unit
► FORGED CYLINDER
One piece structure, prevent oil leackage problem, save oil transfer time, increase productivity
► MICROMETER
FY51CZ is with high accuracy dial, 0.01mm.
► DIE SET REFERENCE SHEET
This sheet tells you how to choose proper die set for different crimping size
► WIDE USAGE
FY-51CZ Crimping machine can be used in a mobile van which can supply 12V/24V power.
For high pressure oil rubber hose assmbly crimping, low pressure water or air hose pressing, steel tube
swaging, wire rope pressing, lock device making, etc.
