Portable 12V Hose Crimper 24v Hydraulic Crimping Machine 4 Layers 51cz
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Reinforcement | 1-4 Layers Wire | Crimping Range | 6-51 Mm |
|---|---|---|---|
| Quantity Of Dies | 10 Sets | Accuracy | 0.01 Mm |
| System Pressure | 30mpa | Motor Power | 3.6kw |
| Voltage | 12v/24v(optional) | Crimping Force | 600t |
| HIGH LIGHT | Car 12V Hydraulic Hose Crimper, High Configuration 12V Hydraulic Hose Crimper, 24V Hose Crimping Machine | ||
| High Light | portable 12V Hose Crimper,24v portable hydraulic crimping machine,portable hydraulic crimping machine 4 layers |
||
You can tick the products you need and communicate with us in the message board.
| crimping range | 6-51 mm | |
|---|---|---|
| quantity of dies | 10 sets | |
| accuracy | 0.01 mm | |
| output volume of pump | 4L | |
| system pressure | 30mpa | |
| motor power | 3.6kw | |
| voltage | 12v/24v(optional) | |
| crimping force | 600 t | |
| work efficiency | 200 pcs/h | |
| maximum open diameter | 114 mm | |
| the max open tolerance | 30 ±mm | |
| machine dimension | 650*600*600 mm | |
| package dimension | 750*700*700 mm | |
| net weight | 170 kg | |
| gross weight | 180 kg | |
Product Description

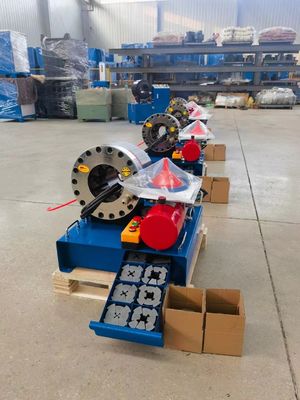

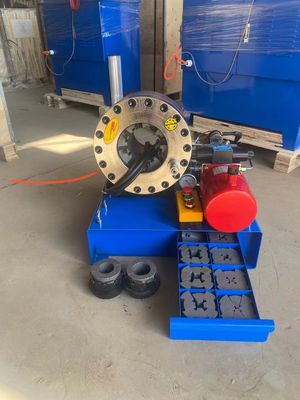

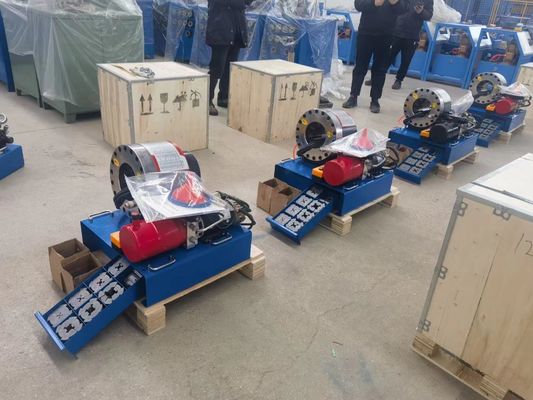

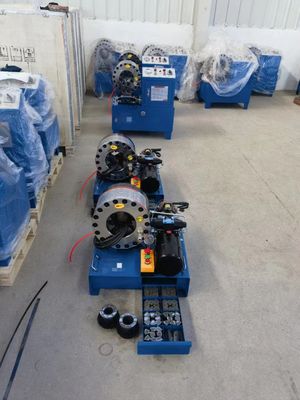

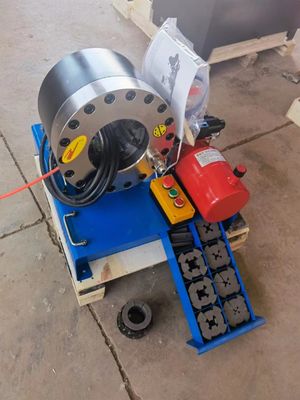

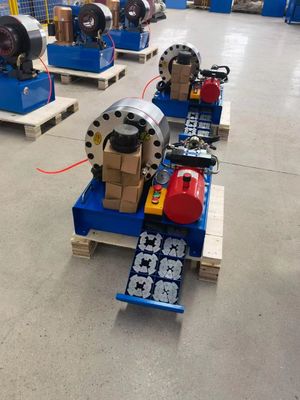

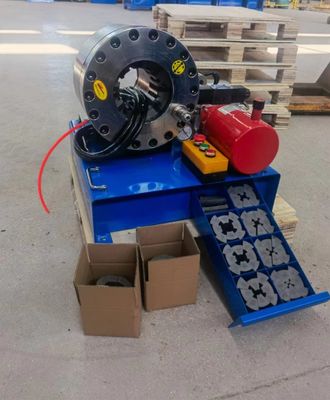

24V HOSE CRIMPING MACHINE 51CZ Portable
DESCRIPTION
FY-51CZ hose crimping machine
• Ergonomic micrometer
•Radial die movement
•High crimping force
•Electronic control and semiautomatic opening
•Cylinder protection
•Easy front access for elbow fittings
•Energy savings
THE HOSE CRIMPING MACHINE'S ADVANTAGES
► Good quality and hot selling
► Use the 12V/24V battery as a power, crimping force can be reach 2800 KN
► The stable quality crimping performance find expression in high pressure
► The most popular applications for these suitable are in repair shop and industrial maintenance unit
TECHNICAL DATA
| Model | FY-51CZ Pipe Crimping Machine |
| Crimping Range | 6-51(mm) |
| Crimping Force | 600(T) |
| Hose Size | 1/4-2(inch) |
| Max. Opening | 114(mm) |
| Die Sets | 10 |
|
output volume of pump
|
4L |
| System Pressure | 30(Mpa) |
| Accuracy | 0.01(mm) |
|
the max open tolerance
|
30 ±mm
|
| Standard Voltage | 12V/24(V) |
| Motor Power | 3.6(KW) |
| Length | 650(mm) |
| Width | 600(mm) |
| Height | 600(mm) |
| Weight | 170(KG) |
NOTE
• " * " for non standard die sets
• Customized die sets with different shape size ia available
• Voltage 12V/24V is available
OPTIONAL
• Quick Change Tool
• Quick Change Die Set Rack
• Car installing unit
► FORGED CYLINDER
One piece structure, prevent oil leackage problem, save oil transfer time, increase productivity
► MICROMETER
FY51CZ is with high accuracy dial, 0.01mm.
► DIE SET REFERENCE SHEET
This sheet tells you how to choose proper die set for different crimping size
► WIDE USAGE
FY-51CZ Crimping machine can be used in a mobile van which can supply 12V/24V power.
For high pressure oil rubber hose assmbly crimping, low pressure water or air hose pressing, steel tube
swaging, wire rope pressing, lock device making, etc.
