220v-415v 2 INCH BIG POWERFUL HOSE CRIMPING MACHINE hydraulic hose crimping machine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | 220V/240V/380V/415V(Optional) | Gross Weight | 280kgs |
|---|---|---|---|
| Net Weight | 265kg | Power(w) | 3KW/4KW |
| Dimension(l*w*h) | 690*500*840 Mm | Package Dimension | 790*600*940 Mm |
| Warranty | 1 Year | Condition | New |
| After-sales Service Provided | Video Technical Support,Online Support | Crimping Force | 600Ton |
| Product Name | CE Approved 6-51mm High Pressure Hydraulic Hose Crimping Machine | Crimping Range | 6-51mm |
| Color | Blue,blue Or Customize | Application | Crimp Hose |
| Free Dies | 10sets | System Pressure | 31.5MPA |
| Output Volume Of Pump | 2.5L/5L/10L | ||
| High Light | 2 Inch DX68 Hose Crimping Machine, Excavator Repair DX68 Hose Crimping Machine, 2 Inch Hose Crimping Machine | ||
You can tick the products you need and communicate with us in the message board.
| crimping range | 6-51 mm | |
|---|---|---|
| quantity of dies | 10 sets | |
| accuracy | 0.01 mm | |
| output volume of pump | 2.5L/5L/10L | |
| system pressure | 31.5mpa | |
| motor power | 3kw/4kw | |
| voltage | 220v/240v/380v/415v (optional) | |
| crimping force | 600 t | |
| work efficiency | 200 pcs/h | |
| maximum open diameter | 114 mm | |
| the max open tolerance | 30 ±mm | |
| machine dimension | 690*500*840 mm | |
| package dimension | 790*600*940 mm | |
| net weight | 245 kg | |
| gross weight | 260 kg |
Product Description
220v-415v 2 INCH BIG POWERFUL HOSE CRIMPING MACHINE
OUR FY-DX68 DESCRIPTION
Take out the crimped hose assembly and use a vernier caliper to check the outer diameter of the crimped joint jacket. If it does not match the parameter table, fine-tune the micrometer scale until the crimping of the next hose meets the requirements.

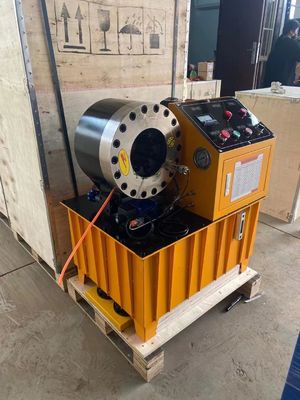

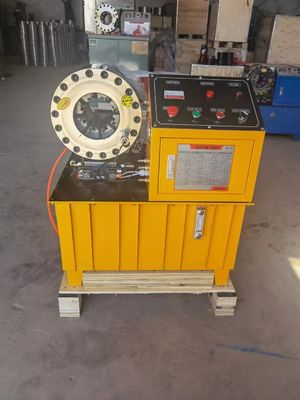

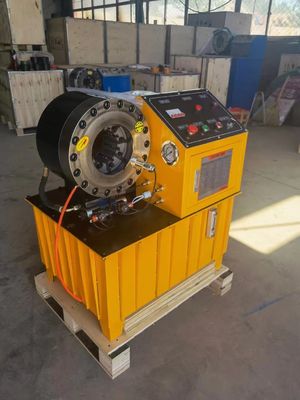

FY-DX68 is a hot sale domestic design hose crimping machine based on DX68 series. It provide 600T crimping force, can be worked automatically or manually depends on different need. The hose crimping machine is offered with wheels, easy for move. With a foot pedal can make the hand free during crimping.
MAIN FEATURES
1. Forged crimping clylinder, high hardness;
2. Multifunctional operate panel, two operate mode;
3. Pressure Gauge, system shown clearly during crimping;
4. Foot pedal as standard to make hands free;
5. Working light to make crimping work more clear.
TECHNICAL DATA
| Model | FY-DX68 Hose Crimping Machine |
| Crimping Range | 6-51(mm) |
| Crimping Force | 600(T) |
| Hose Size | 1/4-2(inch) |
| Max. Opening | 30mm |
| Die Sets | 10 |
|
Maximum Open Diameter |
114MM |
| System Pressure | 31.5(Mpa) |
| Accuracy | 0.01(mm) |
|
Work Efficiency |
200 pcs/h |
| Standard Voltage | 220(V)/380(V) |
| Motor Power | 3(KW)/4(KW0 |
| Length | 730(mm) |
| Width | 480(mm) |
| Height | 740(mm) |
| Weight | 245(KG) |
NOTE
- for non standard die sets;
- Customized die sets are available;
- Special voltage 220V, 240V, 380V,415V are availbale;
OPTIONAL
- Quick Change Tool
- Quick Change Die Set Rack;

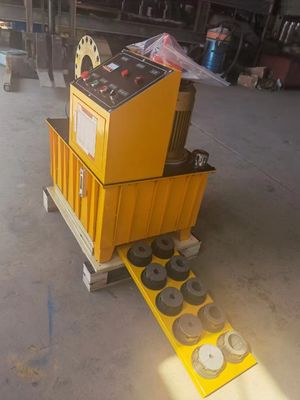

► DIE SETS WITH HIGH HARDNESS
10 sets dies for hose from 6mm to 51mm, hardness 59-63HRC
