| Brand Name: | FY |
| Model Number: | FY-51CZ |
| MOQ: | 1 set |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 sets per month |

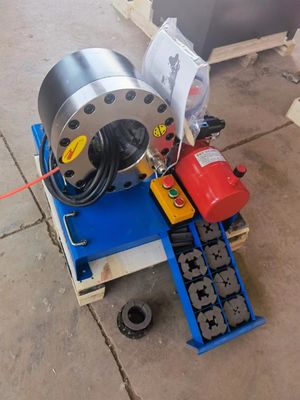

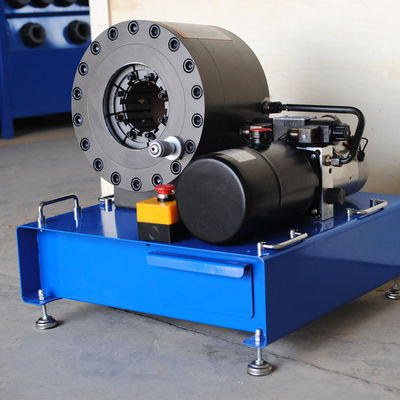

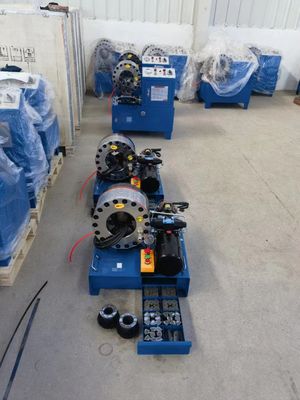

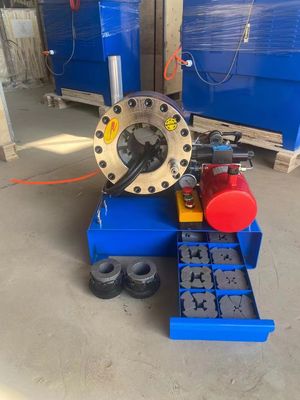

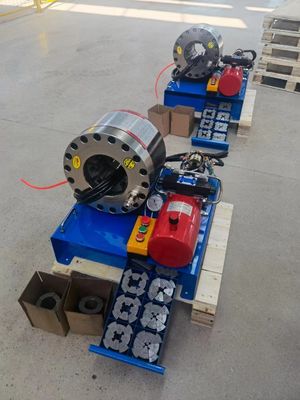

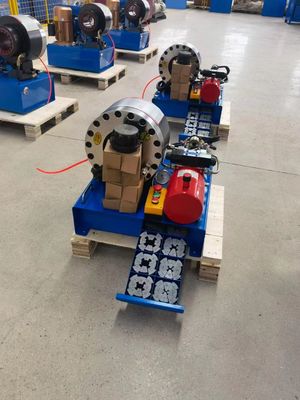

hot sale crimp 2 inch 4sp high pressure hydraulic hose nut crimping machine 1 or 2 hose crimping machine
DESCRIPTION
FY-51CZ hose crimping machine have good quality alloy steel material and particular hear-treatment technique are used in order to ensure the permanent mechanical accuracy and life period of crimping machine. The life period of crimping machine has business with material, heat-treatment, mechanical processing, assembly and reasonable structure.
MOBILE CAR HOSE CRIMPING MACHINE'S ADVANTAGES
► Good quality and hot selling
► Use the 12V/24V battery as a power, crimping force can be reach 2800 KN
► The stable quality crimping performance find expression in high pressure
► The most popular applications for these suitable are in repair shop and industrial maintenance unit
TECHNICAL DATA
| Model | FY-51CZ Pipe Crimping Machine |
| Crimping Range | 6-51(mm) |
| Crimping Force | 600(T) |
| Hose Size | 1/4-2(inch) |
| Max. Opening | 114(mm) |
| Die Sets | 10 |
|
output volume of pump
|
4L |
| System Pressure | 30(Mpa) |
| Accuracy | 0.01(mm) |
|
the max open tolerance
|
30 ±mm
|
| Standard Voltage | 12V/24(V) |
| Motor Power | 3.6(KW) |
| Length | 650(mm) |
| Width | 600(mm) |
| Height | 600(mm) |
| Weight | 170(KG) |
NOTE
• " * " for non standard die sets
• Customized die sets with different shape size ia available
• Voltage 12V/24V is available
OPTIONAL
• Quick Change Tool
• Quick Change Die Set Rack
• Car installing unit
► FORGED CYLINDER
One piece structure, prevent oil leackage problem, save oil transfer time, increase productivity
► MICROMETER
FY51CZ is with high accuracy dial, 0.01mm.
► DIE SET REFERENCE SHEET
This sheet tells you how to choose proper die set for different crimping size
► WIDE USAGE
FY-51CZ Crimping machine can be used in a mobile van which can supply 12V/24V power.
For high pressure oil rubber hose assmbly crimping, low pressure water or air hose pressing, steel tube
swaging, wire rope pressing, lock device making, etc.
