| Brand Name: | FY |
| Model Number: | FY-51WS |
| MOQ: | 1 set |
| Price: | USD$ 1500/1400/1300/1200 |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 300 sets per month |
THE DESCRIPTION OF OUR HOSE CRIMPING MACHINE
Regularly replace the hydraulic oil and filter. Hydraulic oil contains a variety of additives, these additives can prevent oil deterioration. However, it will lose its effectiveness after using it for a period of time. Therefore, the oil should be changed regularly to ensure that the additives are effective. The crimping machine filter can only absorb a limited number of dirt particles and other impurities from the oil.

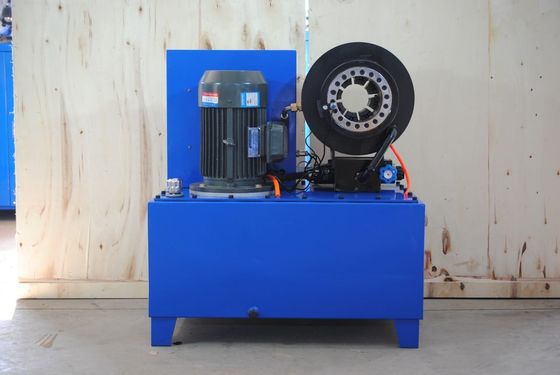

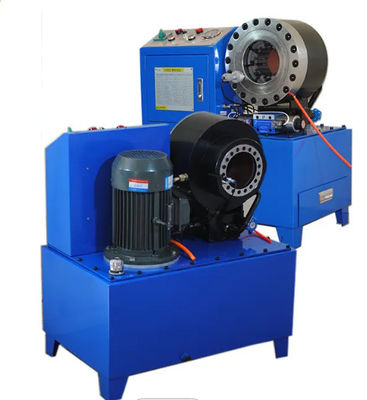

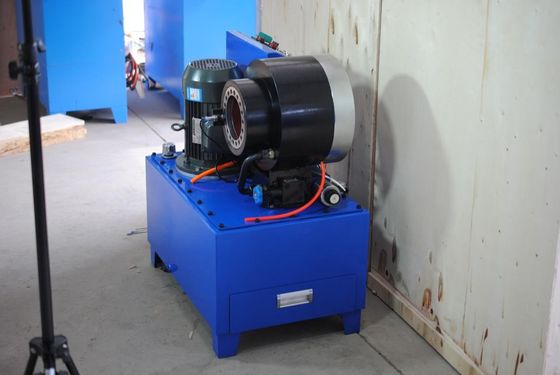

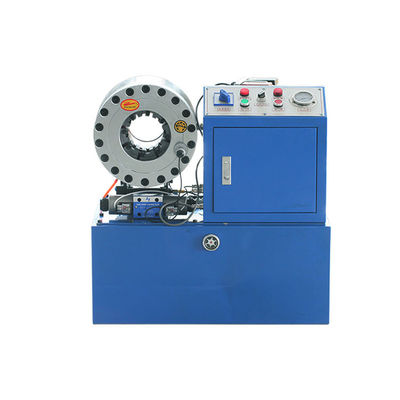

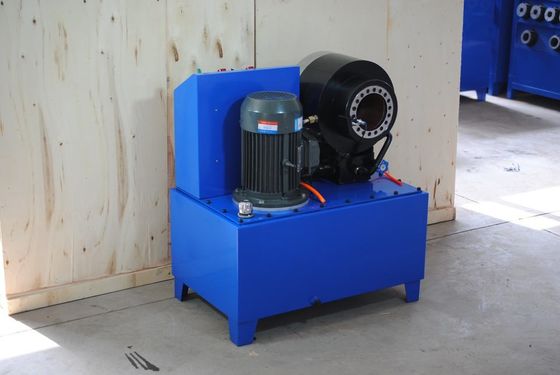

FY-51WS is a hot sale domestic design hose crimping machine based on DX68 series. It provide 600T crimping force, can be worked automatically or manually depends on different need. The hose crimping machine is offered with wheels, easy for move. With a foot pedal can make the hand free during crimping.
MAIN FEATURES
1. Forged crimping clylinder, high hardness;
2. Multifunctional operate panel, two operate mode;
3. Pressure Gauge, system shown clearly during crimping;
4. Foot pedal as standard to make hands free;
5. Working light to make crimping work more clear.
TECHNICAL DATA
| Model | FY-51WS Hose Crimping Machine |
| Crimping Range | 6-51(mm) |
| Crimping Force | 600(T) |
| Hose Size | 1/4-2(inch) |
| Max. Opening | 30mm |
| Die Sets | 10 |
|
Maximum Open Diameter |
114MM |
| System Pressure | 31.5(Mpa) |
| Accuracy | 0.01(mm) |
|
Work Efficiency |
200 pcs/h |
| Standard Voltage | 220(V)/380(V) |
| Motor Power | 3(KW)/4(KW0 |
| Length | 730(mm) |
| Width | 480(mm) |
| Height | 740(mm) |
| Weight | 245(KG) |
NOTE
- for non standard die sets;
- Customized die sets are available;
- Special voltage 220V, 240V, 380V,415V are availbale;
OPTIONAL
- Quick Change Tool
- Quick Change Die Set Rack;

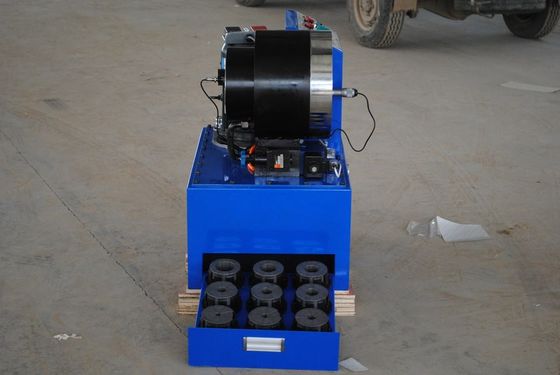

► DIE SETS WITH HIGH HARDNESS
10 sets dies for hose from 6mm to 51mm, hardness 59-63HRC
