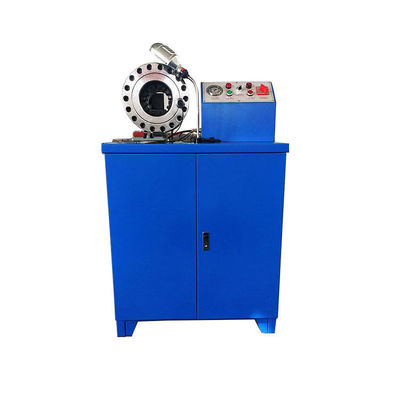

6-51mm Rubber Hose Crimping Machine 3kw AC Hose Crimper

  • 6-51mm Rubber Hose Crimping Machine 3kw AC Hose Crimper
  • 6-51mm Rubber Hose Crimping Machine 3kw AC Hose Crimper
  • 6-51mm Rubber Hose Crimping Machine 3kw AC Hose Crimper
  • 6-51mm Rubber Hose Crimping Machine 3kw AC Hose Crimper
  • 6-51mm Rubber Hose Crimping Machine 3kw AC Hose Crimper
  • 6-51mm Rubber Hose Crimping Machine 3kw AC Hose Crimper
  • 6-51mm Rubber Hose Crimping Machine 3kw AC Hose Crimper
Place of Origin Shanghai,China
Brand Name FY
Certification CE
Model Number FY-51BY
Minimum Order Quantity 1 set
Price USD$1600/1500/1400/1300
Packaging Details wooden box
Delivery Time 2-5 working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 300 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Weight 310KG Condition New
Dimension(l*w*h) 860*640*1300MM Warranty 1 Year
After-sales Service Provided Video Technical Support,Online Support Voltage 220v/240v/380v/415v(optional)
Power(w) 3KW Crimping Force 600T
Color Blue Or Customize Crimping Range 6-51mm
Product Name Hydraulic Hose Crimping Machine,ce CE Approved 6-51mm High Pressure Hydraulic Hose Crimping Machine Application Crimp Hose,rubber Hose Crimping
Free Dies 10sets Rated Pressure 31.5MPA
Keywords Hydraulic Hose Crimping Machine, Vertical Rubber Hose Crimping Machine, 2 Inch Rubber Hose Crimping Machine,
High Light

6mm Rubber Hose Crimping Machine

,

51mm Rubber Hose Crimping Machine

,

3kw ac hose crimper
You can tick the products you need and communicate with us in the message board.
crimping range 6-51 mm
quantity of dies 10 sets
accuracy 0.01 mm
output volume of pump 2.5L/5L/10L
system pressure 31.5mpa
motor power 3kw
voltage 220v/240v/380v/415v (optional)
crimping force 600 t
work efficiency 200 pcs/h
maximum open diameter 114 mm
the max open tolerance 30 ±mm
machine dimension 860*640*1300 mm
package dimension 900*685*1410 mm
net weight 310 kg
gross weight 326 kg
Leave a Message
crimping range 6-51 mm
Product Description

hydraulic hose press machine/ hose crimping machine/hose crimper

DESCRIPTION

Calculate the outer diameter of the crimped tubing, install the corresponding crimping die, and fine-tune to the corresponding position.FY-51BY is a the third generation among the domestic types. It provide 600T crimping force, can be worked automatically or manually depends on different need. Foot pedal can make the hand free during crimping.



OUR MACHINE'S MAIN ADVANTAGES

1. Forged crimping clylinder, high hardness;

2. Multifunctional operate panel, easy to change between automatic and manual;

3. Pressure Gauge, system shown clearly during crimping;

4. Foot pedal as standard to make hands free;

5. Working light to make crimping work more clear.

6. Side die set install design, more covenient.

crimping range/skiving range
6-51mm(1/4''-2''inner diameter of hose)
quantity of dies
10 sets
item diesNo. of
length 60mm(15,19,23,26)
Length 70mm(31,36,41)
Length 80mm(47,55,60)
accuracy
0.01mm
output volume of pump
2.5L/5L/10L(Optional)
system pressure
26Mpa/31.5Mpa(Optional)
motor power
3kw/4kw 1,2,3 phase (Optional)
voltage
220V/380V/415V(Customizable) 50/60Hz
crimping force
500T
work efficiency
200pcs/h
maximum open diameter
114mm
the max open tolerance
±30mm
package dimension
900*680*1450mm
machine dimension
860*640*1300mm
Net weight
310kg
Gross weight
320kg

TECHNICAL DATA

Model FY-51BY Hose Crimping Machine
Crimping Range 6-51(mm)
Crimping Force 600(T)
Hose Size 1/4-2(inch)
Max. Opening 30mm
Die Sets 10

Work efficiency

 200PCS/H
System Pressure 31.5(Mpa)
Accuracy 0.01(mm)

Maximum Open Diameter

 114MM
Standard Voltage 220v/240v/380v/415v(optional)
Motor Power 3(KW)
Length 860(mm)
Width 640(mm)
Height 1300(mm)
Weight 310(KG)

6-51mm Rubber Hose Crimping Machine 3kw AC Hose Crimper 0

6-51mm Rubber Hose Crimping Machine 3kw AC Hose Crimper 1



NOTE

- For non standard die sets;

- Customized die sets are available;

- Special voltage 220v/240v/380v/415v(optional) are availbale;



OPTIONAL

- Quick Change Tool

- UC control



► MULTI FUNCTIONAL OPERATE PANEL

Human design, two operate mode, free change

6-51mm Rubber Hose Crimping Machine 3kw AC Hose Crimper 2



► DIE SETS

6mm to 51mm die sets for hose from 1/4'' to 2'', die sets with high hardness, long service time

6-51mm Rubber Hose Crimping Machine 3kw AC Hose Crimper 3



► FOOT PEDAL

Free hands for big hose, more convenient; Double usage, both closing and opening function

6-51mm Rubber Hose Crimping Machine 3kw AC Hose Crimper 4



► OEM SERVICE

For different color, structure or die sets.

6-51mm Rubber Hose Crimping Machine 3kw AC Hose Crimper 5



► WIDE APPLICATION

FY51BY is a 2 Inch hose crimping machine, which is capable of crimping hydrualic hose from 1/4'' to 2'', it can be used for quick jointing of material, like high pressure rubber oil hose, low pressure water or air pipes, cables, wires or ropes.

6-51mm Rubber Hose Crimping Machine 3kw AC Hose Crimper 6

6-51mm Rubber Hose Crimping Machine 3kw AC Hose Crimper 7

6-51mm Rubber Hose Crimping Machine 3kw AC Hose Crimper 8

6-51mm Rubber Hose Crimping Machine 3kw AC Hose Crimper 9



6-51mm Rubber Hose Crimping Machine 3kw AC Hose Crimper 10
