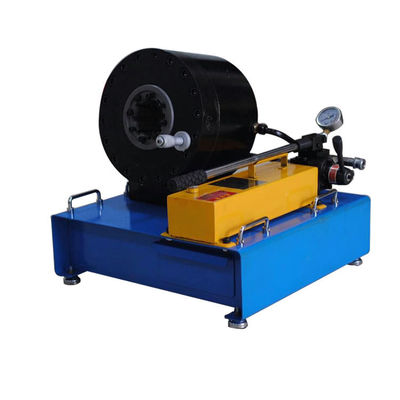

6-51mm Manual Hydraulic Hose Crimping Machine High Pressure 600t In China

Place of Origin Shanghai,China
Brand Name FY
Certification CE
Model Number FY-51CSD
Minimum Order Quantity 1 set
Price USD$ 1300
Packaging Details export standard wooden box
Delivery Time 2-5 working days
Payment Terms L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability 300 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Weight 200KG Condition New
Dimension(l*w*h) 550*670*555MM Warranty 1 Year
After-sales Service Provided Video Technical Support,Online Support Power(w) 0KW
Voltage 0V Crimping Force 600T
Color Blue Or Custom Crimping Range 1/4"to2'',1/4''-2''
Produ Ct Name CE Approved 6-51mm Hydraulic Hose Crimping Machine Application Crimp Hose
Free Dies 10sets Rated Pressure 70 MPA
Keywords Manual Crimping Machine,hydraulic Hose Crimping Machine
High Light

51mm manual hydraulic hose crimping machine

,

6mm manual hydraulic hose crimping machine

,

high pressure hose machine 600t

You can tick the products you need and communicate with us in the message board.
crimping range 6-51 mm
quantity of dies 10 sets
accuracy 0.01 mm
output volume of pump 1L
system pressure 70mpa
motor power 0kw
voltage 0v
crimping force 600 t
work efficiency 10 pcs/h
maximum open diameter 114 mm
the max open tolerance 30 ±mm
machine dimension 550*670*555 mm
package dimension 650*770*750 mm
net weight 200 kg
gross weight 210 kg
Leave a Message
crimping range 6-51 mm
Product Description

High efficiency manual high pressure hydraulic pipe crimping tool pressing machine in china


OUR FY-51CSD EQUIPMENT'S DESCRIPTION

After the work is completed, the eight mold bases must be opened to the maximum extent, so that the spring can be in an open state and the spring can be maintained, and the oil cylinder is also in a pressure relief state to extend the life of the oil seal.FY-51CSD is a portable hose crimping machine. It is designed for field service when repairs must be made on-site. It is simple and striaght-forward in construction, easy to operate and highly reliable. The light weight allow equipment to be easily carried to any location. The most popular applications for this portable hose crimping machine is in repair shops and in industrial maintenance units.



ADVANTAGES

1. Small size light weight, can be take to any place;

2. World famous hydraulic pump,

3. High accuracy,

4. High efficient and top accurate crimping with Finn Power Dial,

5. Stable performance even after years of service.

Crimping Range
6-51mm(1/4''-2''inner diameter of hose)
The Largest Crimping Pressure
600T
accurcy
0.01mm
Dimension
0.45m*0.77m*0.7m(0.45 m³)
Maximum open diameter
114mm
dies
10 sets
Item No.of dies
length 60mm(15,19,23,26);Length 70mm(31,36,41);Length 80mm(47)
Output volume of pump
1L
Rated pressure
70Mpa
Work efficiency
10pcs/h
Weight
150kg
packing dimension
650*770*750mm





6-51mm Manual Hydraulic Hose Crimping Machine High Pressure 600t In China 0




TECHNICAL DATA

Model FY-51CSD Manual Crimper
Crimping Range 6-51(mm)
Crimping Force 600(T)
Hose Size 1/4-2(inch)
Max. Opening 30(mm)
Die Sets 10
Maximum Open Diameter
114MM
System Pressure 70(Mpa)
Accuracy 0.01(mm)
Work Efficiency
10 PCS/H
Standard Voltage Manual Pump/0 V
Motor Power Manual Pump/0 KW
Length 550(mm)
Width 670(mm)
Height 555(mm)
Weight

200(KG)

6-51mm Manual Hydraulic Hose Crimping Machine High Pressure 600t In China 1

6-51mm Manual Hydraulic Hose Crimping Machine High Pressure 600t In China 2



6-51mm Manual Hydraulic Hose Crimping Machine High Pressure 600t In China 3

NOTE

- " * " for non standard die sets;

- Customized die sets are available;

- Max. opening is the stroke between die sets fully closed and fully opened.



OPTIONAL

- Quick Change Tool;

- Quick Change Die Set Rack;

- UC control;

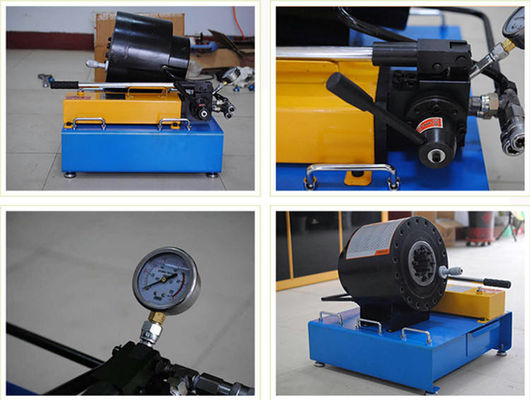

► CRIMPING DIAL

High accuracy and stability, long service time

6-51mm Manual Hydraulic Hose Crimping Machine High Pressure 600t In China 4

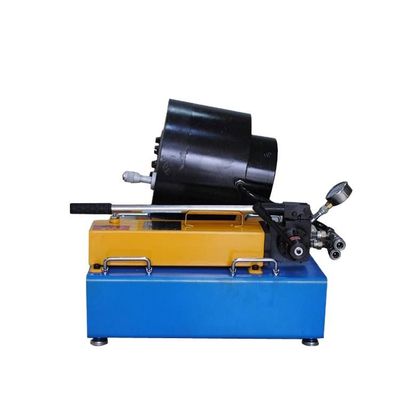

► SMALL DIMENSION

FY-51CSD is 200KG net weight, It is small dimension can be take to any place that need

6-51mm Manual Hydraulic Hose Crimping Machine High Pressure 600t In China 5

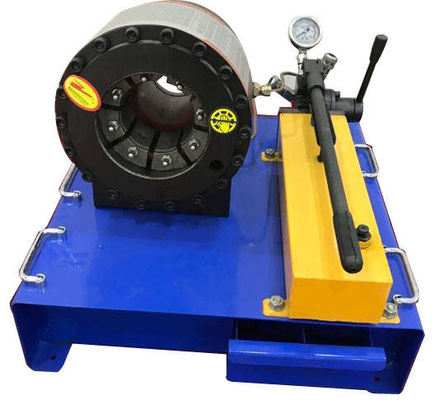

► QUICK DIE SETS INSTALL

FY-51CSD enables quick die sets changing and installing to save time and improve productivity.

6-51mm Manual Hydraulic Hose Crimping Machine High Pressure 600t In China 6



► CUSTOMIZED FY-51CSD

Different machine color or LOGO can be customized.

6-51mm Manual Hydraulic Hose Crimping Machine High Pressure 600t In China 7



► APPLICATION FIELD FOR FY-51CSD

Poratble crimping machine FY-51CSD can be used more flexible for hose crimping. It make on site crimping available when there is no power supplies. With different die sets, it can do different work, like making hydraulic hose assmbly up to 2 Inch, conencting steel tubes, pressing wires and cables, etc.

6-51mm Manual Hydraulic Hose Crimping Machine High Pressure 600t In China 8
