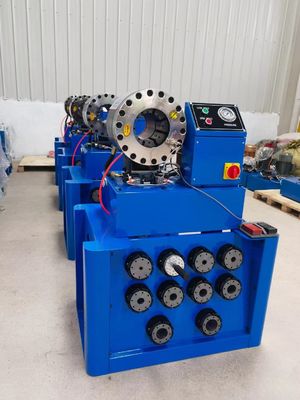

300 Ton Portable Hydraulic Hose Crimper 6-38mm Hydraulic Hose Swager High Pressure Quickly Change Dies
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | 220V/240V/380V/415V(Optional) | Gross Weight | 300kgs |
|---|---|---|---|
| Net Weight | 275kg | Power(w) | 3KW/4KW |
| Dimension(l*w*h) | 950*630*700 Mm | Package Dimension | 1000*680*750 Mm |
| Warranty | 1 Year | Condition | New |
| After-sales Service Provided | Video Technical Support,Online Support | Crimping Force | 300Ton |
| Product Name | CE Approved 6-51mm High Pressure Hydraulic Hose Crimping Machine | Crimping Range | 6-38mm |
| Color | Blue,blue Or Customize | Application | Crimp Hose |
| Free Dies | 8sets | System Pressure | 26MPA/31.5MPA |
| Output Volume Of Pump | 2.5L/5L | HIGH LIGHT | Advanced Hydraulic Pipe Crimping Machine, Dash Control Hydraulic Pipe Crimping Machine, Pipe Crimping Machine |
| High Light | 300 ton Portable Hydraulic Hose Crimper,6mm hydraulic hose swager,38mm hydraulic hose swager |
||
You can tick the products you need and communicate with us in the message board.
| crimping range | 6-38 mm | |
|---|---|---|
| quantity of dies | 8 sets | |
| accuracy | 0.01 mm | |
| output volume of pump | 2.5L/5L/10L | |
| system pressure | 31.5mpa | |
| motor power | 3kw | |
| voltage | 220v/240v/380v/415v (optional) | |
| crimping force | 300 t | |
| work efficiency | 200 pcs/h | |
| maximum open diameter | 104mm | |
| the max open tolerance | 20 ±mm | |
| machine dimension | 950*630*700 mm | |
| package dimension | 1000*680*750 mm | |
| net weight | 275 kg | |
| gross weight | 300 kg |
Product Description
High pressure quickly change dies steel hydraulic rubber pipe hose press swaging clamp assembly crimping machine
DESCRIPTION
Together to prepare a high-pressure hose and fluid connectors, referred to as high-pressure hose assembly. High-pressure hose assemblies are widely used in oil, coal, aerospace, construction machinery, agricultural machinery and other industries etc.
FY-P38 high pressure hose crimper is with crimping ability from 6mm to 38mm (1/4'' to 1.5'') for high pressure hydraulic hose. It is with quick change tool for die sets and die rack, which support a safe place for dies.
MAIN FEATURES
1) Famous Brand valve system, high quality, long using time, low maintenance cost
2) Foot pedal frees the operator's hand for holding big size hydraulic hose
3) Advanced Dash control, multifunction for crimping work
4) Quick change for die sets enable die sets change all at one time
| crimping range | 6-38mm(1/4''-1.5''inner diameter of hose) |
| Rated pressure | 26Mpa/31.5Mpa(Optional) |
| The largest crimping pressure | 300T |
| Rular precision | 0.01mm |
| Output volume of pump | 2.5L/5L(Optional) |
| Net weight | 275kg |
| Work efficiency | 200pcs/h |
| size | 950*630*700 mm |
| dies | 8 sets |
| Item No.of dies | length 60mm(15,19,23,26);Length 70mm(31,36,41);Length 80mm(47,55,60) |
TECHNICAL DATA
| Model | FY-P38 Hose Crimping Machine |
| Crimping Range | 6-38(mm) |
| Crimping Force | 300(T) |
| Hose Size | 1/4-1.5(inch) |
| Max. Opening | 20±mm |
| Die Sets | 8 |
|
Maximum Open Diameter |
104MM |
| System Pressure | 26(Mpa)/31.5(Mpa) |
| Accuracy | 0.01(mm) |
|
Work Efficiency |
200 pcs/h |
| Standard Voltage |
220v/240v/380v/415v(optional) |
| Motor Power | 3(KW)/4(KW) |
| Length | 950(mm) |
| Width | 630(mm) |
| Height | 700(mm) |
| Weight | 275(KG) |
NOTE
- for non standard die sets;
- Customized die sets are available;
- Special voltage 220V, 240V, 380V,415V are availbale;
| crimping range | 6-38mm(1/4''-1.5''inner diameter of hose) |
| Rated pressure | 26Mpa/31.5Mpa(Optional) |
| The largest crimping pressure | 300T |
| Rular precision | 0.01mm |
| Output volume of pump | 2.5L/5L(Optional) |
| Net weight | 275kg |
| Work efficiency | 200pcs/h |
| size | 950*630*700 mm |
| dies | 8 sets |
| Item No.of dies | length 60mm(15,19,23,26);Length 70mm(31,36,41);Length 80mm(47,55,60) |

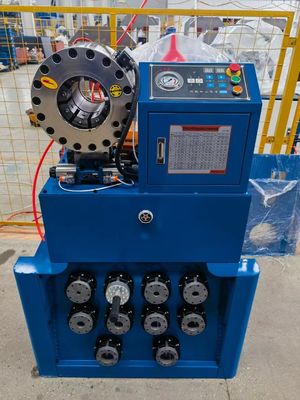

► ADVANCED PLC SYSTEM
Multifucntional control panel with different operation mode
► DIE SETS
8 die sets hardness 59-63HRC, with quick change tool, productivity improve much.
