| Brand Name: | FY |
| Model Number: | FY-QG-38 |
| MOQ: | 1 set |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 sets per month |
Fast speed and high efficiency hydraulic braided rubber hose tube pipe cutting machine
DECRIPTION
hydraulic hose cutting machine for rubber hosehydraulic hose cutting machine for rubber hose
FY-QG-38 is a hose cutting machine which also have the ability to strip hose rubber.
The features of our hydraulic rubber hose cutting machine
1.Easy operating and portable
2.Fast speed and high efficiency
3.Low noise and low maintenance cost
4.High quality and favourable price
ADVANTAGES
1. Movable wheel to make the machine more convenient to move;
2. Human design handle, save opetator power;
3. Scale on the skiving tool, easy to adjust the skiving depth;
4. High quality copper wire aluminium motor, no heat exceed even afetr using for a long time.
TECHNICAL DATA
| Model | FY-QG-38 Hose Cutting/Skiving Machine |
| Hose Size | 1/4''-2'' |
| Motor Power | 2.2kw-3kw |
| Voltage |
100v-415v 50/60hz
|
| Work Efficiency | 1500pcs/h |
|
gross weight
|
65kg |
| Length | 640mm |
| Width | 480mm |
| Height | 480mm |
| Net Weight |
55kg |

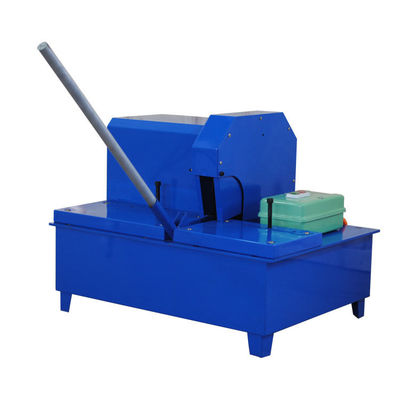

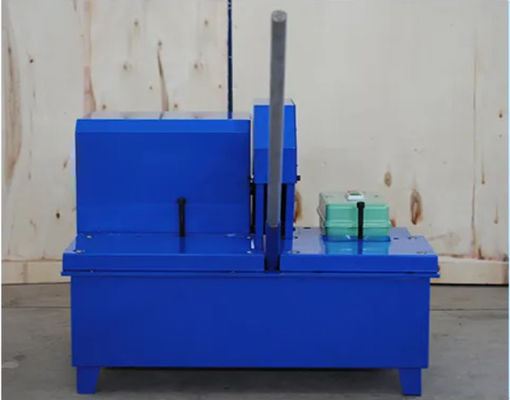

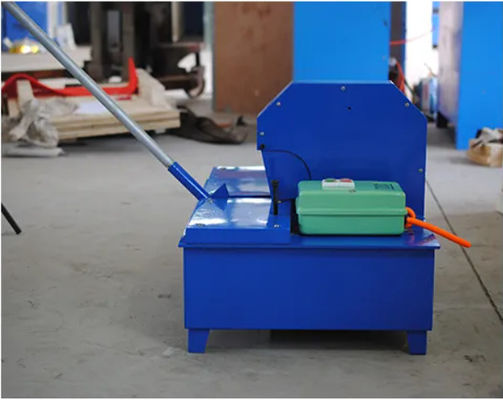

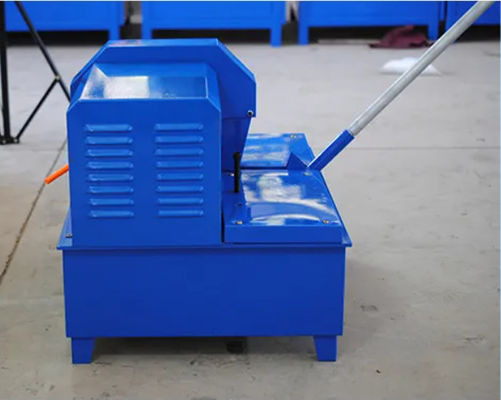

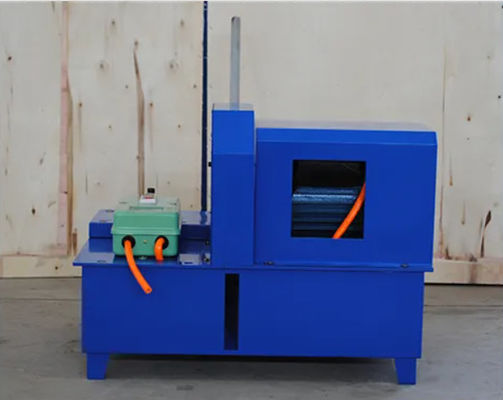

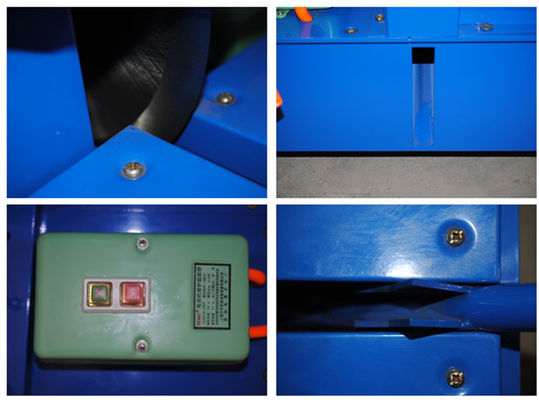

► PICTURES
► APPLICATION
FY-QG-51 is hose cutting machine which also have fucntion of hose rubber stripping. It is an essential device for hose assembly making before crimping. Cutting is to cut the hose to the needed length for hydraulic system connecting, skiving is to strip the inner or out rubber layer, so that the stainless steel braided hose can be connect well with ferrule and fittings.
