| Brand Name: | FanYing |
| Model Number: | FY-51WS-1 |
| MOQ: | 1 set |
| Price: | USD$ 1650 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 SETS PER MONTH |

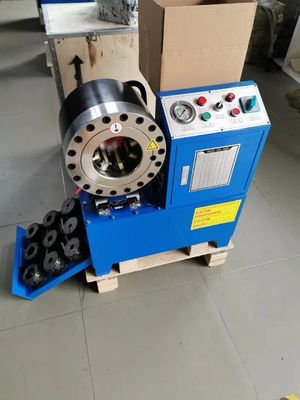

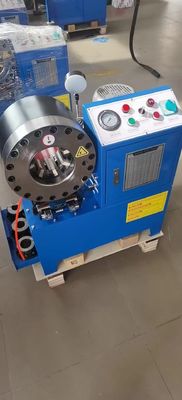

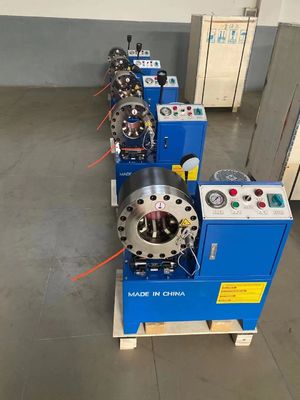

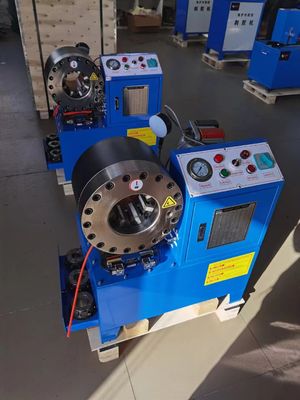

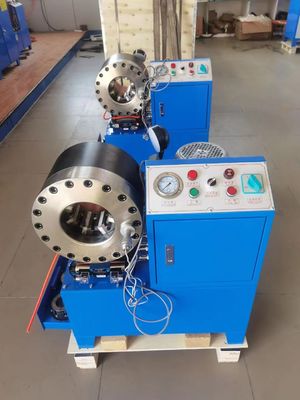

The DX68 Hose Crimping Machine is the perfect solution for all of your crimping needs. This powerful machine offers 220v/240v/380v/415v voltage, 114mm maximum opening, 6-51mm crimping range, 10 sets of dies, and 730*480*740 mm dimensions. It is the perfect choice for any job requiring a reliable and professional Hose Crimper. Whether you need to crimp hoses for industrial purposes, or just need a reliable hose crimper for everyday tasks, the DX68 Hose Crimper is the perfect choice. With its powerful motor, precision crafted design, and 10 sets of dies, you can be sure that you will get the job done quickly and efficiently. Make the DX68 Hose Crimping Machine your go-to choice for all your hose crimping needs.
| crimping range | 6-51 mm |
| quantity of dies | 10 sets |
| accuracy | 0.01 mm |
| output volume of pump | 2.5L/5L/10L |
| system pressure | 31.5mpa |
| motor power | 3kw/4kw |
| voltage | 220v/240v/380v/415v(optional) |
| crimping force | 600 t |
| work efficiency | 200 pcs/h |
| maximum open diameter | 114 mm |
| the max open tolerance | 30 ±mm |
| machine dimension | 730*480*740 mm |
| package dimension | 800*530*870 mm |
| net weight | 245 kg |
| gross weight | 260 kg |
| Name | Parameter |
|---|---|
| Crimping Accuracy | ±0.01mm |
| Crimping Range | 6-51mm |
| Product Name | DX68 Hose Crimping Machine |
| Voltage | 220v/240v/380v/415v |
| Max Opening | 114mm |
| Control System | PLC/Button/CNC |
| Motor Power | 3KW/4KW |
| Crimping Stroke | 50mm |
| Quantity of dies | 10 Sets |
| Oil Pump Pressure | 31.5Mpa |
The DX68 Hose Crimping Machine from FanYing is an ideal solution for all kinds of hose assembly needs. It is designed with a Max Opening of 114mm and operates on Voltage of 220v/240v/380v/415v. The Output Volume of Pump ranges from 2.5L/5L/10L. The Control System is PLC/Button/CNC. It also features a Dimension of 730*480*740 Mm and is made from high-quality materials, making it reliable and durable. This Hose Crimper is perfect for industrial, automotive, and agricultural applications. It is easy to use and can provide consistent and accurate results. The DX68 Hose Crimping Machine from FanYing is a great choice for all your hose assembly needs.
The DX68 Hose Crimping Machine is the perfect choice for hose crimping. It is designed with high quality materials and provides superior crimping accuracy. It has a work efficiency of 200 Pcs/h, a voltage range of 220v/240v/380v/415v, and a max opening of 114mm. It also comes with 10 sets of dies for extra convenience. This machine has a crimping accuracy of ±0.01mm, making it the perfect choice for professional hose crimping.
Technical Support and Service for DX68 Hose Crimping Machine
At XYZ Corporation, we provide comprehensive technical support and service for DX68 Hose Crimping Machine. Our team of highly experienced and knowledgeable technicians are available to answer any questions you may have and provide timely advice and solutions. We also provide on-site service for DX68 Hose Crimping Machine, with our technicians able to diagnose and repair any potential issues.
In addition, we offer a range of after-sales services for DX68 Hose Crimping Machine, such as regular maintenance and repair services, as well as a range of spare parts in case of any malfunctions. Our team is also available to provide training for operators to ensure they are able to operate the machine safely and correctly.
If you require any assistance with DX68 Hose Crimping Machine, please do not hesitate to contact our team. We are always happy to help and provide the best possible service and support.
The DX68 Hose Crimping Machine can be packaged and shipped in a variety of ways. For ground shipping, it can be shipped in a sturdy cardboard box, padded with foam, and secured with packing tape. For air shipping, it can be shipped in a wooden crate, lined with foam and bubble wrap, and secured with reinforced clamps. For international shipping, it can be shipped in a heavy duty container, lined with foam and bubble wrap, and secured with heavy duty straps.
