| Brand Name: | FanYing |
| Model Number: | FY-51WS-1 |
| MOQ: | 1 set |
| Price: | USD$ 1650 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 SETS PER MONTH |

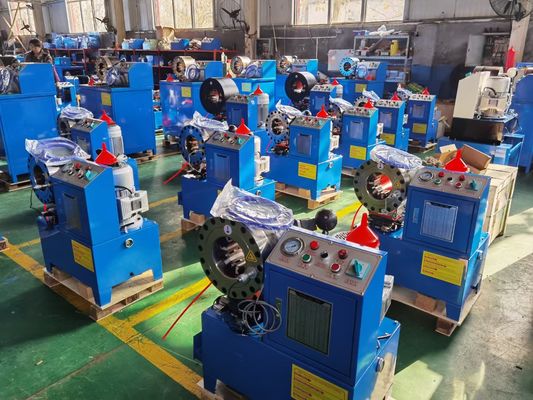

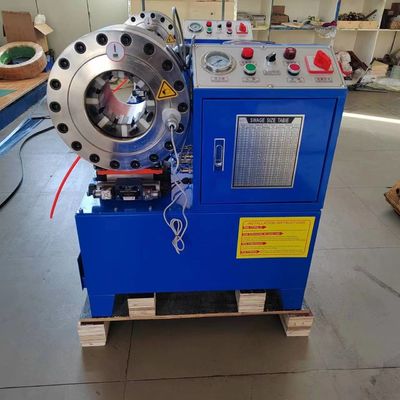

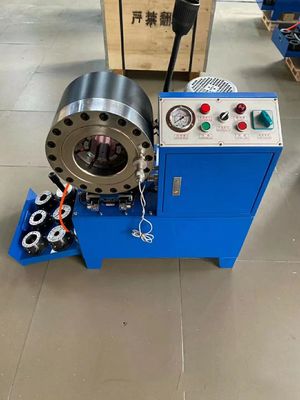

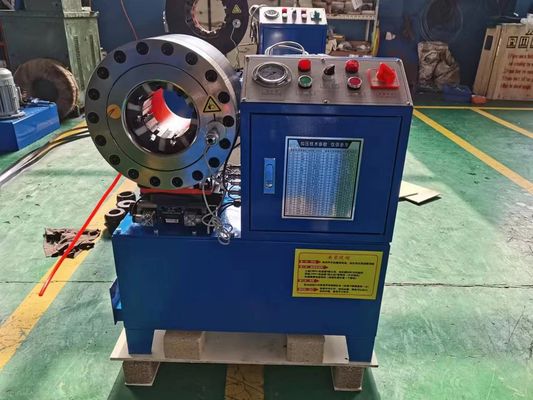

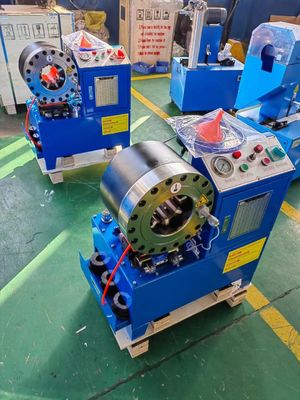

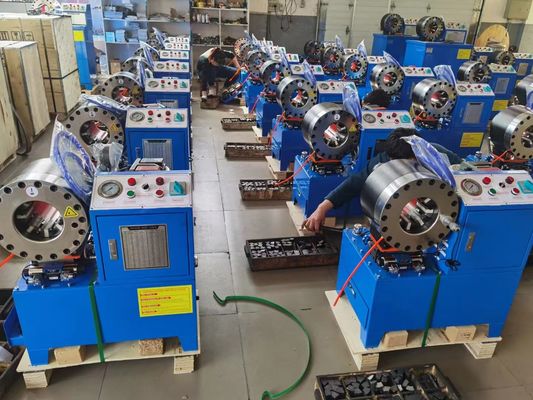

The DX68 hose crimping machine is a professional hose crimper designed to meet the highest standards of quality and performance. This hose crimper is equipped with 10 sets of dies, a crimping force of 600T, an oil pump pressure of 31.5Mpa and a motor power of 3KW/4KW. With its compact design and dimensions of 730*480*740 mm, the DX68 hose crimping machine is perfect for both industrial and commercial applications.
This hose crimper is designed with an intuitive user interface and offers superior accuracy. It is also equipped with advanced safety features to ensure safe operation. The DX68 hose crimping machine is a reliable and durable machine that can handle the toughest crimping applications. With its robust design and superior performance, the DX68 hose crimping machine is the perfect solution for all your hose crimping needs.
| crimping range | 6-51 mm |
| quantity of dies | 10 sets |
| accuracy | 0.01 mm |
| output volume of pump | 2.5L/5L/10L |
| system pressure | 31.5mpa |
| motor power | 3kw/4kw |
| voltage | 220v/240v/380v/415v(optional) |
| crimping force | 600 t |
| work efficiency | 200 pcs/h |
| maximum open diameter | 114 mm |
| the max open tolerance | 30 ±mm |
| machine dimension | 730*480*740 mm |
| package dimension | 800*530*870 mm |
| net weight | 245 kg |
| gross weight | 260 kg |
| Product Name | Parameters |
|---|---|
| DX68 Hose Crimping Machine | Dimension: 730*480*740 Mm |
| Quantity of dies: 10 Sets | |
| Work efficiency: 200 Pcs/h | |
| Weight: 245Kg | |
| Max Opening: 114mm | |
| Output volume of pump: 2.5L/5L/10L | |
| Oil Pump Pressure: 31.5Mpa | |
| Crimping Force: 600T | |
| Crimping Range: 6-51mm |
The DX68 Hose Crimping Machine is a high-performance hydraulic hose crimping machine, produced by FanYing, with a model number of FY-51WS-1. It is made in China, Shanghai, and has a motor power of 3KW/4KW. It has a work efficiency of 200 pieces per hour, and it has a crimping range of 6-51mm. It also has an output volume of pump of 2.5L/5L/10L, and its dimensions are 730*480*740 mm.
The DX68 hose crimping machine is ideal for industrial and commercial applications that require high-quality and precision crimped hoses. It is designed to provide reliable performance and accuracy, while working with a wide range of hose sizes and materials. With its powerful motor, it can easily crimp hoses with a range of 6-51mm in diameter. It is also designed with a large output volume of pump, ranging from 2.5L/5L/10L, which ensures that the crimping process is efficient and accurate.
The DX68 Hose Crimping Machine is a great choice for anyone who requires a durable, reliable, and efficient machine for their crimping needs. It is easy to use and can be used in a variety of applications. With its robust construction and reliable performance, it is perfect for industrial and commercial uses.
DX68 Hose Crimping Machine provides technical support and service to ensure smooth operation and maximum satisfaction. We offer:
DX68 Hose Crimping Machine Packaging and Shipping:
The DX68 Hose Crimping Machine is shipped in a wooden crate with cushioning materials inside to protect the machine during transportation. The crate is secured with metal straps and sealed with plastic wrap to keep out moisture and dust. The machine is also packed with a manual and accessories.
