| Brand Name: | FanYing |
| Model Number: | FY-NBR70/80/90 |
| MOQ: | 1000 pieces |
| Price: | USD$ 0.48 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300000 PIECES PER DAY |

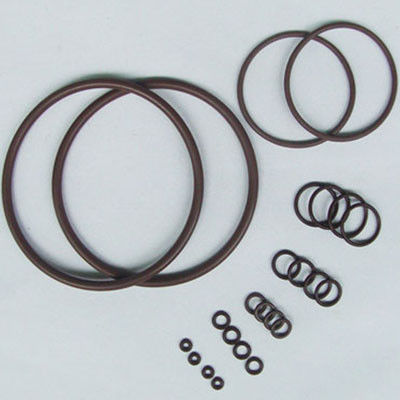

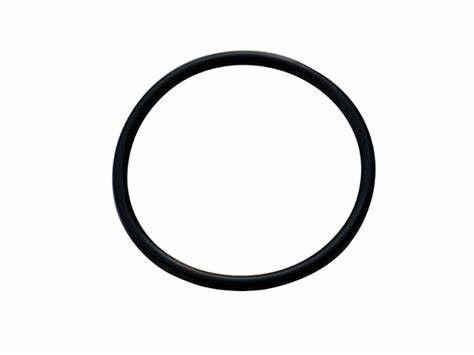

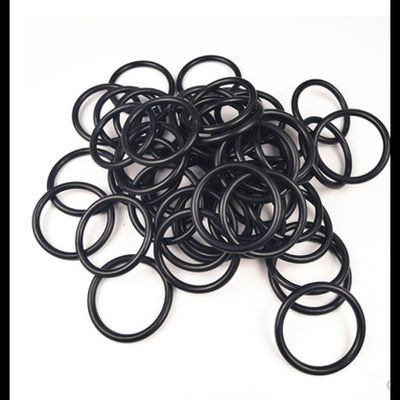

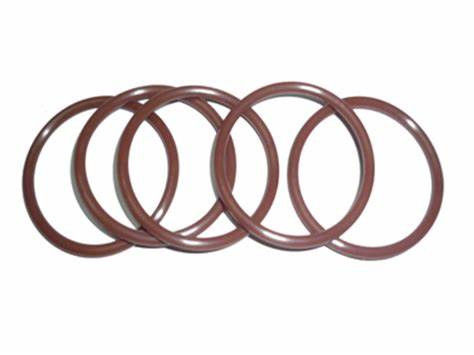

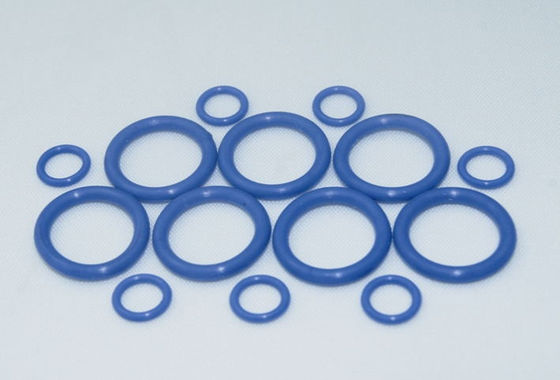

Rubber O Rings, also known as WF rings, FKM WF rings, or WF seals, are essential components used in many industries for sealing and preventing leakage between two joined objects. These rings are circular in shape and made from high-quality rubber material, providing a strong and durable seal.
The Rubber O Rings are available in various sizes, with the size depending on the client's demand. This allows for flexibility in usage and ensures that the rings can fit a wide range of applications. The sizes are categorized as C/s, and can be customized to meet specific requirements.
One of the key features of the Rubber O Rings is their high-temperature resistance. These rings can withstand extreme temperatures, making them suitable for use in industries that deal with high heat, such as automotive, aerospace, and manufacturing. The rings are also resistant to chemicals, oils, and weathering, ensuring long-lasting and reliable performance.
The Rubber O Rings are produced using a compression molding technology, which involves placing uncured rubber material into a heated mold and applying pressure to form the desired shape. This process ensures a tight seal and high tear strength, with a range of 16-30 N/mm. This makes the rings ideal for applications that require high pressure and strong resistance to tearing.
Our Rubber O Rings come with a 12-month warranty, ensuring that our clients receive high-quality products and are satisfied with their performance. We also provide additional processing services, such as mold opening, to meet specific design requirements and provide a customized solution for our clients.
The allowable dimension deviation of NBR O-ring of 70 Shore A is shown in the table below:
|
ID± Tolerance |
W± Tolerance |
||||
| -3 | 0.14 | 120-150 | 1.2 | -1.8 | 0.08 |
| 3-6 | 0.15 | 150-180 | 1.4 | 1.8-2.6 | 0.09 |
| 6-10 | 0.17 | 180-250 | 1.8 | 2.6-3.5 | 0.10 |
| 10-18 | 0.20 | 250-300 | 2.1 | 3.5-5.3 | 0.13 |
| 18-30 | 0.30 | 300-350 | 2.5 | 5.3-7 | 0.15 |
| 30-50 | 0.40 | 350-400 | 2.8 | 7-8 | 0.17 |
| 50-80 | 0.65 | 400-500 | 3.4 | 8-10 | 0.20 |
| 80-100 | 0.85 | 500-650 | 4.3 | 10-15 | 0.25 |
| 100-120 | 1.00 | 650-800 | 6.5 | ||
FanYing's Rubber O Rings, also known as WF-rings or FKM Rubber Seals, are high quality seals designed for various industrial applications. These O rings are available in three models - FY-NBR70, FY-NBR80, and FY-NBR90, each with different levels of hardness and chemical resistance.
FanYing's Rubber O Rings are suitable for various industrial applications, especially those that require resistance to oil and chemicals. These O rings can be used in the following scenarios:
To order FanYing's Rubber O Rings, please provide the following information:
For more information or to request a sample, please contact our sales team at [insert contact information here].
At FanYing, we provide customized services for our Rubber O Rings. Our O Rings are made with high-quality materials such as FKM and FKM, ensuring durability and reliability for your industrial needs.
Our FKM rings, also known as FKM WF rings, are made with a fluorinated rubber material that offers excellent resistance to chemicals, heat, and aging. With a temperature range of -20°C to 204°C, these O Rings are suitable for a wide range of applications.
For more demanding applications, we offer FKM rings with a higher fluorine content, known as FKM GF rings. These O Rings have enhanced chemical resistance and can withstand temperatures up to 260°C.
Our O Rings are available in various sizes, and we can customize the size to meet your specific requirements. We also offer mold opening services to ensure the perfect fit for your equipment.
With a pressure range of up to 5,000 Psi, our Rubber O Rings are suitable for high-pressure applications. Our compression molding technology ensures a tight, leak-proof seal for your equipment.
Trust FanYing for all your Rubber O Rings needs. Contact us today for more information and to request a sample. Freight collect samples are available for your convenience.
