| Brand Name: | FanYing |
| Model Number: | FY-NBR70/80/90 |
| MOQ: | 1000 pieces |
| Price: | USD$ 0.48 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300000 PIECES PER DAY |

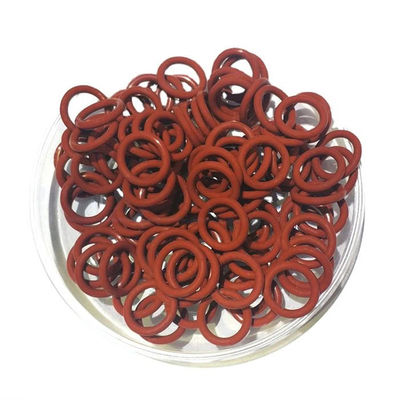

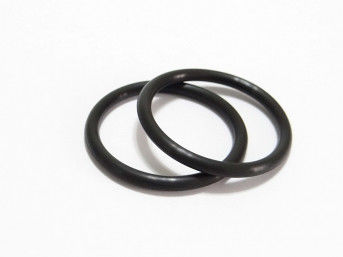

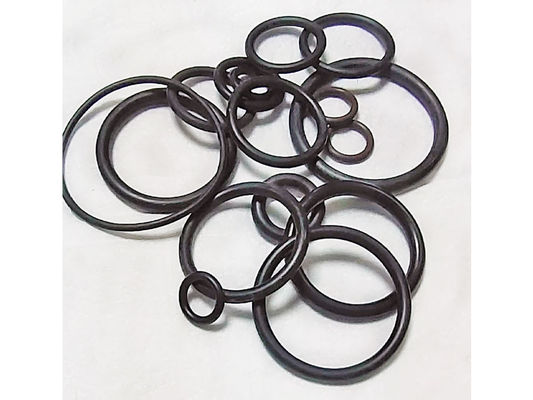

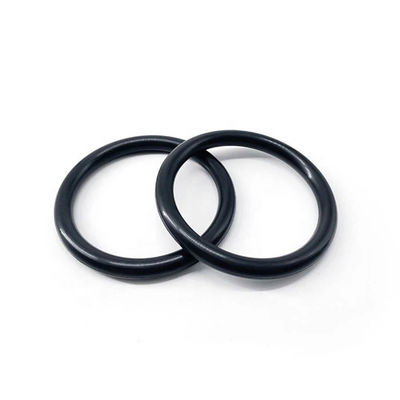

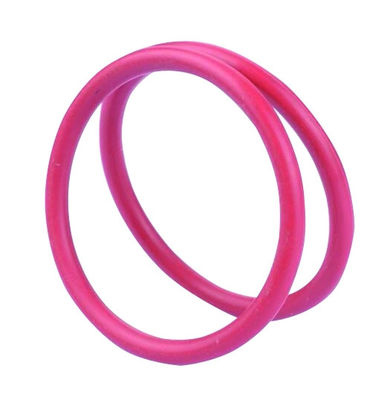

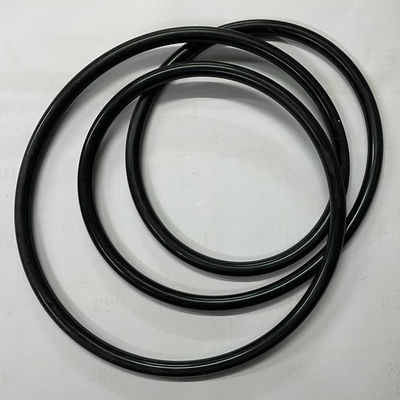

Rubber O Rings, also known as FKM Rubber Seals, are essential components used in various industries for sealing applications. These rings are designed to fit into grooves and provide efficient sealing, preventing leaks and maintaining the integrity of the system.
Our Rubber O Rings are made from FKM Rubber, a type of synthetic rubber known for its excellent performance in high temperature and chemical environments. This makes them suitable for use in a wide range of industries, including automotive, aerospace, oil and gas, and more.
Our Rubber O Rings have a tear strength of 16-30 N/mm, making them durable and resistant to tears and abrasions. They can withstand pressures of up to 5,000 Psi, making them suitable for use in high-pressure systems. Additionally, their good oil resistance ensures that they can maintain their sealing capabilities even in the presence of oils and other lubricants.
Our Rubber O Rings are made from FKM (Fluorocarbon Rubber) material, also known as FKM Rubber Seal. This type of rubber is known for its excellent resistance to high temperatures, chemicals, and oils. It can withstand temperatures ranging from -20°C to 250°C, making it suitable for use in extreme environments. FKM Rubber also has low compression set, meaning it can maintain its shape and sealing capabilities over a long period of time.
One of the key applications of our Rubber O Rings is FKM Wall Sealing. These rings are used to seal gaps and joints between walls and other surfaces, providing a tight and secure seal. Their high temperature and chemical resistance make them suitable for use in industrial settings, where exposure to harsh environments is common.
Our Rubber O Rings can withstand high temperatures, making them suitable for use in applications where heat is a concern. They can maintain their sealing capabilities even at temperatures as high as 250°C, ensuring that the system remains sealed and functional.
In addition to their high temperature resistance, our Rubber O Rings also have excellent chemical resistance. This means that they can withstand exposure to various chemicals, acids, and solvents without deteriorating or losing their sealing capabilities. This makes them suitable for use in industries such as chemical processing, oil and gas, and more.
Overall, our Rubber O Rings are a reliable and efficient solution for sealing applications, thanks to their FKM Rubber material and excellent performance in high temperature and chemical environments. Choose our Rubber O Rings for a secure and long-lasting seal in your systems.
The allowable dimension deviation of NBR O-ring of 70 Shore A is shown in the table below:
|
ID± Tolerance |
W± Tolerance |
||||
| -3 | 0.14 | 120-150 | 1.2 | -1.8 | 0.08 |
| 3-6 | 0.15 | 150-180 | 1.4 | 1.8-2.6 | 0.09 |
| 6-10 | 0.17 | 180-250 | 1.8 | 2.6-3.5 | 0.10 |
| 10-18 | 0.20 | 250-300 | 2.1 | 3.5-5.3 | 0.13 |
| 18-30 | 0.30 | 300-350 | 2.5 | 5.3-7 | 0.15 |
| 30-50 | 0.40 | 350-400 | 2.8 | 7-8 | 0.17 |
| 50-80 | 0.65 | 400-500 | 3.4 | 8-10 | 0.20 |
| 80-100 | 0.85 | 500-650 | 4.3 | 10-15 | 0.25 |
| 100-120 | 1.00 | 650-800 | 6.5 | ||
| Standard | AS568 |
|---|---|
| P | |
| G | |
| S | |
| Tear Strength | 16-30 N/mm |
| Working Pressure | ≤40 Mpa |
| Oil Resistance | Good |
| Custom | Available OEM/ODM |
| Pressure Range | Up To 5,000 Psi |
| Packing | Cartoon Bag |
| Sample | Freight Collect |
| Technology | Compression Molding |
| Processing Services | Mold Opening |
| FKM Rubber Seal | WF-ring |
| Nitrile Rubber Ring |
Brand Name: FanYing
Model Number: FY-NBR70/80/90
Place of Origin: China
Processing Services: Mold Opening
Packing: Cartoon Bag
Working Pressure: ≤40 Mpa
Technology: Compression Molding
Using: Oil Gas Field Sealing
The FanYing Rubber O Rings are a type of sealing ring that is used in various industries for its excellent sealing properties. These rings are manufactured by FanYing, a leading brand in the rubber industry.
The model numbers available for these rings are FY-NBR70, FY-NBR80, and FY-NBR90, which represent the different levels of Nitrile Rubber used in their production. These rings are known for their high quality and durability, making them a popular choice in the market.
The FanYing Rubber O Rings are proudly made in China, using the latest technology and state-of-the-art equipment. The company offers mold opening services, ensuring that the rings are made to exact specifications and dimensions, meeting the requirements of different industries.
These rings come packed in a cartoon bag, providing protection during transportation and ensuring that they reach the customers in perfect condition. The working pressure for these rings is ≤40 Mpa, making them suitable for a wide range of applications.
The technology used in the production of these rings is compression molding, which ensures a tight and secure seal. This also makes the rings resistant to wear and tear, increasing their lifespan and reducing the need for frequent replacements.
The FanYing Rubber O Rings are commonly used in oil and gas field sealing due to their high temperature resistance and excellent sealing properties. They are also used in industrial machinery, providing a reliable and long-lasting seal for different types of equipment.
For applications that require high-temperature resistance, FanYing also offers FKM WF rings, which are made from FKM rubber seal. These rings are known for their superior performance in extreme temperatures and harsh environments.
In conclusion, the FanYing Rubber O Rings are a versatile and reliable sealing solution for various industries. With their high-quality materials, advanced technology, and excellent performance, they have become a popular choice among customers worldwide. Choose FanYing Rubber O Rings for your sealing needs and experience the difference in quality and performance.
Our Rubber O Rings are made with high-quality materials and advanced technology, ensuring excellent performance in various industries. Our customization service allows you to tailor the O rings to your specific needs and requirements.
Our FKM rings are highly resistant to chemicals, oils, and high temperatures, making them ideal for use in harsh environments. With our customization service, you can choose the FKM material that best suits your application.
We offer customization options for Walform and WF seals, which are widely used in hydraulic systems. Our seals are designed to provide reliable and leak-free connections, ensuring efficient performance in your machinery.
Our NBR rings are known for their excellent oil resistance, making them suitable for use in the oil and gas industry. With our customization service, you can choose the NBR material and hardness that best meets your sealing needs.
Our customization process for Rubber O Rings is simple and efficient:
With our customization service, you can trust us to provide high-quality Rubber O Rings that meet your exact requirements. Contact us now to learn more and get started on customizing your O rings.
Our Rubber O Rings are carefully packaged to ensure safe delivery to our customers. We understand the importance of protecting these small but essential products during shipping and have taken all necessary measures to guarantee their safe arrival.
All of our Rubber O Rings are individually wrapped and sealed in plastic bags to prevent any damage or contamination during transportation. The bags are then placed in sturdy cardboard boxes, which are filled with protective materials such as bubble wrap or foam to provide additional cushioning.
We offer various packaging options for our customers, including bulk packaging for larger orders and retail packaging for individual sales. Our retail packaging includes clear plastic cases with labels for easy identification and storage.
For international orders, we follow all necessary customs and shipping regulations to ensure smooth delivery. Our products are packed in compliance with international standards and are labeled with all required information for customs clearance.
Once the packages are ready, they are securely sealed and labeled with the necessary shipping information, including the recipient's address and tracking number. We work with trusted shipping partners to ensure timely and efficient delivery of our products.
At Rubber O Rings, we are committed to providing our customers with high-quality products and hassle-free shipping. We continuously monitor our packaging and shipping processes to ensure that our products reach our customers in perfect condition.
