| Brand Name: | FanYing |
| Model Number: | FY-NBR70/80/90 |
| MOQ: | 1000 pieces |
| Price: | USD$ 0.48 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300000 PIECES PER DAY |

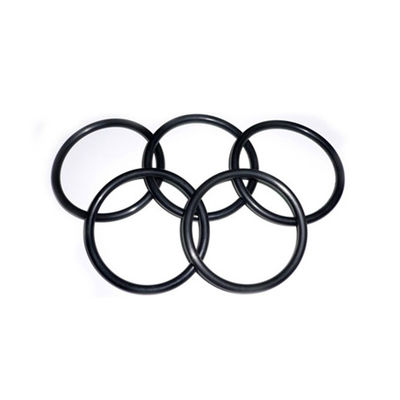

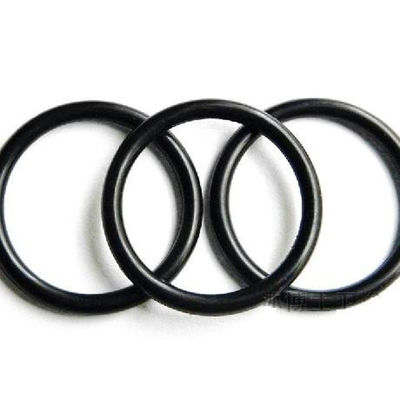

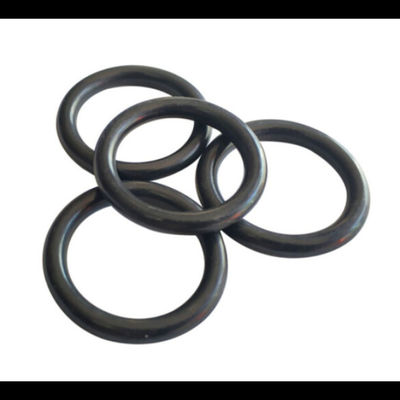

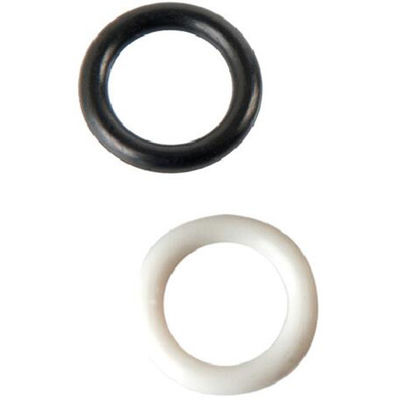

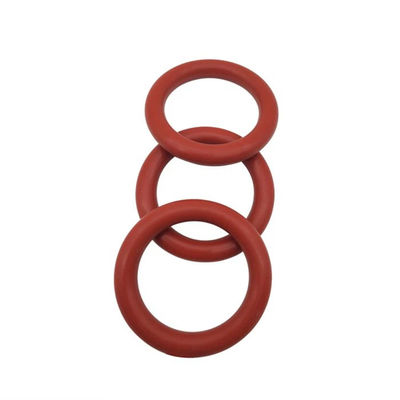

Rubber O Rings, also known as FKM Rubber Seals or FKM rings, are essential components in many industrial applications. These high-quality seals are designed to provide a reliable and leak-free sealing solution for a wide range of operating conditions. With excellent resistance to heat, chemicals, and high pressures, Rubber O Rings are the go-to choice for demanding applications.
When it comes to performance and reliability, Rubber O Rings stand out from the rest. Here are some key attributes of this product:
In summary, Rubber O Rings are a versatile and reliable sealing solution that offers exceptional performance in various industrial settings. With their FKM rubber material, tear strength, and high working pressure, these O rings are sure to meet your sealing needs. Choose WF Seals' Rubber O Rings for a dependable and long-lasting sealing solution.
The allowable dimension deviation of NBR O-ring of 70 Shore A is shown in the table below:
|
ID± Tolerance |
W± Tolerance |
||||
| -3 | 0.14 | 120-150 | 1.2 | -1.8 | 0.08 |
| 3-6 | 0.15 | 150-180 | 1.4 | 1.8-2.6 | 0.09 |
| 6-10 | 0.17 | 180-250 | 1.8 | 2.6-3.5 | 0.10 |
| 10-18 | 0.20 | 250-300 | 2.1 | 3.5-5.3 | 0.13 |
| 18-30 | 0.30 | 300-350 | 2.5 | 5.3-7 | 0.15 |
| 30-50 | 0.40 | 350-400 | 2.8 | 7-8 | 0.17 |
| 50-80 | 0.65 | 400-500 | 3.4 | 8-10 | 0.20 |
| 80-100 | 0.85 | 500-650 | 4.3 | 10-15 | 0.25 |
| 100-120 | 1.00 | 650-800 | 6.5 | ||
| Attribute | Value |
|---|---|
| Product Name | Rubber O Rings |
| Using | Oil Gas Field Sealing |
| Available Size | C/s Depend On Client Demand |
| Working Pressure | ≤40 Mpa |
| Tear Strength | 16-30 N/mm |
| Standard | AS568 , P, G, S |
| Oil Resistance | Good |
| Custom | Available OEM/ODM |
| Packing | Cartoon Bag |
| Processing Services | Mold Opening |
| Pressure Range | Up To 5,000 Psi |
| Key Features | Walform, WF-ring, WF seals |
FanYing Rubber O Rings, also known as WF seals, are a type of sealing device made from high-quality rubber material. These O rings are designed and manufactured by FanYing, a leading rubber products manufacturer based in China. With years of experience and expertise in the industry, FanYing has become a trusted name in providing top-notch rubber products to various industries worldwide.
FanYing Rubber O Rings are widely used in various industries and applications, including automotive, aerospace, oil and gas, plumbing, and many more. These O rings are suitable for both static and dynamic sealing applications, making them versatile and useful in a wide range of situations.
In the automotive industry, FanYing Rubber O Rings are commonly used for sealing engine components, such as oil filters, fuel pumps, and water pumps. These O rings provide a reliable and leak-free seal, ensuring the optimal performance of the engine. They also have excellent oil resistance, making them suitable for use in high-temperature and high-pressure environments.
FanYing Rubber O Rings are also widely used in the aerospace industry for sealing critical components, such as hydraulic systems, fuel systems, and engine components. These O rings are specially designed to withstand extreme temperatures, pressures, and harsh chemicals, making them ideal for use in the demanding aerospace environment.
In the oil and gas industry, FanYing Rubber O Rings, also known as WF rings, are used for sealing wellheads, valves, and other equipment. These O rings have excellent tear strength, with a range of 16-30 N/mm, making them capable of withstanding high pressures up to 5,000 psi. They also have good oil resistance, ensuring reliable and long-lasting performance in the harsh and corrosive oil and gas environment.
FanYing Rubber O Rings are available in various sizes and can be customized according to the client's specific demands. They are made from NBR (nitrile butadiene rubber) material, which has excellent oil resistance, making these O rings suitable for use in various oil and gas applications. FanYing also offers processing services, such as mold opening, to ensure that the O rings meet the client's exact specifications.
Overall, FanYing Rubber O Rings, with their excellent tear strength, oil resistance, and versatility, are a reliable and cost-effective sealing solution for a wide range of applications. Trust FanYing to provide you with top-quality O rings for your sealing needs. Contact us today for more information or to place an order.
Brand Name: FanYing
Model Number: FY-NBR70/80/90
Place of Origin: China
Standard: AS568, P, G, S
Working Pressure: ≤40 Mpa
Oil Resistance: Good
Available Size: C/s Depend On Client Demand
Custom: Available OEM/ODM
Introducing our FanYing Customized Rubber O Rings, designed to meet your specific needs and requirements. Our WF rings and seals are made from high-quality materials, ensuring durability and reliability in any application. Available in FKM rings and rubber seals, our O rings are the perfect solution for all your sealing needs.
Manufactured in China, our O rings meet the industry standard of AS568, P, G, and S, guaranteeing a perfect fit for your equipment. With a working pressure of ≤40 Mpa, our O rings can withstand even the most demanding environments.
Our rubber O rings also have excellent oil resistance, ensuring a tight and secure seal in the presence of oil. Available in various sizes, the C/s can be customized to meet your specific demands, making our O rings suitable for a wide range of applications.
At FanYing, we take pride in providing customized services to our clients. Our O rings are available for customization, whether it's for OEM or ODM purposes. Trust us to deliver high-quality and reliable WF rings and seals that meet your exact specifications.
Choose FanYing for your rubber O ring needs and experience the best in customized sealing solutions. Contact us now to learn more about our products and services.
Our Rubber O Rings are carefully packaged and shipped to ensure their safe arrival to our customers. Below are the details of our packaging and shipping process:
All Rubber O Rings are individually wrapped in plastic bags to protect them from dirt, dust, and moisture during transportation. They are then placed in a sturdy cardboard box with ample cushioning material to prevent any damage during transit.
For larger orders, we use wooden crates or pallets to ensure the safe delivery of the Rubber O Rings. Each crate or pallet is securely strapped and labeled for easy identification.
We offer various shipping options to meet the needs of our customers. The most common shipping methods we use are air freight, sea freight, and express delivery.
Air freight is the fastest option and is recommended for urgent orders. Sea freight is a more cost-effective option for larger orders. Express delivery is available for customers who require their Rubber O Rings to be delivered within a specific timeframe.
We work with reputable shipping companies to ensure timely and reliable delivery of our products. We also provide tracking information for all orders so customers can track their packages during transit.
At Rubber O Rings, we strive to provide the best packaging and shipping services to ensure our customers receive their products in perfect condition and on time.
