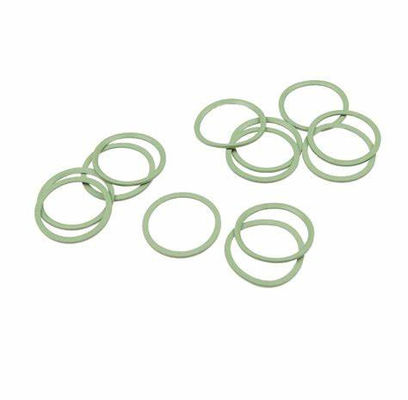

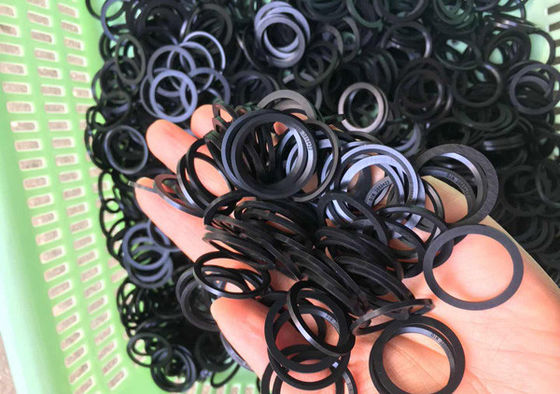

ED ring (beveled flat gasket)

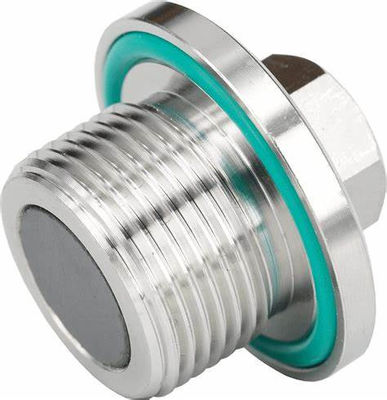

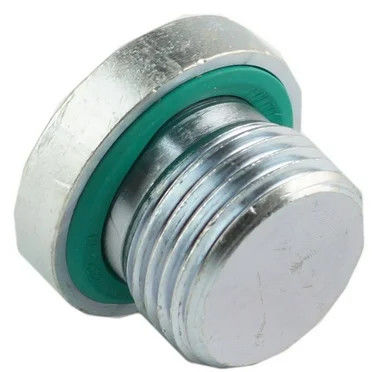

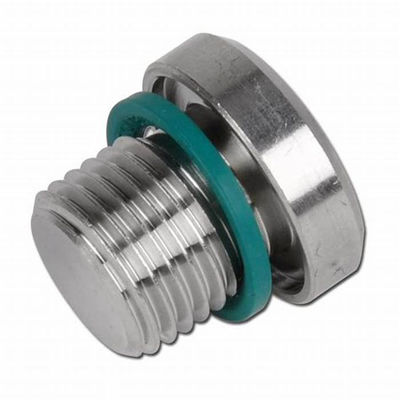

ED ring, also known as ED sealing ring and beveled flat gasket, is an industrial elastic seal with better sealing effect than O-ring. ED ring is mainly used for axial static sealing and is used in threaded oil ports and The cross section of the screw end remains basically constant under high pressure. In addition to having corrosion resistance, high temperature resistance, high pressure resistance, wear resistance and other characteristics similar to O-rings, the ED ring also has the following features: the working pressure can reach 60Mpa, it maintains good sealing properties for a long time, and the cross-sectional mechanical deformation is small. No relative movement during pressure cycles, among many other advantages. In addition to being used for hydraulic plugs, hydraulic transition joints, hydraulic pipe joints, etc., ED rings (beveled flat gaskets) are also widely used in automobiles, aviation, shipbuilding, doors and windows, bearings, cylinders, water pipes, valves, petrochemicals, and biopharmaceuticals. , home furnishings and other industries.
ED ring is an elastomer seal used as an axial static seal. It is used in threaded oil ports and screw ends. Its cross-section remains almost constant under high pressure. Compared with ordinary O-rings, its advantages are:
The mechanical deformation of the cross-section is small, there is no relative movement during the pressure cycle, excellent sealing performance is maintained for a long time, and the working pressure can reach 60Mpa.
Advantages of ED circle:
High temperature resistance, oil resistance, chemical resistance, ozone resistance, weather resistance, anti-aging, chemical solvent resistance, smoldering property, excellent air tightness, and famous for its chemical resistance. Suitable for weak acids and weak bases.
Disadvantages of ED circle:
Intolerant to ketones, lipids, and nitrates;
This product is a type of sealing ring made of high-quality rubber material. It is commonly used in various industries, especially in the oil and gas field, for its excellent performance in sealing and resistance to oil. With its unique design and material, it provides efficient and reliable sealing solutions for different applications.
Overall, Rubber O Rings are a reliable and efficient sealing solution for various industries, especially in the oil and gas field. With its unique design, high-quality rubber material, and excellent oil resistance, it provides a long-lasting and secure seal to ensure smooth operations in different applications.
| Product Name | Rubber O Rings |
|---|---|
| Material | Nitrile Rubber Ring, FKM rings, WF rings And Seals |
| Packing | Cartoon Bag |
| Working Pressure | ≤40 Mpa |
| Tear Strength | 16-30 N/mm |
| Standard | DIN 3869 ED-RING 14 |
| Processing Services | Mold Opening |
| Oil Resistance | Good |
| Available Size | C/s Depend On Client Demand |
| Technology | Compression Molding |
| Pressure Range | Up To 5,000 Psi |
| Sample | Freight Collect |
| SN | Model | d1 | 62 | h1+0.1 | h2 | |
| 8 | M8*1 | ~ | 6.50 | 9.90 | 1.00 | 0.50 |
| 10 | M10*1 | 1/8 | 8.40 | 11.90 | 1.00 | 0.50 |
| 12 | M12*1.5 | ~ | 9.80 | 14.40 | 1.50 | 0.80 |
| 14 | M14*1.5 | 1/4 | 11.50 | 16.50 | 1.50 | 0.80 |
| 16 | M16*1.5 | ~ | 13.80 | 18.90 | 1.50 | 0.80 |
| 17 | ~ | 3/8 | 14.70 | 18.90 | 1.50 | 0.80 |
| 18 | M18*1.5 | ~ | 15.70 | 20.90 | 1.50 | 0.80 |
| 20 | M20*1.5 | ~ | 17.80 | 22.90 | 1.50 | 0.80 |
| 21 | ~ | 1/2 | 18.50 | 23.90 | 1.50 | 0.80 |
| 22 | M22*1.5 | ~ | 19.60 | 24.30 | 1.50 | 0.80 |
| 24 | M24*1.5 | 5/8 | 21.80 | 26.90 | 1.50 | 0.80 |
| 27 | M26*1.5 | 3/4 | 23.90 | 29.20 | 1.50 | 0.80 |
| 27 | M27*2 | 3/4 | 23.90 | 29.20 | 1.50 | 0.80 |
| 33 | M33*2 | 1 | 29.70 | 35.70 | 2.00 | 1.00 |
| 42 | M42*2 | 11/4 | 38.80 | 45.80 | 2.00 | 1.00 |
| 48 | M48*2 | 11/2 | 44.70 | 50.70 | 2.00 | 1.00 |
| 60 | M60*2 | 2 | 56.50 | 66.50 | 4.00 | 2.00 |
Brand Name: FanYing
Model Number: DIN 3869 ED-RING 14
Place of Origin: China
Using: Oil Gas Field Sealing
Packing: Cartoon Bag
Available Size: C/s Depend On Client Demand
Technology: Compression Molding
Tear Strength: 16-30 N/mm
Rubber O Rings, also known as ED-Rings, are circular rubber seals with a round cross-section. They are commonly used in various industrial and commercial applications for their excellent sealing properties. FanYing brand offers high-quality ED-Rings made of FKM (Fluorocarbon Rubber) material, known for its exceptional performance and durability.
FanYing Rubber O Rings are widely used in Oil and Gas Field Sealing, providing reliable and efficient sealing solutions for various equipment and machinery. They are particularly suitable for high pressure and high temperature environments, making them ideal for use in the oil and gas industry. These O Rings can also be used in other industries such as automotive, aerospace, and chemical processing.
FanYing Rubber O Rings are packed in a durable cartoon bag, ensuring safe transportation and storage. We offer customized packing options as per the client's requirements. Our prompt delivery services ensure timely delivery of orders to our clients worldwide.
FanYing Rubber O Rings are manufactured using advanced Compression Molding technology, ensuring high precision and consistent quality. Our products undergo strict quality control measures to ensure they meet international standards. Each batch of O Rings is tested for tear strength, with a range of 16-30 N/mm, to ensure their durability and reliability.
FanYing Rubber O Rings are the perfect choice for Oil and Gas Field Sealing, providing efficient sealing solutions with their high-quality FKM material and advanced technology. With excellent pressure, temperature, and chemical resistance, our O Rings offer reliable performance in various industrial applications. Choose FanYing for all your sealing needs and experience the best quality and service.
Many ED rings are produced using synthetic rubber materials. Therefore, the initially set compression amount and resilience of the product will cause permanent deformation after long-term use, and will gradually fail and cause leakage. It can be said that permanent deformation and loss of elasticity are the main reasons for the decline in sealing performance. So what are the causes of permanent deformation?
1. The relationship between compression ratio, stretch amount and permanent deformation of product materials
When producing this product, there are many kinds of rubber formulas, and even different formulas will produce compressive stress relaxation under compression. Generally speaking, compressive stress will decrease with time.
As the use time prolongs, the values of compression ratio and tensile amount will become larger, because the stress drop caused by rubber stress relaxation will also be greater, resulting in insufficient elasticity of the product and reduced sealing performance.
What are the causes of permanent deformation of ED rings?
If the use conditions permit, you should try to reduce the compression rate, which can alleviate product deformation. You can reduce the compression rate by increasing the cross-sectional size.
The degree of deformation of the product's cross-section is closely related to the hardness of the material. Under the premise of the same stretching amount, the hardness is large and the cross-section height is small. Therefore, on the premise of meeting the use requirements, a low-hardness material should be selected.
Due to the action of liquid pressure and tension, the product will gradually undergo plastic deformation after long-term use, resulting in a reduction in cross-section height and loss of sealing performance.
2. The relationship between temperature and product relaxation process
The use temperature is the cause of permanent deformation of the product. High temperatures can easily cause rubber materials to age. The higher the working temperature, the great
At FanYing, we understand the importance of finding the right rubber o-ring for your high pressure applications. That's why we offer custom services for our WF-ring, following the DIN standard of DIN 3869 ED-RING 14.
Our WF-ring is designed to withstand pressure up to 5,000 Psi, with a working pressure of ≤40 Mpa. We offer a wide range of sizes to fit your specific needs, ensuring a perfect fit for your equipment.
Located in China, we take pride in our quality and craftsmanship. Our o rings are made with the highest quality rubber, ensuring durability and longevity.
Experience our custom service today and see the difference in performance with our WF-ring. Contact us for more information and a free sample (freight collect).
ED sealing rings are suitable for installation on various mechanical equipment and perform sealing functions in static or moving conditions under specified temperatures, pressures, and different liquid and gas media. Various types of seals are widely used in machine tools, ships, automobiles, aerospace equipment, metallurgical machinery, chemical machinery, engineering machinery, construction machinery, mining machinery, petroleum machinery, plastic machinery, agricultural machinery, and various types of instruments and meters. element.
ED sealing rings are mainly used for static sealing and reciprocating motion sealing. When used for rotary motion seals, its resistance to gasoline and aliphatic hydrocarbon oils is particularly good, second only to polysulfide rubber, acrylate and fluororubber, but better than other general-purpose rubbers. It has good heat resistance, good air tightness, wear resistance and water resistance, and strong adhesion. The disadvantages are poor cold resistance and ozone resistance, low strength and elasticity, poor acid resistance, poor electrical insulation, and poor resistance to polar solvents. Suitable for automotive transmission oil, with good heat resistance and oil resistance, and stable performance in lubricants containing sulfur, phosphorus and chlorine additives. At the same time, it is resistant to aging, oxygen and ozone, UV resistance, and excellent air tightness. The disadvantage is that it has poor cold resistance, is not resistant to water, steam and organic and inorganic acids and alkali.
