| Brand Name: | FanYing |
| Model Number: | DIN 3869 ED-RING 14 |
| MOQ: | 1000 pieces |
| Price: | USD$ 0.48 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300000 PIECES PER DAY |

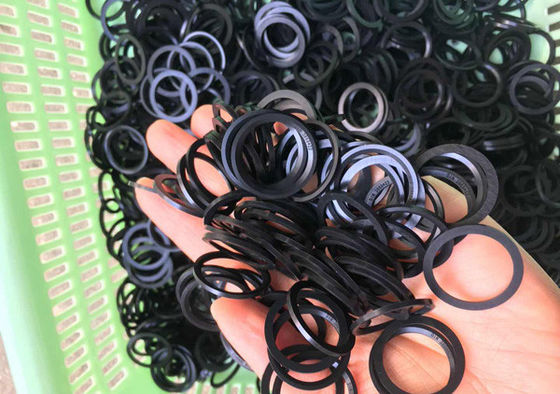

ED ring (beveled flat gasket)
ED ring, also known as ED sealing ring and beveled flat gasket, is an industrial elastic seal with better sealing effect than O-ring. ED ring is mainly used for axial static sealing and is used in threaded oil ports and The cross section of the screw end remains basically constant under high pressure. In addition to having corrosion resistance, high temperature resistance, high pressure resistance, wear resistance and other characteristics similar to O-rings, the ED ring also has the following features: the working pressure can reach 60Mpa, it maintains good sealing properties for a long time, and the cross-sectional mechanical deformation is small. No relative movement during pressure cycles, among many other advantages. In addition to being used for hydraulic plugs, hydraulic transition joints, hydraulic pipe joints, etc., ED rings (beveled flat gaskets) are also widely used in automobiles, aviation, shipbuilding, doors and windows, bearings, cylinders, water pipes, valves, petrochemicals, and biopharmaceuticals. , home furnishings and other industries.
ED ring is an elastomer seal used as an axial static seal. It is used in threaded oil ports and screw ends. Its cross-section remains almost constant under high pressure. Compared with ordinary O-rings, its advantages are:
The mechanical deformation of the cross-section is small, there is no relative movement during the pressure cycle, excellent sealing performance is maintained for a long time, and the working pressure can reach 60Mpa.
Advantages of ED circle:
High temperature resistance, oil resistance, chemical resistance, ozone resistance, weather resistance, anti-aging, chemical solvent resistance, smoldering property, excellent air tightness, and famous for its chemical resistance. Suitable for weak acids and weak bases.
Disadvantages of ED circle:
Intolerant to ketones, lipids, and nitrates;

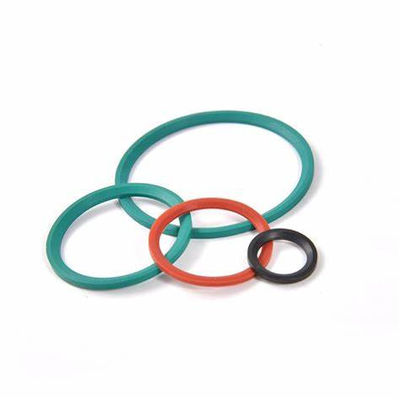

The Rubber O Rings are essential sealing components used in various industries and applications. These rings are designed to provide a reliable and leak-proof seal between two or more parts. They are made from high-quality EDPM materials, which provide excellent oil resistance, high temperature resistance, and high pressure resistance.
The Rubber O Rings are manufactured using the compression molding technology. This process involves compressing the EDPM material into a mold under high pressure and heat. This results in a strong and durable O Ring that can withstand various environmental conditions and maintain its sealing properties.
Our Rubber O Rings are carefully packed in a cartoon bag to ensure safe transportation and storage. This packaging method also allows for easy identification and organization of the different sizes and types of O Rings.
We offer mold opening services for customized Rubber O Rings. Our team of experts can create molds according to your specifications, ensuring that the O Rings fit perfectly in your application.
The Rubber O Rings have a maximum working pressure of 40 Mpa. This makes them suitable for use in high-pressure environments, providing a reliable and long-lasting seal.
We understand that each application may have different requirements for O Rings. That's why we offer customization options for our Rubber O Rings. We can provide OEM and ODM services to create O Rings that meet your specific needs and specifications.
Overall, our Rubber O Rings are a reliable and efficient sealing solution for a wide range of industries and applications. With our advanced technology, high-quality materials, and customizable options, we are committed to providing the best sealing solution for your needs.
Many ED rings are produced using synthetic rubber materials. Therefore, the initially set compression amount and resilience of the product will cause permanent deformation after long-term use, and will gradually fail and cause leakage. It can be said that permanent deformation and loss of elasticity are the main reasons for the decline in sealing performance. So what are the causes of permanent deformation?
1. The relationship between compression ratio, stretch amount and permanent deformation of product materials
When producing this product, there are many kinds of rubber formulas, and even different formulas will produce compressive stress relaxation under compression. Generally speaking, compressive stress will decrease with time.
As the use time prolongs, the values of compression ratio and tensile amount will become larger, because the stress drop caused by rubber stress relaxation will also be greater, resulting in insufficient elasticity of the product and reduced sealing performance.
What are the causes of permanent deformation of ED rings?
If the use conditions permit, you should try to reduce the compression rate, which can alleviate product deformation. You can reduce the compression rate by increasing the cross-sectional size.
The degree of deformation of the product's cross-section is closely related to the hardness of the material. Under the premise of the same stretching amount, the hardness is large and the cross-section height is small. Therefore, on the premise of meeting the use requirements, a low-hardness material should be selected.
Due to the action of liquid pressure and tension, the product will gradually undergo plastic deformation after long-term use, resulting in a reduction in cross-section height and loss of sealing performance.
2. The relationship between temperature and product relaxation process
The use temperature is the cause of permanent deformation of the product. High temperatures can easily cause rubber materials to age. The higher the working temperature, the great
| Product Name | Rubber O Rings |
|---|---|
| Brand | WF seals |
| Standard | DIN 3869 ED-RING 14 |
| Processing Services | Mold Opening |
| Sample | Freight Collect |
| Packing | Cartoon Bag |
| Technology | Compression Molding |
| Pressure Range | Up To 5,000 Psi |
| Custom | Available OEM/ODM |
| Using | Oil Gas Field Sealing |
| Tear Strength | 16-30 N/mm |
| Working Pressure | ≤40 Mpa |
| SN | Model | d1 | 62 | h1+0.1 | h2 | |
| 8 | M8*1 | ~ | 6.50 | 9.90 | 1.00 | 0.50 |
| 10 | M10*1 | 1/8 | 8.40 | 11.90 | 1.00 | 0.50 |
| 12 | M12*1.5 | ~ | 9.80 | 14.40 | 1.50 | 0.80 |
| 14 | M14*1.5 | 1/4 | 11.50 | 16.50 | 1.50 | 0.80 |
| 16 | M16*1.5 | ~ | 13.80 | 18.90 | 1.50 | 0.80 |
| 17 | ~ | 3/8 | 14.70 | 18.90 | 1.50 | 0.80 |
| 18 | M18*1.5 | ~ | 15.70 | 20.90 | 1.50 | 0.80 |
| 20 | M20*1.5 | ~ | 17.80 | 22.90 | 1.50 | 0.80 |
| 21 | ~ | 1/2 | 18.50 | 23.90 | 1.50 | 0.80 |
| 22 | M22*1.5 | ~ | 19.60 | 24.30 | 1.50 | 0.80 |
| 24 | M24*1.5 | 5/8 | 21.80 | 26.90 | 1.50 | 0.80 |
| 27 | M26*1.5 | 3/4 | 23.90 | 29.20 | 1.50 | 0.80 |
| 27 | M27*2 | 3/4 | 23.90 | 29.20 | 1.50 | 0.80 |
| 33 | M33*2 | 1 | 29.70 | 35.70 | 2.00 | 1.00 |
| 42 | M42*2 | 11/4 | 38.80 | 45.80 | 2.00 | 1.00 |
| 48 | M48*2 | 11/2 | 44.70 | 50.70 | 2.00 | 1.00 |
| 60 | M60*2 | 2 | 56.50 | 66.50 | 4.00 | 2.00 |

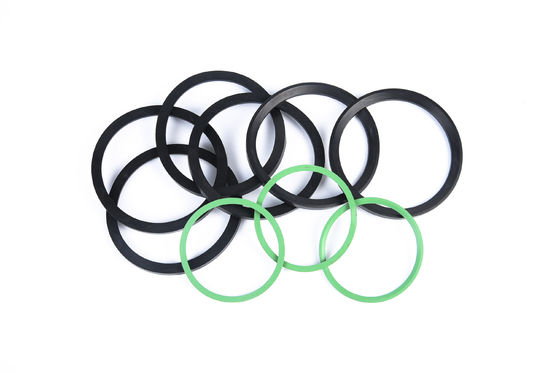

Rubber O Rings, also known as orings and seals, are simple yet effective sealing solutions that are used in a variety of industries. These rings are essential for preventing leaks and ensuring the smooth functioning of machinery and equipment. FanYing, a leading manufacturer of rubber products, offers high-quality Rubber O Rings to meet your sealing needs.
Rubber O Rings are widely used in various industries such as automotive, aerospace, oil and gas, hydraulic and pneumatic systems, and many more. These rings are ideal for sealing static and dynamic applications, making them suitable for a wide range of applications.
FanYing's Rubber O Rings are designed using the innovative WF-ring technology, which ensures superior sealing performance. This technology involves the use of a special profile with a wave-shaped cross-section, which provides a better seal and reduces the risk of leaks.
The Rubber O Rings from FanYing are made from high-grade rubber materials that are resistant to heat, oil, and other corrosive substances. This makes them durable and long-lasting, even in harsh operating conditions. The rings undergo rigorous quality checks to ensure they meet the highest standards of quality and performance.
FanYing's Rubber O Rings are manufactured using the mold opening process, which allows for the production of custom sizes and shapes as per client demand. This process ensures precision and consistency in every ring produced, making them suitable for a wide range of sealing applications.
The Rubber O Rings from FanYing can withstand pressure up to 5,000 Psi, making them ideal for sealing applications that require high pressure resistance. This makes them suitable for use in hydraulic and pneumatic systems, where pressure levels can be extremely high.
To ensure easy handling and transportation, FanYing's Rubber O Rings are packed in high-quality cartoon bags. This not only provides protection during shipping but also makes it convenient for clients to store and use the rings as needed.
At FanYing, we understand that every sealing application is unique, and one size does not fit all. That's why we offer Rubber O Rings in a variety of sizes and shapes to meet the specific demands of our clients. We work closely with our clients to understand their requirements and provide them with customized solutions.
FanYing's Rubber O Rings, with its WF-ring technology, high-quality materials, and custom sizes, are the perfect solution for all your sealing needs. Our commitment to quality and customer satisfaction has made us a trusted name in the industry. Choose FanYing for reliable and durable Rubber O Rings that will exceed your expectations.

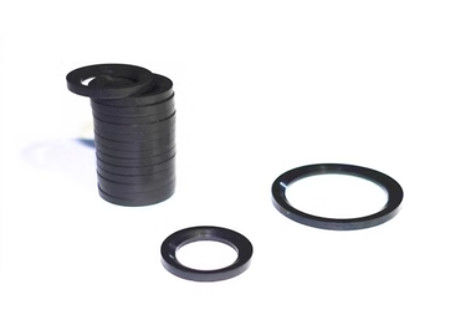

ED sealing rings are suitable for installation on various mechanical equipment and perform sealing functions in static or moving conditions under specified temperatures, pressures, and different liquid and gas media. Various types of seals are widely used in machine tools, ships, automobiles, aerospace equipment, metallurgical machinery, chemical machinery, engineering machinery, construction machinery, mining machinery, petroleum machinery, plastic machinery, agricultural machinery, and various types of instruments and meters. element.
ED sealing rings are mainly used for static sealing and reciprocating motion sealing. When used for rotary motion seals, its resistance to gasoline and aliphatic hydrocarbon oils is particularly good, second only to polysulfide rubber, acrylate and fluororubber, but better than other general-purpose rubbers. It has good heat resistance, good air tightness, wear resistance and water resistance, and strong adhesion. The disadvantages are poor cold resistance and ozone resistance, low strength and elasticity, poor acid resistance, poor electrical insulation, and poor resistance to polar solvents. Suitable for automotive transmission oil, with good heat resistance and oil resistance, and stable performance in lubricants containing sulfur, phosphorus and chlorine additives. At the same time, it is resistant to aging, oxygen and ozone, UV resistance, and excellent air tightness. The disadvantage is that it has poor cold resistance, is not resistant to water, steam and organic and inorganic acids and alkali.
Brand Name: FanYing
Model Number: DIN 3869 ED-RING 14
Place of Origin: China
Sample: Freight Collect
Available Size: C/s Depend On Client Demand
Working Pressure: ≤40 Mpa
Technology: Compression Molding
Standard: DIN 3869 ED-RING 14

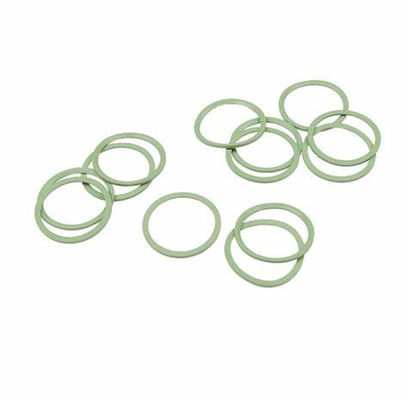

Customized Service for EDPM O Rings and Rubber O Rings
At FanYing, we offer customizable services for our high-quality EDPM O Rings and rubber o rings. Our ED ring model, DIN 3869 ED-RING 14, is produced with precision and expertise in our manufacturing facility in China.
Sample Delivery Options
We understand the importance of being able to inspect our products before making a purchase. That's why we offer sample delivery options, with the freight costs being collected by the customer.
Flexible Size Options
Our ED rings are available in a variety of sizes to suit the specific demands of our clients. We offer customized sizes to ensure the perfect fit for any application.
High Working Pressure
Our EDPM O Rings and rubber o rings are designed to withstand high working pressures of up to 40 Mpa, making them suitable for a wide range of industrial applications.
Expert Compression Molding Technology
At FanYing, we utilize cutting-edge compression molding technology to produce our ED rings, ensuring high quality and precision in every product.
Compliance with DIN Standards
Our ED rings are manufactured in compliance with the DIN 3869 ED-RING 14 standard, ensuring that our products meet the highest quality and performance standards.
Choose FanYing for Customized EDPM O Rings and Rubber O Rings
Trust FanYing for all your EDPM O Ring and rubber o ring needs. With our customizable services, high working pressure capabilities, and compliance with DIN standards, we are the top choice for ED rings. Contact us today to learn more and place your order.
Our Rubber O Rings are carefully packaged to ensure their safe delivery to your location. Each O Ring is individually wrapped in plastic to prevent any damage during transportation. They are then placed in a sturdy cardboard box with cushioning material to further protect them.
We offer various shipping options to meet your needs. Our standard shipping option is through a reliable courier service, and we also offer expedited shipping for urgent orders. We can also arrange for special shipping arrangements at your request.
Once your order is processed and packaged, we will provide you with a tracking number so you can monitor the status of your shipment. We take great care to ensure that your Rubber O Rings arrive in perfect condition and on time.
If you have any specific packaging or shipping requests, please let us know and we will do our best to accommodate them.
