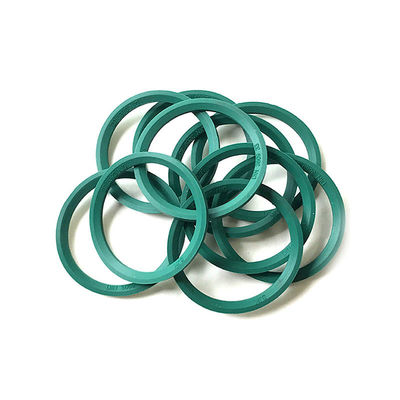

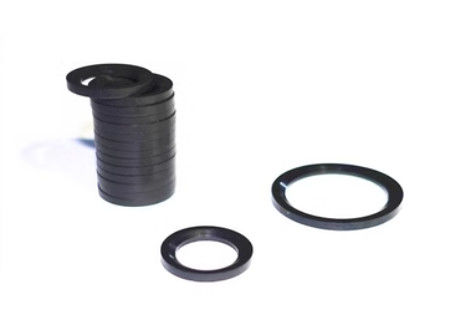

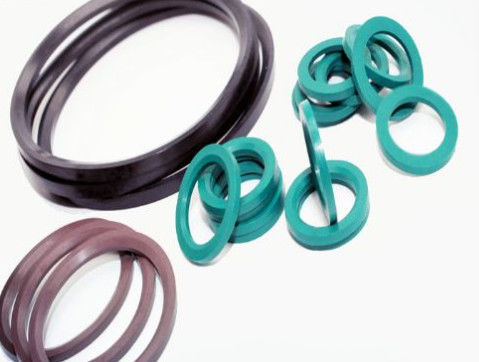

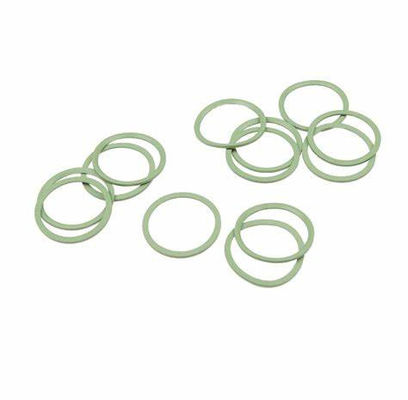

ED ring (beveled flat gasket)

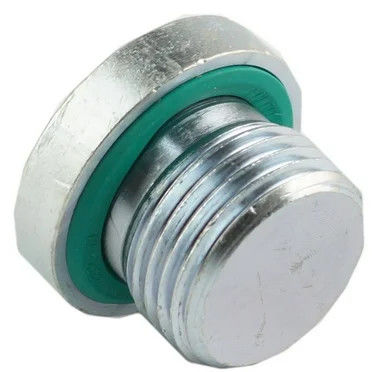

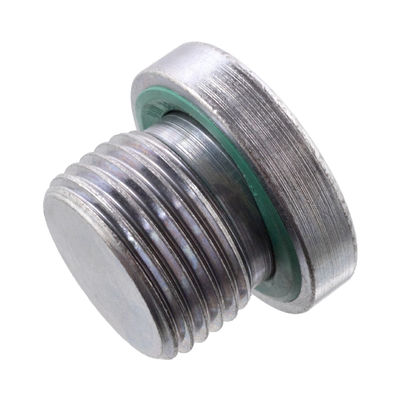

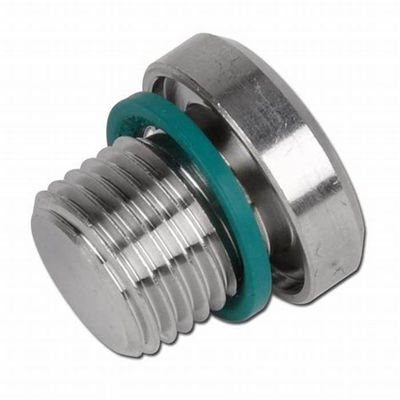

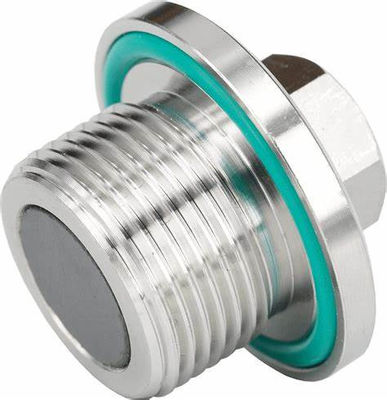

ED ring, also known as ED sealing ring and beveled flat gasket, is an industrial elastic seal with better sealing effect than O-ring. ED ring is mainly used for axial static sealing and is used in threaded oil ports and The cross section of the screw end remains basically constant under high pressure. In addition to having corrosion resistance, high temperature resistance, high pressure resistance, wear resistance and other characteristics similar to O-rings, the ED ring also has the following features: the working pressure can reach 60Mpa, it maintains good sealing properties for a long time, and the cross-sectional mechanical deformation is small. No relative movement during pressure cycles, among many other advantages. In addition to being used for hydraulic plugs, hydraulic transition joints, hydraulic pipe joints, etc., ED rings (beveled flat gaskets) are also widely used in automobiles, aviation, shipbuilding, doors and windows, bearings, cylinders, water pipes, valves, petrochemicals, and biopharmaceuticals. , home furnishings and other industries.
ED ring is an elastomer seal used as an axial static seal. It is used in threaded oil ports and screw ends. Its cross-section remains almost constant under high pressure. Compared with ordinary O-rings, its advantages are:
The mechanical deformation of the cross-section is small, there is no relative movement during the pressure cycle, excellent sealing performance is maintained for a long time, and the working pressure can reach 60Mpa.
Advantages of ED circle:
High temperature resistance, oil resistance, chemical resistance, ozone resistance, weather resistance, anti-aging, chemical solvent resistance, smoldering property, excellent air tightness, and famous for its chemical resistance. Suitable for weak acids and weak bases.
Disadvantages of ED circle:
Intolerant to ketones, lipids, and nitrates;
| SN | Model | d1 | 62 | h1+0.1 | h2 | |
| 8 | M8*1 | ~ | 6.50 | 9.90 | 1.00 | 0.50 |
| 10 | M10*1 | 1/8 | 8.40 | 11.90 | 1.00 | 0.50 |
| 12 | M12*1.5 | ~ | 9.80 | 14.40 | 1.50 | 0.80 |
| 14 | M14*1.5 | 1/4 | 11.50 | 16.50 | 1.50 | 0.80 |
| 16 | M16*1.5 | ~ | 13.80 | 18.90 | 1.50 | 0.80 |
| 17 | ~ | 3/8 | 14.70 | 18.90 | 1.50 | 0.80 |
| 18 | M18*1.5 | ~ | 15.70 | 20.90 | 1.50 | 0.80 |
| 20 | M20*1.5 | ~ | 17.80 | 22.90 | 1.50 | 0.80 |
| 21 | ~ | 1/2 | 18.50 | 23.90 | 1.50 | 0.80 |
| 22 | M22*1.5 | ~ | 19.60 | 24.30 | 1.50 | 0.80 |
| 24 | M24*1.5 | 5/8 | 21.80 | 26.90 | 1.50 | 0.80 |
| 27 | M26*1.5 | 3/4 | 23.90 | 29.20 | 1.50 | 0.80 |
| 27 | M27*2 | 3/4 | 23.90 | 29.20 | 1.50 | 0.80 |
| 33 | M33*2 | 1 | 29.70 | 35.70 | 2.00 | 1.00 |
| 42 | M42*2 | 11/4 | 38.80 | 45.80 | 2.00 | 1.00 |
| 48 | M48*2 | 11/2 | 44.70 | 50.70 | 2.00 | 1.00 |
| 60 | M60*2 | 2 | 56.50 | 66.50 | 4.00 | 2.00 |
