| Brand Name: | FY |
| Model Number: | FY-102 |
| MOQ: | 1 set |
| Price: | USD$ 1500/1400/1300/1200 |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 300 sets per month |

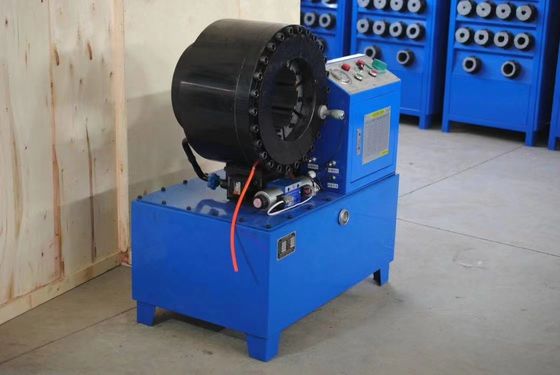

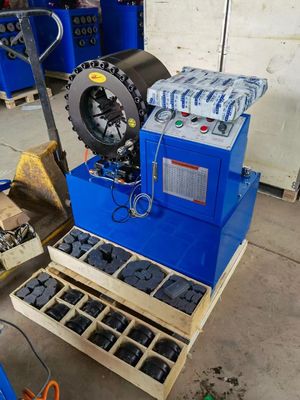

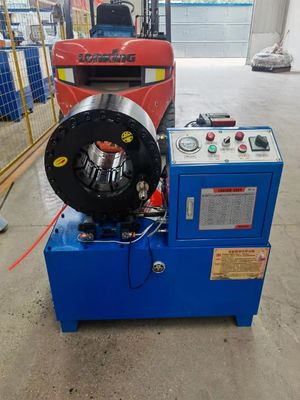

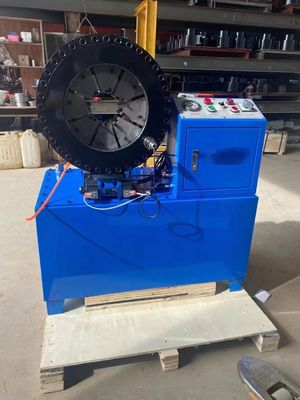

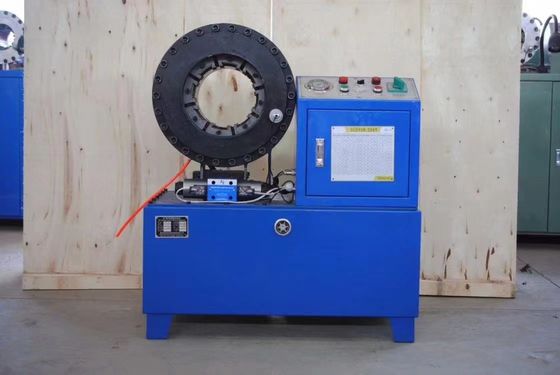

4 inch Industrial Hydraulic Hose Pipe Crimping Machine Compact Structure
Hydraulic Hose Pipe Crimping Machine DESCRIPTION
When using the tube press for the first time, 4 inch hose crimping machine should be crimped 20 to 30 times without load, and 4 inch hose crimping machine can be used after observing that all parts are normal.4 inch Hydraulic Hose Pipe Crimping Machine is a hot sale domestic design hose crimping machine based on DX68 series. It provide 1500T crimping force, can be worked automatically or manually depends on different need. The 4 inch hose crimping machine is offered with wheels, easy for move. With a foot pedal can make the hand free during crimping.
Hydraulic Hose Pipe Crimping Machine Specification
|
crimping range
|
6-102mm(1/4''-4 inch inner diameter of hose)
|
|
quantity of dies
|
16 sets
|
|
item diesNo. of
|
length 60mm(15,19,23,26)
|
|
Length 70mm(31,36,41)
|
|
|
Length 80mm(47,55,60)
|
|
|
accuracy
|
0.01mm
|
|
output volume of pump
|
2.5L/5L/10L(Optional)
|
|
system pressure
|
26Mpa/31.5Mpa(Optional)
|
|
motor power
|
3kw/4kw 1,2,3 phase (Optional)
|
|
voltage
|
220V/380V/415V(Customizable) 50/60Hz
|
|
crimping force
|
1500T
|
|
work efficiency
|
200pcs/h
|
|
maximum open diameter
|
114mm
|
|
the max open tolerance
|
±30mm
|
|
machine dimension
|
850*530*980mm
|
|
package dimension
|
910*590*1210mm
|
|
Net weight
|
510kg
|
|
Gross weight
|
520kg
|
Hose Crimping Machine TECHNICAL DATA
| Model | FY-102 Hose Crimping Machine |
| Crimping Range | 6-102(mm) |
| Crimping Force | 1500(T) |
| Hose Size | 1/4-4(inch) |
| Max. Opening | 30mm |
| Die Sets | 16 |
| Maximum Open Diameter | 183MM |
| System Pressure | 31.5(Mpa) |
| Accuracy | 0.01(mm) |
| Work Efficiency | 200 pcs/h |
| Standard Voltage | 110v/220(V)/240v/380(V)/415v |
| Motor Power | 3(KW)/4(KW) |
| Length | 850(mm) |
| Width | 530(mm) |
| Height | 980(mm) |
| Weight | 510(KG) |
Hydraulic Hose Pipe Crimping Machine MAIN FEATURES
1. Forged crimping clylinder, high hardness;
2. Multifunctional operate panel, two operate mode;
3. Pressure Gauge, system shown clearly during crimping;
4. Foot pedal as standard to make hands free;
5. Working light to make crimping work more clear.
NOTE
- for non standard die sets;
- Customized die sets are available;
- Special voltage 220V, 240V, 380V,415V are availbale;
OPTIONAL
- Quick Change Tool
- Quick Change Die Set Rack;
main product
► DIE SETS WITH HIGH HARDNESS
10 sets dies for hose from 6mm to 51mm, hardness 59-63HRC
