| Brand Name: | FY |
| Model Number: | FY-LSSK51 |
| MOQ: | 1 set |
| Price: | USD$ 2100/2050/2000/1950 |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 300 sets per month |

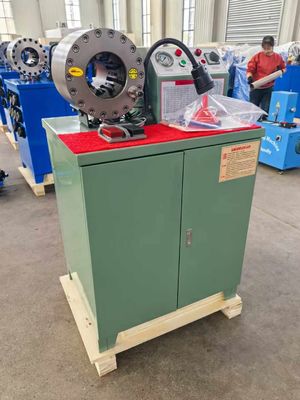

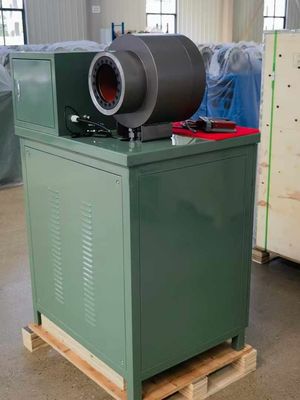

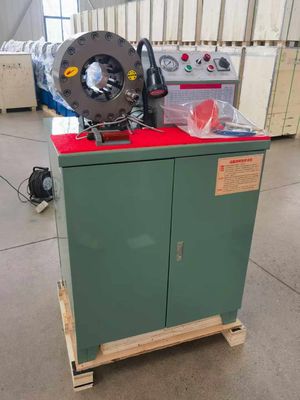

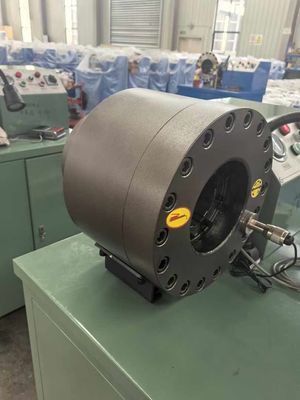

New Technology For Forging Process 6-51mm Compact Structure Hydraulic Hose Pipe Crimping Machine 10 Dies Hose Crimping Machine/Hose Crimper
Hydraulic Hose Pipe Crimping Machine Description
Introducing our innovative semi-automatic electric hydraulic hose crimping machine/Hose Crimping Machine/Hose Crimper, designed with a compact structure for enhanced efficiency. This hydraulic hose crimping machine/Hose Crimping Machine/Hose Crimper features a striking green color and is equipped with 10 versatile dies, making hydraulic hose crimping machine/Hose Crimping Machine/Hose Crimper perfect for a variety of hose sizes. Utilizing cutting-edge forging technology, hydraulic hose crimping machine/Hose Crimping Machine/Hose Crimper ensures precision and reliability in every crimp. Ideal for both industrial and workshop settings, this hydraulic hose crimping machine/Hose Crimping Machine/Hose Crimper combines ease of use with powerful performance, capable of handling demanding tasks with ease. Experience the future of hose crimping with this advanced solution!
Introducing the latest innovation in hose crimping technology: a compact hydraulic hose pipe crimping machine designed for efficiency and precision. This powerful hydraulic hose pipe crimping machine accommodates hoses ranging from 6 to 51mm and includes 10 versatile dies for various applications. Engineered with a robust structure, this green hydraulic hose pipe crimping machine exemplifies durability while ensuring top-notch performance. Experience enhanced productivity and reliability with this state-of-the-art hydraulic hose pipe crimping machine, perfect for your forging processes.

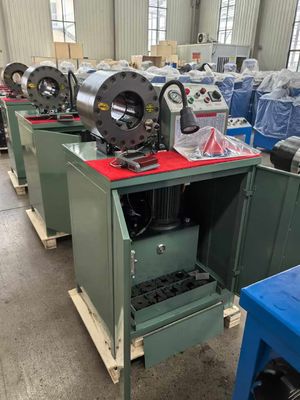

Hydraulic Hose Pipe Crimping Machine mainly by withholding mechanism, motor, gear pumps, control valves and tank components. Suitable for mechanical engineering in the high-pressure hose assembly with hold processing, but also with hold two-way elbow, elbow and large shaped head. Hydraulic Hose Pipe Crimping Machine is a metal fitting through the hydraulic machinery and the corresponding mold with a high pressure hose withhold closely together to prepare a high-pressure hose and fluid connectors, referred to as high-pressure hose assembly. High-pressure hose assemblies are widely used in oil, coal, aerospace, construction machinery, agricultural machinery and other industries etc.
Hydraulic Hose Pipe Crimping Machine Specification
| crimping range | 6-51 mm |
| quantity of dies | 10 sets |
| accuracy | 0.01 mm |
| output volume of pump | 10L |
| system pressure | 31.5mpa |
| motor power | 3kw/4kw |
| voltage | 110v/220v/240v/380v/415v(optional) |
| crimping force | 600 t |
| work efficiency | 200 pcs/h |
| maximum open diameter | 114 mm |
| the max open tolerance | 30 ±mm |
| machine dimension | 860*640*1300 mm |
| package dimension | 900*685*1410 mm |
| net weight | 310 kg |
| gross weight | 325 kg |
Hydraulic Hose Pipe Crimping Machine TECHNICAL DATA
| Model | FY-LSSK51 Hose Pipe Crimping Machine |
| Crimping Range | 6-51(mm) |
| Crimping Force | 600(T) |
| Hose Size | 1/4-2(inch) |
| Max. Opening | 30mm |
| Die Sets | 10 |
| Maximum Open Diameter | 114MM |
| System Pressure | 31.5(Mpa) |
| Accuracy | 0.01(mm) |
| Work Efficiency | 200 pcs/h |
| Standard Voltage | 110v/220v/240v/380v/415v(optional) |
| Motor Power | 3(KW)/4(KW) |
| Length | 860(mm) |
| Width | 640(mm) |
| Height | 1300(mm) |
| Weight | 310(KG) |
Hydraulic Hose Pipe Crimping Machine MAIN FEATURES

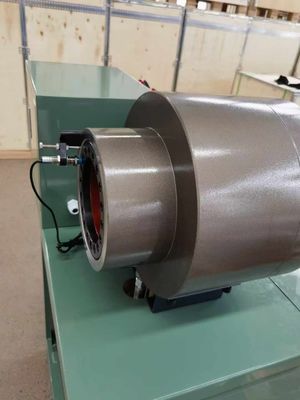

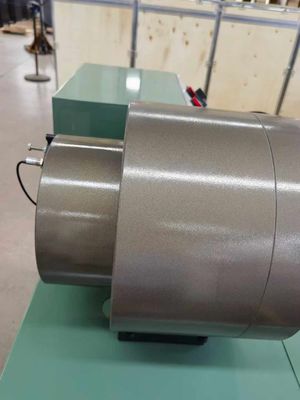

1. Forged crimping clylinder, high hardness;
2. Multifunctional operate panel, two operate mode;
3. Pressure Gauge, system shown clearly during crimping;
4. Foot pedal as standard to make hands free;
5. Working light to make crimping work more clear.
NOTE
- for non standard die sets;
- Customized die sets are available;
- Special voltage 220V, 240V, 380V,415V are availbale;
OPTIONAL
- Quick Change Tool
- Quick Change Die Set Rack;
main product

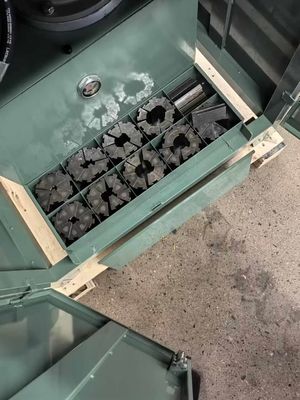

► DIE SETS WITH HIGH HARDNESS
11 sets dies for hose from 4mm to 51mm, hardness 59-63HRC
