| Brand Name: | FY |
| Model Number: | FY-LSSK51 |
| MOQ: | 1 set |
| Price: | USD$ 1500/1400/1300/1200 |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 300 sets per month |

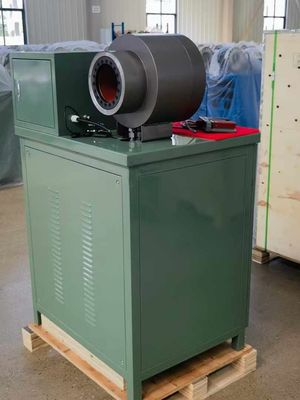

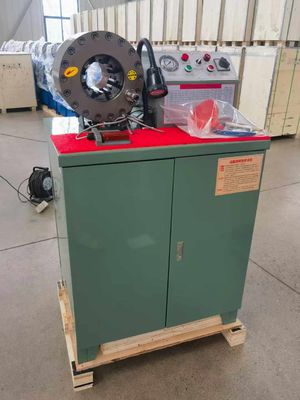

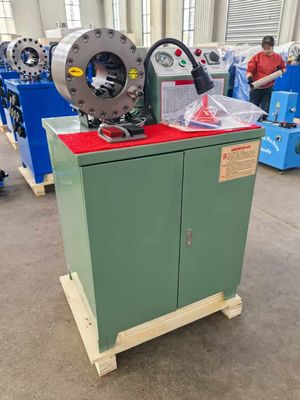

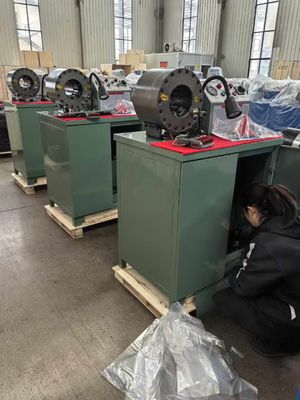

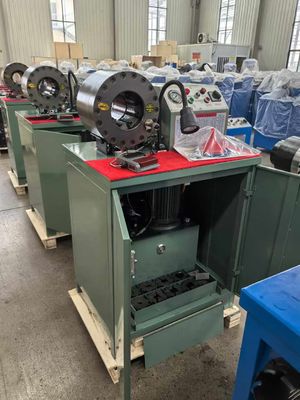

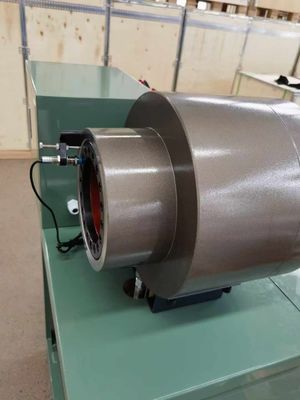

2 Inch Forging Process Hydraulic Hose Crimping Machine 10 Dies Hose Crimping Machine / Hose Crimper
Hydraulic Hose Pipe Crimping Machine Description
Presenting the 2-inch hydraulic hose crimping machine, featuring a cutting-edge forging process. This hydraulic hose crimping machine is equipped with 10 dies, enabling versatile crimping options for various hose types. hydraulic hose crimping machine robust design ensures durability and efficiency, making hydraulic hose crimping machine an essential tool for professionals in the industry. The vibrant green finish adds a modern touch, while the high-performance capabilities make hydraulic hose crimping machine reliable for all your hose crimping needs.
Hydraulic Hose Pipe Crimping Machine mainly by withholding mechanism, motor, gear pumps, control valves and tank components. Suitable for mechanical engineering in the high-pressure hose assembly with hold processing, but also with hold two-way elbow, elbow and large shaped head. Hydraulic Hose Pipe Crimping Machine is a metal fitting through the hydraulic machinery and the corresponding mold with a high pressure hose withhold closely together to prepare a high-pressure hose and fluid connectors, referred to as high-pressure hose assembly. High-pressure hose assemblies are widely used in oil, coal, aerospace, construction machinery, agricultural machinery and other industries etc.
Hydraulic Hose Pipe Crimping Machine Specification
| crimping range | 4-51 mm |
| quantity of dies | 11 sets |
| accuracy | 0.01 mm |
| output volume of pump | 10L |
| system pressure | 31.5mpa |
| motor power | 3kw/4kw |
| voltage | 110v/220v/240v/380v/415v(optional) |
| crimping force | 600 t |
| work efficiency | 200 pcs/h |
| maximum open diameter | 114 mm |
| the max open tolerance | 30 ±mm |
| machine dimension | 860*640*1300 mm |
| package dimension | 900*685*1410 mm |
| net weight | 310 kg |
| gross weight | 325 kg |
Hydraulic Hose Pipe Crimping Machine TECHNICAL DATA
| Model | FY-LSSK51 Hose Pipe Crimping Machine |
| Crimping Range | 4-51(mm) |
| Crimping Force | 600(T) |
| Hose Size | 1/8-2(inch) |
| Max. Opening | 30mm |
| Die Sets | 11 |
| Maximum Open Diameter | 114MM |
| System Pressure | 31.5(Mpa) |
| Accuracy | 0.01(mm) |
| Work Efficiency | 200 pcs/h |
| Standard Voltage | 110v/220v/240v/380v/415v(optional) |
| Motor Power | 3(KW)/4(KW) |
| Length | 860(mm) |
| Width | 640(mm) |
| Height | 1300(mm) |
| Weight | 310(KG) |
Hydraulic Hose Pipe Crimping Machine MAIN FEATURES

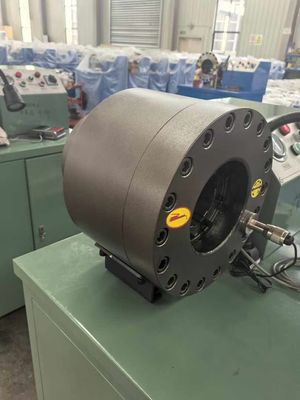

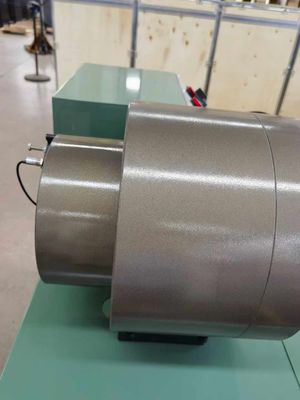

1. Forged crimping clylinder, high hardness;
2. Multifunctional operate panel, two operate mode;
3. Pressure Gauge, system shown clearly during crimping;
4. Foot pedal as standard to make hands free;
5. Working light to make crimping work more clear.
NOTE
- for non standard die sets;
- Customized die sets are available;
- Special voltage 220V, 240V, 380V,415V are availbale;
OPTIONAL
- Quick Change Tool
- Quick Change Die Set Rack;

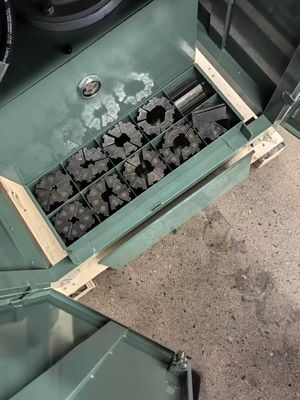

► DIE SETS WITH HIGH HARDNESS
10 sets dies for hose from 6mm to 51mm, hardness 59-63HRC
