| Brand Name: | FY |
| Model Number: | FY-DX68 |
| MOQ: | 1 set |
| Price: | USD$ 1850/1800/1750/1700 |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 300 sets per month |
Hot Selling In European And American Countries Yellow Color DX68 Finn Power Hose Crimper 600T High Accuracy With Big Power

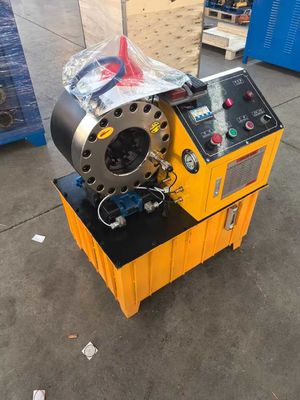

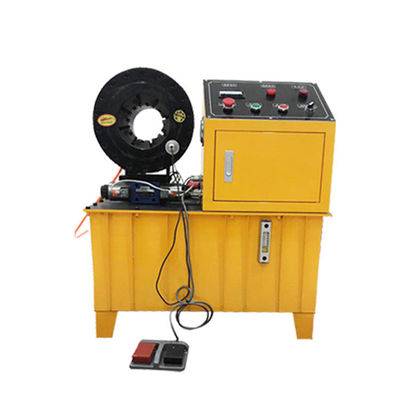

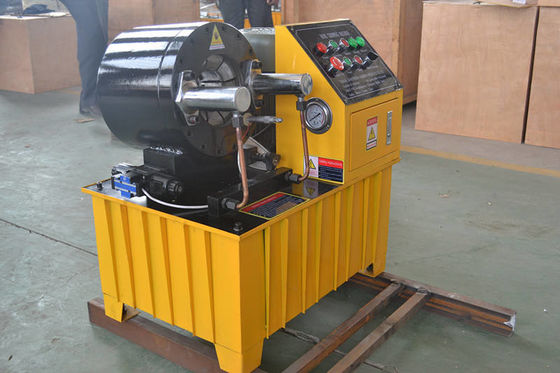

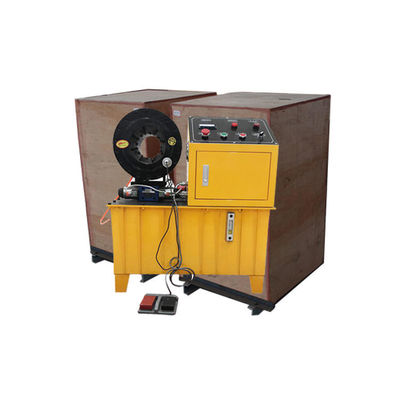

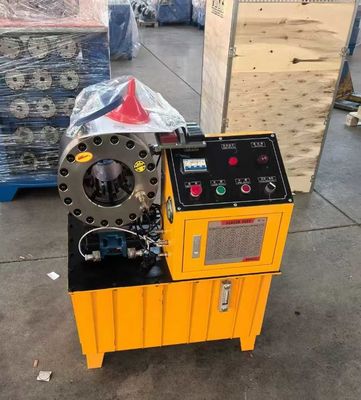

Product Name: DX68 Finn Power Hose Crimper
Color: Yellow
Crimping Force: 600 Tons
High Accuracy: Designed for precise crimping
Key Features:
MAIN FEATURES
1. Forged crimping clylinder, high hardness;
2. Multifunctional operate panel, two operate mode;
3. Pressure Gauge, system shown clearly during crimping;
4. Foot pedal as standard to make hands free;
5. Working light to make crimping work more clear.
TECHNICAL DATA
| Model | FY-DX68 Hose Crimping Machine |
| Crimping Range | 6-51(mm) |
| Crimping Force | 600(T) |
| Hose Size | 1/4-2(inch) |
| Max. Opening | 30mm |
| Die Sets | 10 |
|
Maximum Open Diameter |
114MM |
| System Pressure | 31.5(Mpa) |
| Accuracy | 0.01(mm) |
|
Work Efficiency |
200 pcs/h |
| Standard Voltage | 220(V)/380(V) |
| Motor Power | 3(KW)/4(KW0 |
| Length | 730(mm) |
| Width | 480(mm) |
| Height | 740(mm) |
| Weight | 245(KG) |
NOTE
- for non standard die sets;
- Customized die sets are available;
- Special voltage 220V, 240V, 380V,415V are availbale;
OPTIONAL
- Quick Change Tool
- Quick Change Die Set Rack;
► DIE SETS WITH HIGH HARDNESS
10 sets dies for hose from 6mm to 51mm, hardness 59-63HRC
