| Brand Name: | FY |
| Model Number: | FY-51WS |
| MOQ: | 1 set |
| Price: | USD$ 3500/3400/3300/3200 |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 300 sets per month |

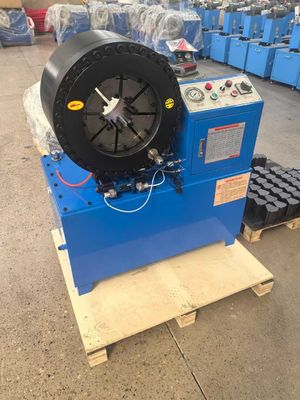

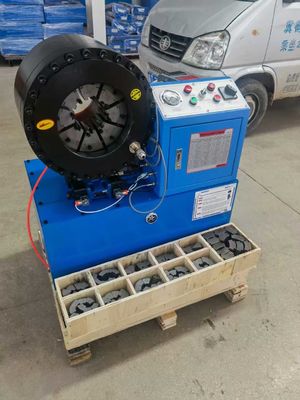

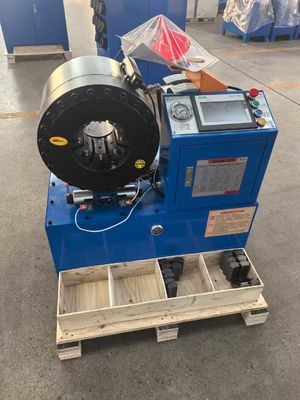

3 Inch /4 inch Industrial Hydraulic Hose Pipe Crimping Machine Compact Structure
Hydraulic Hose Pipe Crimping Machine DESCRIPTION
Product Name: Electric Hydraulic Hose Crimping Machine
Model: Shorter Model
Crimping Capacity: 3 Inch and 4 Inch
Color: Blue
Power Rating: 3 kW
Control System: Button Control
Structure: Compact Design
Key Features:
Market Advantage:
Hydraulic Hose Pipe Crimping Machine Specification
|
crimping range
|
6-76mm(1/4''-3''/4 inch inner diameter of hose)
|
|
quantity of dies
|
10 sets
|
|
item diesNo. of
|
length 60mm(15,19,23,26)
|
|
Length 70mm(31,36,41)
|
|
|
Length 80mm(47,55,60)
|
|
|
accuracy
|
0.01mm
|
|
output volume of pump
|
2.5L/5L/10L(Optional)
|
|
system pressure
|
26Mpa/31.5Mpa(Optional)
|
|
motor power
|
3kw/4kw 1,2,3 phase (Optional)
|
|
voltage
|
220V/380V/415V(Customizable) 50/60Hz
|
|
crimping force
|
600T
|
|
work efficiency
|
200pcs/h
|
|
maximum open diameter
|
114mm
|
|
the max open tolerance
|
±30mm
|
|
machine dimension
|
730*480*740mm
|
|
package dimension
|
1070*640*1150mm
|
|
Net weight
|
245kg
|
|
Gross weight
|
260kg
|
Hose Crimping Machine TECHNICAL DATA
| Model | FY-51WS Hose Crimping Machine |
| Crimping Range | 6-51(mm) |
| Crimping Force | 600(T) |
| Hose Size | 1/4-2(inch) |
| Max. Opening | 30mm |
| Die Sets | 10 |
| Maximum Open Diameter | 114MM |
| System Pressure | 31.5(Mpa) |
| Accuracy | 0.01(mm) |
| Work Efficiency | 200 pcs/h |
| Standard Voltage | 220(V)/380(V) |
| Motor Power | 3(KW)/4(KW0 |
| Length | 730(mm) |
| Width | 480(mm) |
| Height | 740(mm) |
| Weight | 245(KG) |
Hydraulic Hose Pipe Crimping Machine MAIN FEATURES
1. Forged crimping clylinder, high hardness;
2. Multifunctional operate panel, two operate mode;
3. Pressure Gauge, system shown clearly during crimping;
4. Foot pedal as standard to make hands free;
5. Working light to make crimping work more clear.
NOTE
- for non standard die sets;
- Customized die sets are available;
- Special voltage 220V, 240V, 380V,415V are availbale;
OPTIONAL
- Quick Change Tool
- Quick Change Die Set Rack;
main product

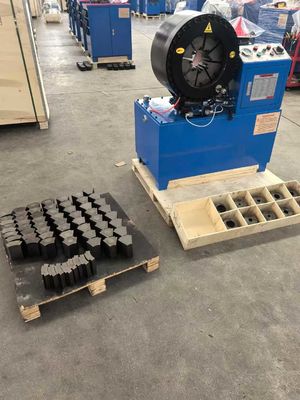

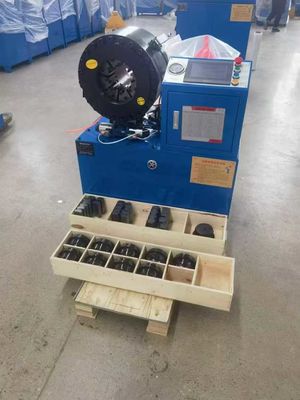

► DIE SETS WITH HIGH HARDNESS
10 sets dies for hose from 6mm to 51mm, hardness 59-63HRC
