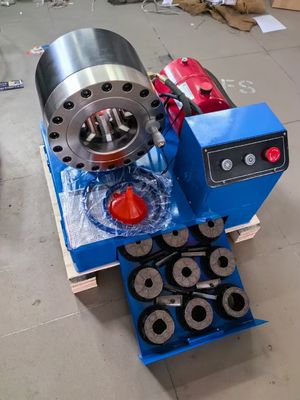

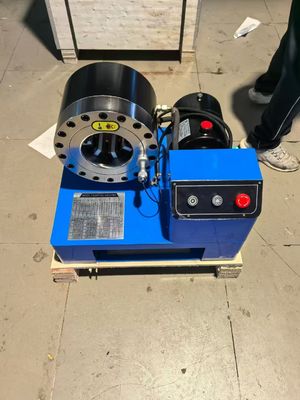

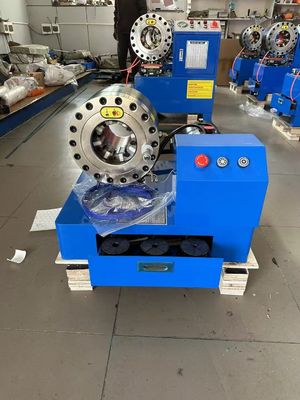

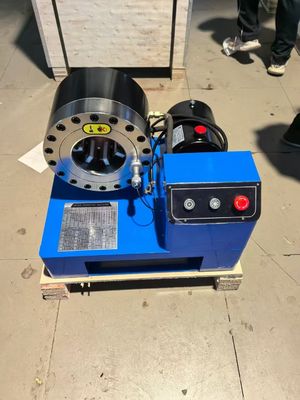

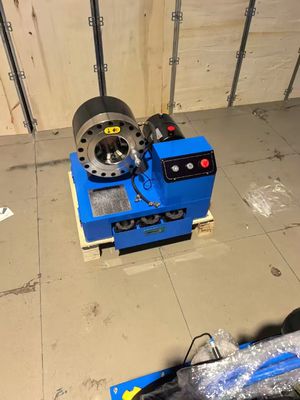

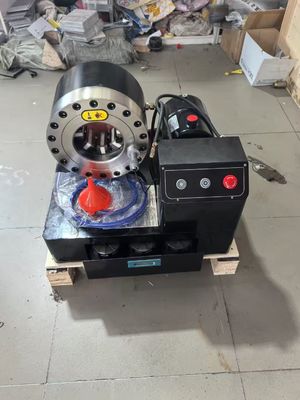

South africa high pressure techmaflex hydraulic hose crimping machine
DESCRIPTION
Product Name: Hydraulic Hose Crimping Machine
Hose Diameter Range: 6 to 51mm (up to 2 Inch)
Layer Compatibility: 1-4 Layers of Hose
Includes: 10 Dies for Versatile Applications
High Pressure Capability: Designed for high-pressure applications
Key Features:
FY-51CZ hose crimping machine have two overflow valve. The high pressure overflow valve works when pipes are crimped. High pressure overflow valve could ensure the heavy pressure and high quality products, The low overflow valve works when molds are opened. Low pressure overflow valve could avoid oil seal bearing heavy pressure ,so as to increase its life period.
OUR MACHINE'S LEADING ADVANTAGES:
► Use the 12V/24V battery as a power, crimping force can be reach 2800 KN
► The stable quality crimping performance find expression in high pressure
► The most popular applications for these suitable are in repair shop and industrial maintenance unit
TECHNICAL DATA
| Model | FY-51CZ Pipe Crimping Machine |
| Crimping Range | 6-51(mm) |
| Crimping Force | 600(T) |
| Hose Size | 1/4-2(inch) |
| Max. Opening | 114(mm) |
| Die Sets | 10 |
|
output volume of pump
|
4L |
| System Pressure | 30(Mpa) |
| Accuracy | 0.01(mm) |
|
the max open tolerance
|
30 ±mm
|
| Standard Voltage | 12V/24(V) |
| Motor Power | 3.6(KW) |
| Length | 650(mm) |
| Width | 600(mm) |
| Height | 600(mm) |
| Weight | 170(KG) |
NOTE
• " * " for non standard die sets
• Customized die sets with different shape size ia available
• Voltage 12V/24V is available
OPTIONAL
• Quick Change Tool
• Quick Change Die Set Rack
• Car installing unit
► FORGED CYLINDER
One piece structure, prevent oil leackage problem, save oil transfer time, increase productivity
► MICROMETER
FY51CZ is with high accuracy dial, 0.01mm.
► DIE SET REFERENCE SHEET
This sheet tells you how to choose proper die set for different crimping size
► WIDE USAGE
FY-51CZ Crimping machine can be used in a mobile van which can supply 12V/24V power.
For high pressure oil rubber hose assmbly crimping, low pressure water or air hose pressing, steel tube
swaging, wire rope pressing, lock device making, etc.
