12V / 24V 7 Dies Blue Color Car Loading 1 Inch Braided Hose Crimper Battery Drive Hydraulic Hose Press Machine 6-25mm

Name: 12V / 24V 7 Dies Blue Color Car Loading 1 Inch Braided Hose Crimper Battery Drive Hydraulic Hose Press Machine 6-25mm
Brand: Shanghai Fanying Machinery Technology Co., Ltd.
SKU: FY-25CZ
Price: 5,249.18 USD
Availability: InStock

Brand Name:	FY
Model Number:	FY-25CZ
MOQ:	1 set
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	300 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai,China

Certification:

Reinforcement:

1-4 Layers Wire/4 SP

Crimping Range:

6-25 Mm/1 Inch

Quantity Of Dies:

7 Sets For Standard Support

Accuracy:

0.1 Cm

System Pressure:

300bar

Motor Power:

1.5kw

Voltage:

12v/24v(optional),depend On Cliend Demand

Crimping Force:

0.6Mt

Product Name:

12V/24V With 7 Dies Blue Color Car Loading 1 Inch Braided Hose Crimper Battery Drive Hydraulic Hose Press Machine/Hose Crimping Machine 6-25mm

Packaging Details:

export standard wooden box

Supply Ability:

300 sets per month

Highlight:

Battery Drive Hydraulic Hose Press Machine

1 Inch Hydraulic Hose Press Machine

24V Hydraulic Hose Press Machine

Product Description

12V/24V With 7 Dies Blue Color Car Loading 1 Inch Braided Hose Crimper Battery Drive Hydraulic Hose Press Machine/Hose Crimping Machine 6-25mm

Product Description

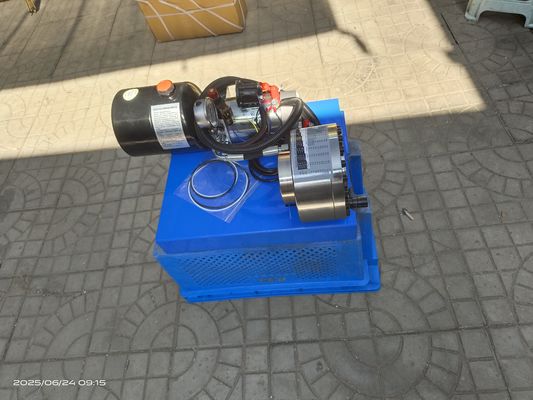

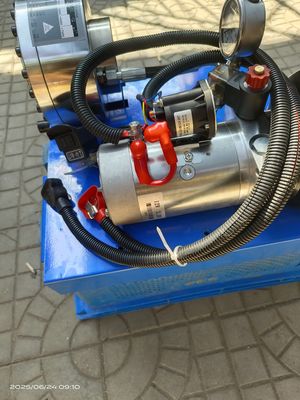

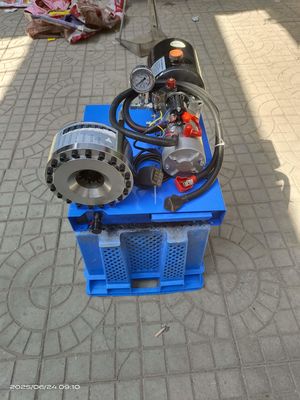

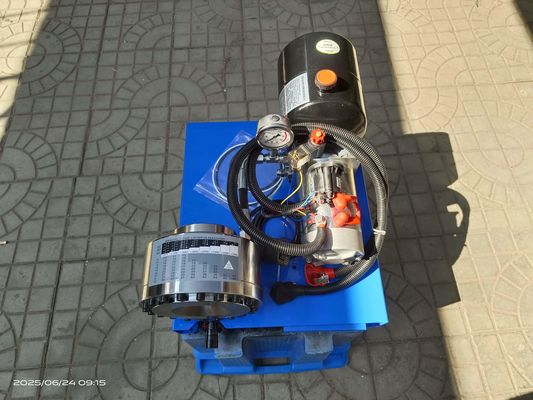

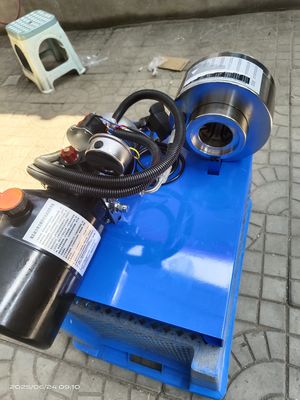

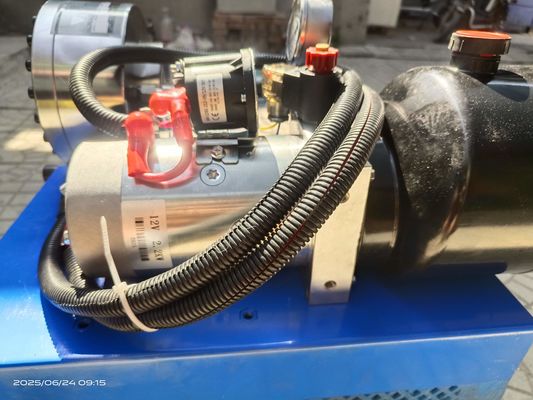

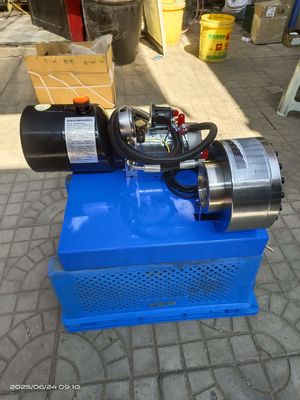

Introducing our 12V/24V Hydraulic Hose Crimping Machine, designed for efficiency and versatility in automotive applications. This battery-driven crimper is capable of handling 1-inch braided hoses with a size range of 6mm to 25mm. Equipped with 7 dies, this machine ensures precise and reliable crimping every time.

Key Features

Dual Voltage Operation: The machine operates at both 12V and 24V, allowing for flexibility and ease of use in various environments.
Versatile Hose Compatibility: Designed to crimp hoses ranging from 6mm to 25mm, making it suitable for a variety of applications.
7 Crimping Dies: Comes with seven different dies to accommodate various hose sizes, ensuring versatility and precision.
Compact and Portable: Lightweight design makes it easy to transport, perfect for on-site repairs and mobile operations.

Advantages

Efficient Crimping: The automatic operation reduces crimping time, enhancing productivity and workflow.
Durable Design: Built from high-quality materials, this crimper is designed for longevity and reliable performance in demanding conditions.
User-Friendly: The intuitive design allows operators of all skill levels to use the machine effectively, ensuring consistent results.
Enhanced Visibility: The blue color of the machine not only adds aesthetic appeal but also makes it easy to identify in a busy workspace.

Model	FY-25CZ Pipe Crimping Machine
Crimping Range	6-25(mm)/1inch
Crimping Force	600(T)/0.6MT
Hose Size	1/4-1(inch)/6-25mm hose inner diameter
Max. Opening	114(mm)
Die Sets	7
output volume of pump	4L
System Pressure	30(Mpa)/300 Bar
Accuracy	0.01(mm)/0.1cm
the max open tolerance	30 ±mm
Standard Voltage	12V/24(V) depend on client demand
Motor Power	1.5(KW)
Length	600(mm)/60 cm
Width	450(mm)/45 cm
Height	350(mm)/35 cm
Weight	52(KG)/machine's net weight

12V / 24V 7 Dies Blue Color Car Loading 1 Inch Braided Hose Crimper Battery Drive Hydraulic Hose Press Machine 6-25mm 0

12V / 24V 7 Dies Blue Color Car Loading 1 Inch Braided Hose Crimper Battery Drive Hydraulic Hose Press Machine 6-25mm 1

12V / 24V 7 Dies Blue Color Car Loading 1 Inch Braided Hose Crimper Battery Drive Hydraulic Hose Press Machine 6-25mm 2

12V / 24V 7 Dies Blue Color Car Loading 1 Inch Braided Hose Crimper Battery Drive Hydraulic Hose Press Machine 6-25mm 3

12V / 24V 7 Dies Blue Color Car Loading 1 Inch Braided Hose Crimper Battery Drive Hydraulic Hose Press Machine 6-25mm 4

12V / 24V 7 Dies Blue Color Car Loading 1 Inch Braided Hose Crimper Battery Drive Hydraulic Hose Press Machine 6-25mm 5

12V / 24V 7 Dies Blue Color Car Loading 1 Inch Braided Hose Crimper Battery Drive Hydraulic Hose Press Machine 6-25mm 6

12V / 24V 7 Dies Blue Color Car Loading 1 Inch Braided Hose Crimper Battery Drive Hydraulic Hose Press Machine 6-25mm 7

NOTE
• " * " for non standard die sets
• Customized die sets with different shape size ia available
• Voltage 12V/24V is available

Crimping Range	6-25mm(1/4''-1''inner diameter of hose)
The Largest Crimping Pressure	600T
accurcy	0.01mm
Dimension	0.6m0.45m0.35m(0.1 m³)
Maximum open diameter	114mm
dies	7 sets
Item No.of dies	length 60mm(15,19,23,26);Length 70mm(31,36,41);Length 80mm(47)
Output volume of pump	4L
Rated pressure	30Mpa/300 BAR
Work efficiency	200pcs/h
Weight	52kg/machine's net weight
packing dimension	620470370mm

OPTIONAL
• Quick Change Tool
• Quick Change Die Set Rack
• Car installing unit

12V / 24V 7 Dies Blue Color Car Loading 1 Inch Braided Hose Crimper Battery Drive Hydraulic Hose Press Machine 6-25mm 8

► FORGED CYLINDER
One piece structure, prevent oil leackage problem, save oil transfer time, increase productivity

► MICROMETER
FY25CZ is with high accuracy dial, 0.01mm.

12V / 24V 7 Dies Blue Color Car Loading 1 Inch Braided Hose Crimper Battery Drive Hydraulic Hose Press Machine 6-25mm 9

► DIE SET REFERENCE SHEET
This sheet tells you how to choose proper die set for different crimping size

12V / 24V 7 Dies Blue Color Car Loading 1 Inch Braided Hose Crimper Battery Drive Hydraulic Hose Press Machine 6-25mm 10

► WIDE USAGE
FY-25CZ Crimping machine can be used in a mobile van which can supply 12V/24V power.
For high pressure oil rubber hose assmbly crimping, low pressure water or air hose pressing, steel tube
swaging, wire rope pressing, lock device making, etc.

12V / 24V 7 Dies Blue Color Car Loading 1 Inch Braided Hose Crimper Battery Drive Hydraulic Hose Press Machine 6-25mm 11
