P38 Hydraulic Hose Crimping Machine 6-38mm 300T Force 8 Die Sets

Name: P38 Hydraulic Hose Crimping Machine 6-38mm 300T Force 8 Die Sets
Brand: Shanghai Fanying Machinery Technology Co., Ltd.
SKU: FY-P38
Price: 1,725.00 USD
Availability: InStock

Brand Name:	FY
Model Number:	FY-P38
MOQ:	1 set
Price:	USD$ 1850/1800/1750/1700
Payment Terms:	L/C,T/T,D/A,D/P,Western Union,MoneyGram
Supply Ability:	300 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China,Shanghai

Certification:

Voltage:

220V/240V/380V/415V(Optional)

Gross Weight:

300kgs

Net Weight:

275kg

Power(w):

3KW/4KW

Dimension(l*w*h):

950*630*700 Mm

Package Dimension:

1000*680*750 Mm

Warranty:

1 Year

Condition:

New

After-sales Service Provided:

Video Technical Support,Online Support

Crimping Force:

300Ton/0.3MT

Product Name:

6-38mm 1.5 Inch Hose Crimping Machine P38 Braided Hose Crimper High Accuracy 1.5 With Rack And Fast Change Mould Tools/Hydraulic Hose Pressor/hose Crimper

Crimping Range:

6-38mm/1.5 Inch/2 Inch

Color:

Blue,blue Or Customize

Application:

Crimp Hose

Free Dies:

8sets

System Pressure:

26MPA/31.5MPA/260 Bar/315 Bar

Output Volume Of Pump:

2.5L/5L

HIGH LIGHT:

Advanced Hydraulic Pipe Crimping Machine, Dash Control Hydraulic Pipe Crimping Machine, Pipe Crimping Machine

Packaging Details:

wooden box

Supply Ability:

300 sets per month

Highlight:

P38 hydraulic hose crimper 300T force

hydraulic hose crimping machine 6-38mm

8 die sets hose crimping tool

Product Description

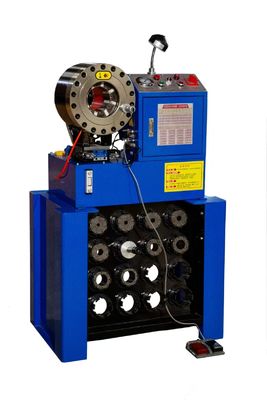

6-38mm 1.5 Inch Hose Crimping Machine P38

Product Overview

The P38 model hydraulic hose crimping machine delivers high-precision crimping for hoses ranging from 6mm to 38mm (1/4" to 1.5"). Featuring a robust construction with rack and fast-change mold tools, this industrial-grade crimper ensures efficient hose assembly for various applications.

Key Specifications

Crimping Range	6-38mm (1/4"-1.5")
Crimping Force	300 Ton
System Pressure	26/31.5 MPA (Optional)
Power	3KW/4KW
Work Efficiency	200 pcs/hour
Dimensions	950×630×700 mm
Weight	275 kg
Voltage Options	220V/240V/380V/415V

Key Features

High Precision: 0.01mm ruler accuracy ensures leak-proof connections
Fast Change Mold System: Includes 8 die sets for quick size transitions
Advanced Hydraulic System: 300T crimping force with 26/31.5 MPA pressure
Durable Construction: Forged oil cylinder and premium components
Versatile Application: Suitable for hydraulic, industrial, and automotive hoses

Technical Specifications

Parameter	Specification
Model	FY-P38
Maximum Opening	20±mm
Maximum Open Diameter	104mm
Output Volume of Pump	2.5L/5L (Optional)
Die Sets Included	8 sets (Various sizes from 15-60mm)

Advanced Features

PLC Control System

Multifunctional control panel with different operation modes for precise control.

Premium Die Sets

8 hardened die sets (59-63HRC) with quick-change tool for improved productivity.

High-Quality Components

Features a forged oil cylinder for superior anti-wear performance and famous brand motor for reliable operation.

Applications

The FY-P38 is capable of crimping various hose types including:

High-pressure stainless steel braided hydraulic hoses
Industrial flexible pipes
Air/water hoses and cables
Automotive brake lines and air suspension systems

Note: Custom die sets and special voltage configurations (220V, 240V, 380V, 415V) are available upon request.

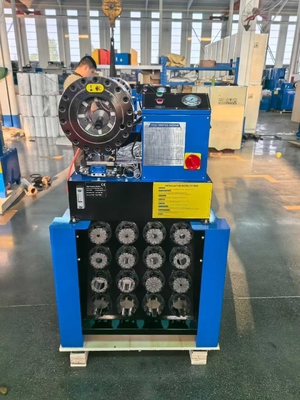

P38 Hydraulic Hose Crimping Machine 6-38mm 300T Force 8 Die Sets 7
