2 Inch P38 Hydraulic Hose Crimping Machine 1/4 to 2 Inch Range

Name: 2 Inch P38 Hydraulic Hose Crimping Machine 1/4 to 2 Inch Range
Brand: Shanghai Fanying Machinery Technology Co., Ltd.
SKU: FY-P38
Price: 1,725.00 USD
Availability: InStock

Brand Name:	FY
Model Number:	FY-P38
MOQ:	1 set
Price:	USD$ 1850/1800/1750/1700
Payment Terms:	L/C,T/T,D/A,D/P,Western Union,MoneyGram
Supply Ability:	300 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China,Shanghai

Certification:

Voltage:

220V/240V/380V/415V(Optional)

Gross Weight:

300kgs

Net Weight:

275kg

Power(w):

3KW/4KW

Dimension(l*w*h):

950*630*700 Mm

Package Dimension:

1000*680*750 Mm

Warranty:

1 Year

Condition:

New

After-sales Service Provided:

Video Technical Support,Online Support

Crimping Force:

300Ton/0.3MT

Product Name:

2 Inch From 1/4 To 2 Inch Hose Crimping Machine/Hose Crimper P38 Braided Hose Crimper High Accuracy 2 Inch With Rack And Fast Change Mould Tools/Hydraulic Hose Pressor

Crimping Range:

6-38mm/1.5 Inch/2 Inch

Color:

Blue,blue Or Customize

Application:

Crimp Hose

Free Dies:

8sets

System Pressure:

26MPA/31.5MPA/260 Bar/315 Bar

Output Volume Of Pump:

2.5L/5L

HIGH LIGHT:

Advanced Hydraulic Pipe Crimping Machine, Dash Control Hydraulic Pipe Crimping Machine, Pipe Crimping Machine

Packaging Details:

wooden box

Supply Ability:

300 sets per month

Highlight:

2 inch hydraulic hose crimper

P38 hydraulic crimping machine

1/4 to 2 inch hose crimper

Product Description

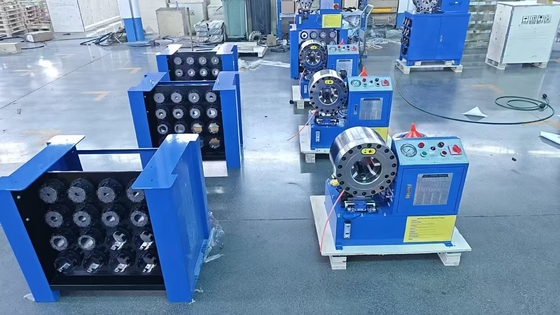

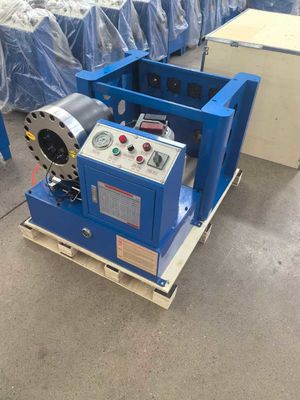

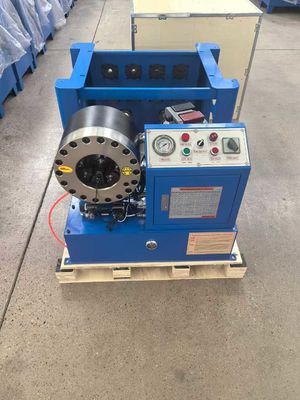

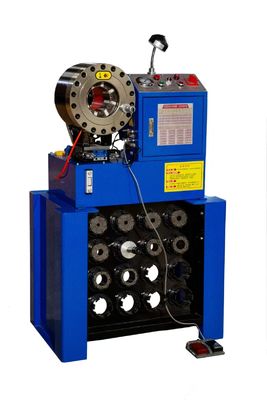

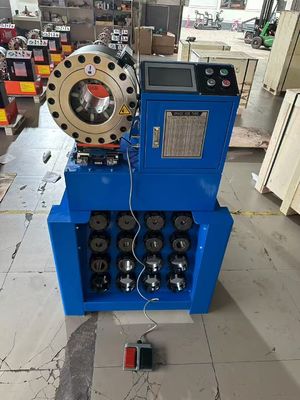

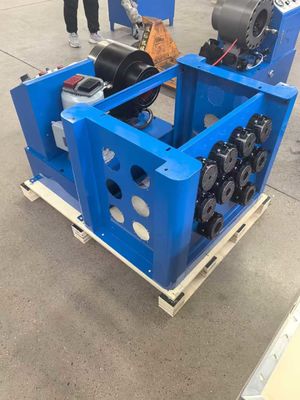

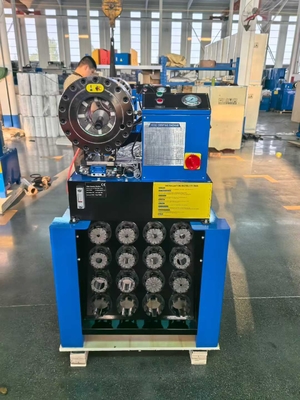

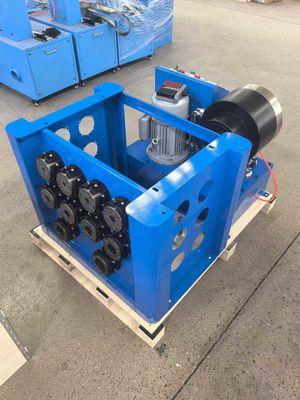

2 Inch Hose Crimping Machine - P38 Model

The 2 Inch Hose Crimping Machine (P38) is designed for high-accuracy crimping of hoses ranging from 1/4 inch to 2 inches. This advanced crimper features a rack and fast-change mold tools, making it ideal for quick and efficient hose assembly, particularly for braided hoses.

Key Features

High Accuracy Crimping: Ensures precise crimping for secure, leak-proof connections
Versatile Hose Compatibility: Crimps hoses from 1/4 inch to 2 inches
Fast Change Mold Tools: Quick adjustments between different hose sizes
Robust Construction: High-quality materials for durability in demanding environments
User-Friendly Design: Intuitive controls for operators of all skill levels

Technical Specifications

Attribute	Value
Model	FY-P38 Hose Crimping Machine
Crimping Range	6-38mm (1/4"-1.5")
Crimping Force	300T
System Pressure	26Mpa/31.5Mpa (Optional)
Accuracy	0.01mm
Work Efficiency	200 pcs/h
Voltage Options	220V/240V/380V/415V
Motor Power	3KW/4KW
Dimensions (L×W×H)	950×630×700 mm
Weight	275kg
Die Sets Included	8 sets
