2 Inch Hydraulic Hose Crimping Machine with Efficient Hose Processing User-Friendly Operation and High Efficiency

Name

2 Inch Hydraulic Hose Crimping Machine with Efficient Hose Processing User-Friendly Operation and High Efficiency

Brand Name: FY
Model Number: FY-51YTJ
MOQ: 1 set
Price: USD$ 1450/1400/1350/1300
Payment Terms: L/C,T/T,D/A,D/P,Western Union,MoneyGram
Supply Ability: 300 sets per month
Detail Information
Product Description
Detail Information
Place of Origin:
China,Shanghai
Certification:
CE
System Pressure:
26Mpa/31.5Mpa(Optional)
Quantity Of Dies:
10 Sets
Crimping Range:
6-51mm(1/4''-2'' Inch Inner Diameter Of Hose)
Net Weight:
310kgs
HIGH LIGHT:
Hydraulic Hose Crimping Machine, Flexible Hydraulic Hose Crimping Machine, Flexible Hose Crimping Machine
Application:
Crimp Hose And Skiving Hose
After-sales Service Provided:
Video Technical Support,Online Support
Machine Dimension(l*w*h):
970*540*1050 Mm
Product Name:
2 Inch Hydraulic Hose Crimping/Skiving Machine With Double Functions And 310kgs Net Weight For Efficient Hose Processing
Packaging Details:
wooden box
Supply Ability:
300 sets per month
Highlight:

Efficient Hose Processing Hydraulic Hose Crimping Machine

,

User-Friendly Operation Hose Crimper

,

High Efficiency Hydraulic Crimper

Product Description
2 Inch Hydraulic Hose Crimping/Skiving Machine with Double Functions
This robust 310kg hydraulic machine combines crimping and skiving functions for efficient hose processing. Designed for industrial applications, it handles hoses up to 2 inches in diameter with precision and reliability.
Key Features
  • Dual Functionality: Performs both crimping and skiving operations
  • Heavy-Duty Construction: 310kg net weight ensures stability during operation
  • Wide Compatibility: Processes hoses from 1/4" to 2" inner diameter
  • Precision Engineering: 0.01mm accuracy for consistent results
  • High Productivity: Capable of processing 200 pieces per hour
Technical Specifications
Attribute Value
System Pressure 26Mpa/31.5Mpa (Optional)
Crimping Range 6-51mm (1/4"-2" inner diameter)
Quantity of Dies 10 sets included
Accuracy 0.01mm
Work Efficiency 200pcs/h
Gross Weight 320kg
Product Images

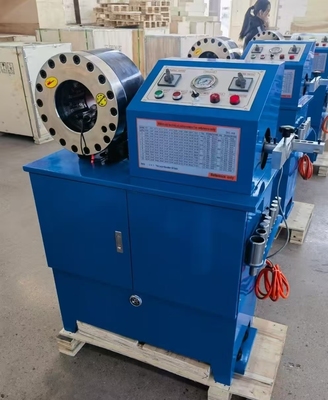

2 Inch Hydraulic Hose Crimping Machine with Efficient Hose Processing User-Friendly Operation and High Efficiency 0

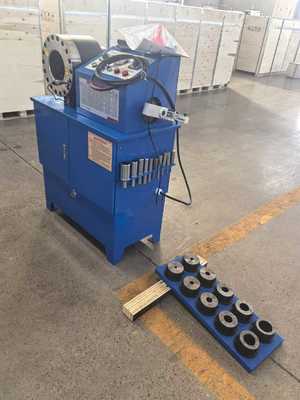

2 Inch Hydraulic Hose Crimping Machine with Efficient Hose Processing User-Friendly Operation and High Efficiency 1

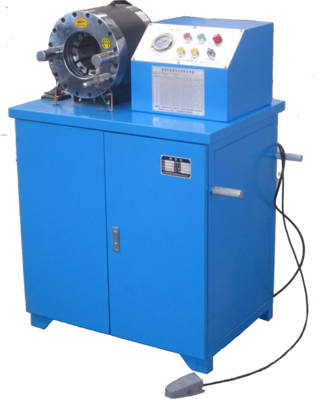

2 Inch Hydraulic Hose Crimping Machine with Efficient Hose Processing User-Friendly Operation and High Efficiency 2
2 Inch Hydraulic Hose Crimping Machine with Efficient Hose Processing User-Friendly Operation and High Efficiency 3
2 Inch Hydraulic Hose Crimping Machine with Efficient Hose Processing User-Friendly Operation and High Efficiency 4
2 Inch Hydraulic Hose Crimping Machine with Efficient Hose Processing User-Friendly Operation and High Efficiency 5
Industrial Applications
  • Construction sites and mining operations
  • Agricultural equipment maintenance
  • Transportation industry repairs
  • Industrial hydraulic system servicing
Support & Services
  • Video technical support and online troubleshooting
  • Comprehensive installation guidance
  • Preventative maintenance advice
Packing & Shipping
The machine is securely packaged in wooden crates for maximum protection during transit. Standard delivery time is 2-7 working days with tracking information provided.
Frequently Asked Questions
Q: What is the model number for this machine?
A: FY-51YTJ Hydraulic Hose Crimping Machine
Q: Is this machine certified?
A: Yes, it is CE certified
Q: What is the minimum order quantity?
A: 1 set, with a supply ability of 300 sets per month
2 Inch Hydraulic Hose Crimping Machine with Efficient Hose Processing User-Friendly Operation and High Efficiency 6
