2 Functions Hydraulic Hose Crimping Machine with Dual Functionality and Heavy-Duty Construction for Industrial Applications

Name

2 Functions Hydraulic Hose Crimping Machine with Dual Functionality and Heavy-Duty Construction for Industrial Applications

Brand Name: FY
Model Number: FY-51YTJ
MOQ: 1 set
Price: USD$ 1450/1400/1350/1300
Payment Terms: L/C,T/T,D/A,D/P,Western Union,MoneyGram
Supply Ability: 300 sets per month
Detail Information
Product Description
Detail Information
Place of Origin:
China,Shanghai
Certification:
CE
System Pressure:
26Mpa/31.5Mpa(Optional)
Quantity Of Dies:
10 Sets
Crimping Range:
6-51mm(1/4''-2'' Inch Inner Diameter Of Hose)
Gross Weight:
320kgs
HIGH LIGHT:
Hydraulic Hose Crimping Machine, Flexible Hydraulic Hose Crimping Machine, Flexible Hose Crimping Machine
Application:
Crimp Hose
After-sales Service Provided:
Video Technical Support,Online Support
Dimension(l*w*h):
1030*510*1270 Mm
Product Name:
2 Functions Hydraulic Hose Crimping And Skiving Machine With 320kg Gross Weight And 1030*510*1270 Mm Dimension For Industrial Applications
Packaging Details:
wooden box
Supply Ability:
300 sets per month
Highlight:

2 Functions Hydraulic Hose Crimping Machine

,

Dual Functionality Hose Crimper

,

Heavy-Duty Construction Hydraulic Crimper

Product Description
2 Functions Hydraulic Hose Crimping And Skiving Machine
The 2 Functions Hydraulic Hose Crimping and Skiving Machine is designed to meet the diverse needs of hydraulic hose processing in industrial environments. With its robust construction, impressive features, and dual functionality, this machine is ideal for professionals in sectors such as construction, manufacturing, and automotive repair.
Key Features
  • Dual Functionality: Combines crimping and skiving functions for efficient hose preparation
  • Heavy-Duty Construction: 320 kg weight ensures stability and durability
  • Generous Dimensions: 1030*510*1270 mm accommodates various hose sizes
  • User-Friendly Design: Intuitive control panel for easy operation
  • Efficient Processing: High-speed operation increases productivity
Advantages
  • Enhanced productivity through dual functionality
  • Precision and consistency in crimping and skiving
  • Cost-effective solution combining two essential functions
  • Versatile applications across multiple industries
  • Built-in safety mechanisms for operator protection
Technical Specifications
Attribute Value
System Pressure 26Mpa/31.5Mpa (Optional)
Crimping Range 6-51mm (1/4"-2" inner diameter)
Quantity of Dies 10 sets
Accuracy 0.01mm
Work Efficiency 200pcs/h
Gross Weight 320kg
Product Images

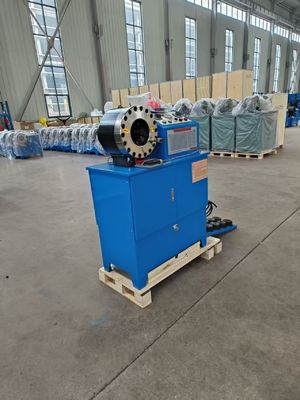

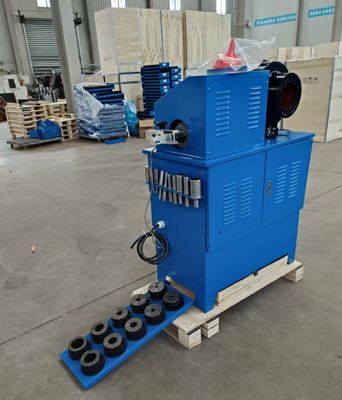

2 Functions Hydraulic Hose Crimping Machine with Dual Functionality and Heavy-Duty Construction for Industrial Applications 0

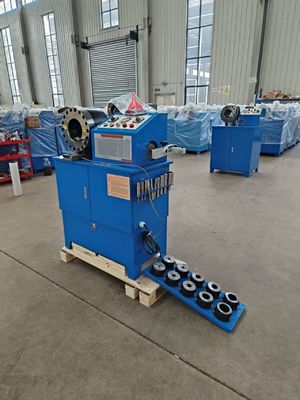

2 Functions Hydraulic Hose Crimping Machine with Dual Functionality and Heavy-Duty Construction for Industrial Applications 1
2 Functions Hydraulic Hose Crimping Machine with Dual Functionality and Heavy-Duty Construction for Industrial Applications 2

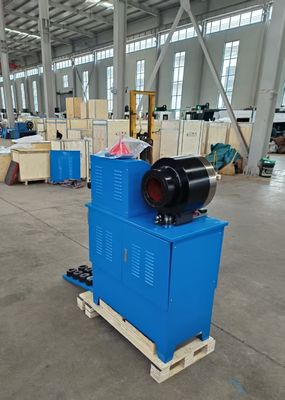

2 Functions Hydraulic Hose Crimping Machine with Dual Functionality and Heavy-Duty Construction for Industrial Applications 3

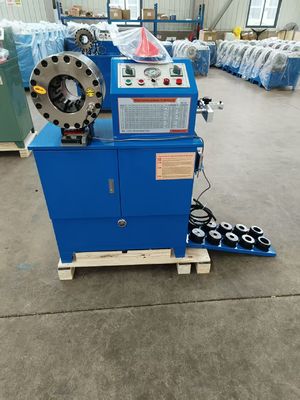

2 Functions Hydraulic Hose Crimping Machine with Dual Functionality and Heavy-Duty Construction for Industrial Applications 4

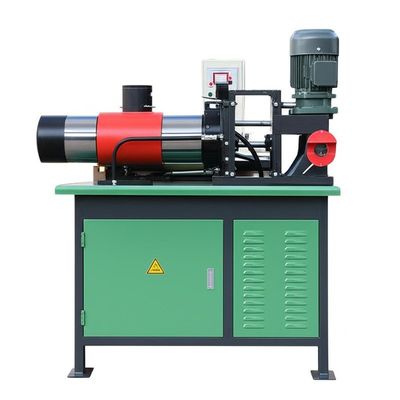

2 Functions Hydraulic Hose Crimping Machine with Dual Functionality and Heavy-Duty Construction for Industrial Applications 5

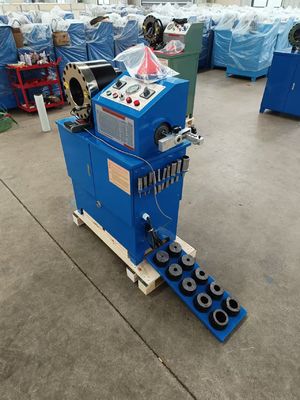

2 Functions Hydraulic Hose Crimping Machine with Dual Functionality and Heavy-Duty Construction for Industrial Applications 6
Applications
  • Construction sites
  • Mining operations
  • Agricultural settings
  • Transportation industry
  • Industrial maintenance
  • Hydraulic system repair
Support and Services
  • Video technical support
  • Online troubleshooting
  • Installation guidance
  • Preventative maintenance advice
Packing and Shipping

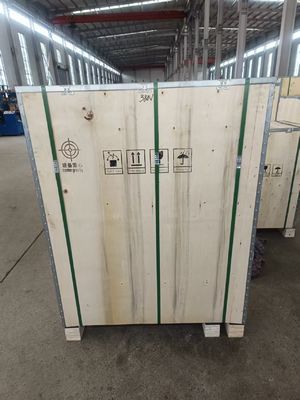

The machine is securely packaged in wooden crates for protection during transportation. Standard delivery time is 2-7 working days with tracking information provided.
Frequently Asked Questions
Q: What is the model number for this machine?
A: FY-51YTJ Hydraulic Hose Crimping Machine
Q: Is this machine certified?
A: Yes, it is CE certified.
Q: What is the minimum order quantity?
A: 1 set, with a supply ability of 300 sets per month.
