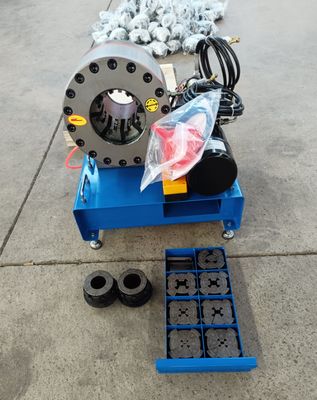

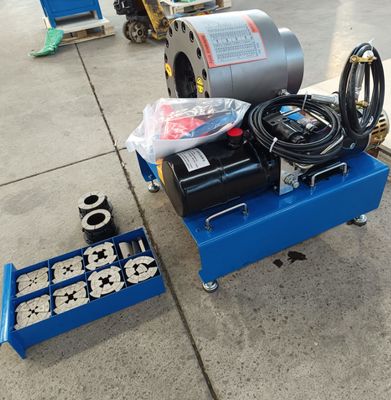

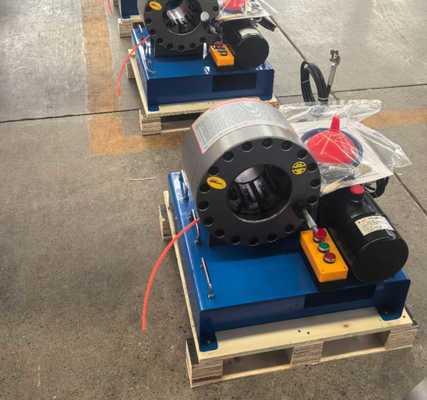

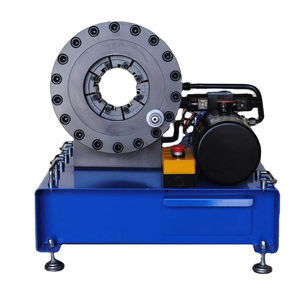

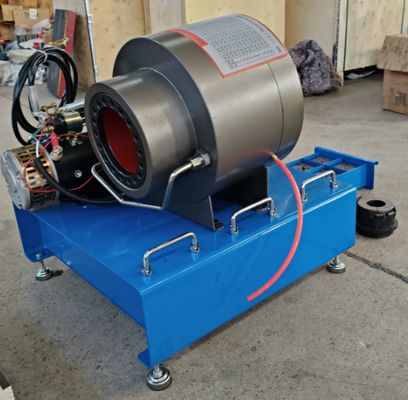

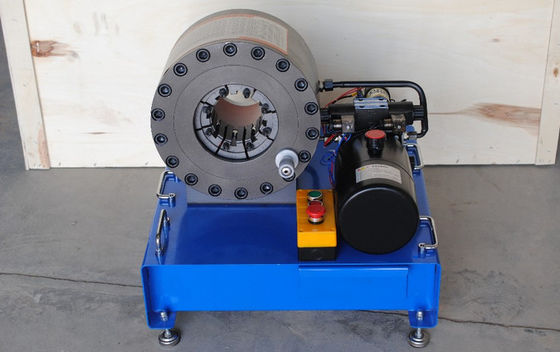

Portable 12V/24V Hydraulic Hose Crimping Machine with Smart Light Indicator and 3.6KW Motor Power for Car Loading Use

Portable 12V/24V Hydraulic Hose Crimping Machine with Smart Light Indicator and 3.6KW Motor Power for Car Loading Use

Brand Name:	FY
Model Number:	FY-51CZ
MOQ:	1 set
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	300 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai,China

Certification:

Reinforcement:

1-4 Layers Wire

Crimping Range:

6-51 Mm

Quantity Of Dies:

10 Sets

Accuracy:

0.01 Mm

System Pressure:

30mpa

Motor Power:

3.6kw

Voltage:

12v/24v(optional)

Crimping Force:

600t

HIGH LIGHT:

Smart Light 12V/24V Hydraulic Hose Crimping Machine 2 Inch Hydraulic Hose Crimper Machine Portable With 10 Dies For Car Loding Use

Packaging Details:

export standard wooden box

Supply Ability:

300 sets per month

Highlight:

3.6KW Motor Power Hydraulic Hose Crimping Machine

Smart Light Indicator Hose Crimper

Car Loading Use Hydraulic Crimper

Product Description

Smart Light 12V/24V Hydraulic Hose Crimping Machine

Introducing the Smart Light 12V/24V Hydraulic Hose Crimping Machine, a versatile and efficient tool designed for crimping hydraulic hoses up to 2 inches in diameter. This portable machine is perfect for automotive professionals and service providers, making it an ideal solution for car loading applications.

Key Features

Dual Voltage Operation: Operates on both 12V and 24V, providing flexibility for various vehicles and settings.
Portable Design: Lightweight and compact with ergonomic handle for comfortable usage.
Wide Crimping Capacity: Handles hoses from 6mm to 51mm (up to 2 inches) including rubber, thermoplastic, and reinforced hoses.
Comprehensive Die Set: Includes 10 high-quality dies for precise crimping across multiple hose sizes.
Smart Light Indicator: Built-in visual feedback for monitoring the crimping process.

Advantages

Enhanced efficiency with quick hose preparation
Precision engineering for uniform and accurate crimping
Cost-effective solution integrating multiple functionalities
User-friendly operation suitable for all experience levels
Built-in safety features for operator protection

Technical Specifications

Model	FY-51CZ Pipe Crimping Machine
Crimping Range	6-51mm (1/4"-2")
Crimping Force	600T
Max. Opening	114mm
Die Sets	10
System Pressure	30Mpa
Accuracy	0.01mm
Standard Voltage	12V/24V
Weight	170KG
Dimensions	650mm × 600mm × 600mm

NOTE:

"*" for non standard die sets
Customized die sets with different shape size available
Voltage 12V/24V is available

Optional Accessories

Quick Change Tool
Quick Change Die Set Rack
Car installing unit

Premium Features

Forged Cylinder: One piece structure prevents oil leakage, saves transfer time, and increases productivity.

Micrometer: FY51CZ features high accuracy dial (0.01mm) for precise measurements.

Die Set Reference Sheet: Helps choose proper die set for different crimping sizes.

Wide Usage: Suitable for mobile vans with 12V/24V power supply, high pressure oil rubber hose assembly, low pressure water/air hose pressing, steel tube swaging, wire rope pressing, and lock device making.
