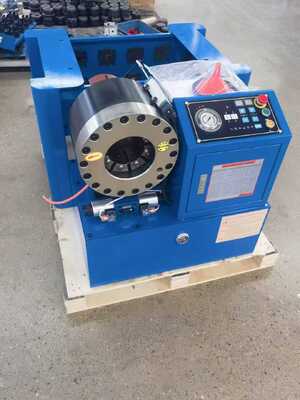

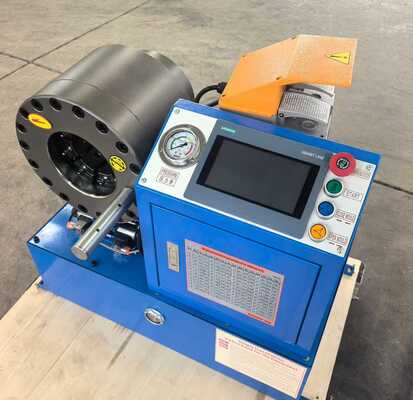

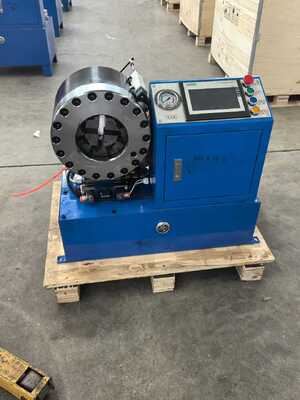

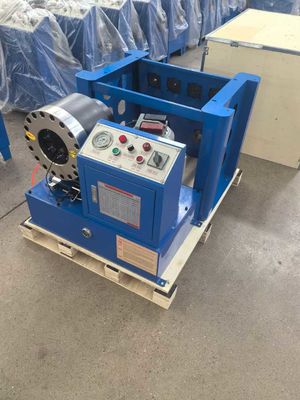

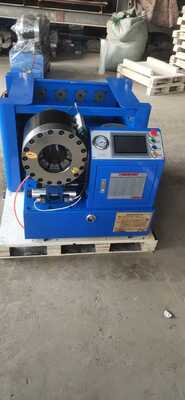

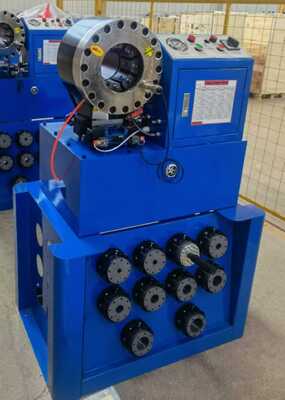

6-51mm Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Dies for Versatile Crimping

Name: 6-51mm Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Dies for Versatile Crimping
Brand: Shanghai Fanying Machinery Technology Co., Ltd.
SKU: FY-P38
Price: 1,725.00 USD
Availability: InStock

Brand Name:	FY
Model Number:	FY-P38
MOQ:	1 set
Price:	USD$ 1850/1800/1750/1700
Payment Terms:	L/C,T/T,D/A,D/P,Western Union,MoneyGram
Supply Ability:	300 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China,Shanghai

Certification:

Voltage:

220V/240V/380V/415V(Optional)

Gross Weight:

300kgs

Net Weight:

275kg

Power(w):

3KW/4KW

Dimension(l*w*h):

950*630*700 Mm

Package Dimension:

1000*680*750 Mm

Warranty:

1 Year

Condition:

New

After-sales Service Provided:

Video Technical Support,Online Support

Crimping Force:

300Ton/0.3MT

Product Name:

6-51mm Hydraulic Hose Crimping Machine With Fast Change Mould Tool And 10 Dies For Versatile Crimping With Rack Can Rach Up Tp 2.5 Inch Crimping Size

Crimping Range:

6-38mm/1.5 Inch/2 Inch

Color:

Blue,blue Or Customize

Application:

Crimp Hose

Free Dies:

10 Sets

System Pressure:

26MPA/31.5MPA/260 Bar/315 Bar

Output Volume Of Pump:

2.5L/5L

HIGH LIGHT:

Advanced Hydraulic Pipe Crimping Machine, Dash Control Hydraulic Pipe Crimping Machine, Pipe Crimping Machine

Packaging Details:

wooden box

Supply Ability:

300 sets per month

Highlight:

6-51mm Crimping Range Hydraulic Hose Crimping Machine

Fast Change Mould Tool Hose Crimper

10 Dies Included Hydraulic Crimper

Product Description

6-51mm Hydraulic Hose Crimping Machine

The 6-51mm Hydraulic Hose Crimping Machine is a highly efficient tool designed for precise crimping of hydraulic hoses, accommodating sizes up to 2.5 inches. This machine features a fast change mould tool and comes equipped with 10 interchangeable dies, making it versatile enough to handle a variety of applications in automotive, construction, and manufacturing industries.

Key Features

Versatile Crimping Range: Crimps hoses from 6mm to 51mm and handles larger sizes up to 2.5 inches
Fast Change Mould Tool: Quick transitions between dies reduce downtime and improve productivity
Comprehensive Die Set: Includes 10 interchangeable dies for various hose sizes
Sturdy Rack Design: Provides stability and support for precise, secure crimping
Durable Construction: High-quality materials ensure long-lasting performance

Advantages

Increased Efficiency: Fast change tool and versatile die set maximize workflow
Broad Application Range: Ideal for automotive, industrial manufacturing, and construction
User-Friendly Operation: Intuitive interface accessible for both experienced and new technicians
Cost-Effective Solution: Consolidates multiple capabilities into one machine
Safety Features: Protective mechanisms safeguard operator and equipment

Technical Specifications

Model	FY-P38 Hose Crimping Machine
Crimping Range	6-38mm (1/4"-1.5")
Crimping Force	300T
System Pressure	26Mpa/31.5Mpa (Optional)
Accuracy	0.01mm
Work Efficiency	200 pcs/h
Voltage Options	220V/240V/380V/415V
Motor Power	3KW/4KW
Dimensions (LWH)	950630700 mm
Weight	275kg
Die Sets Included	8 sets
