6-51mm Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping

Name: 6-51mm Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping
Brand: Shanghai Fanying Machinery Technology Co., Ltd.
SKU: FY-P38
Price: 1,725.00 USD
Availability: InStock

Brand Name:	FY
Model Number:	FY-P38
MOQ:	1 set
Price:	USD$ 1850/1800/1750/1700
Payment Terms:	L/C,T/T,D/A,D/P,Western Union,MoneyGram
Supply Ability:	300 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China,Shanghai

Certification:

Voltage:

220V/240V/380V/415V(Optional)

Gross Weight:

300kgs

Net Weight:

275kg

Power(w):

3KW/4KW

Dimension(l*w*h):

950*630*700 Mm

Package Dimension:

1000*680*750 Mm

Warranty:

1 Year

Condition:

New

After-sales Service Provided:

Video Technical Support,Online Support

Crimping Force:

300Ton/0.3MT

Product Name:

2 Inch Electric Crimping Up To 2.5 Inch 6-51mm Hydraulic Hose Crimping Machine With Fast Change Mould Tool And 10 Dies For Versatile Crimping

Crimping Range:

6-51mm/1.5 Inch/2 Inch

Color:

Blue,blue Or Customize

Application:

Crimp Hose

Free Dies:

10 Sets

System Pressure:

26MPA/31.5MPA/260 Bar/315 Bar

Output Volume Of Pump:

2.5L/5L

HIGH LIGHT:

Advanced Hydraulic Pipe Crimping Machine, Dash Control Hydraulic Pipe Crimping Machine, Pipe Crimping Machine

Packaging Details:

wooden box

Supply Ability:

300 sets per month

Highlight:

6-51mm Crimping Range Hydraulic Hose Crimping Machine

Fast Change Mould Tool Hose Crimper

10 Interchangeable Dies Hydraulic Crimper

Product Description

2 Inch Electric Hydraulic Hose Crimping Machine

Introducing the 2 Inch Electric Hydraulic Hose Crimping Machine, a versatile and efficient tool designed for precision crimping in hydraulic applications. This advanced machine can handle hoses up to 2.5 inches in diameter and features a crimping range of 6mm to 51mm. Equipped with a fast change mould tool and 10 interchangeable dies, this machine is ideal for hydraulic repair shops, automotive service centers, and oil industries in the USA, Europe, and Southeast Asia.

Key Features

Versatile Crimping Capacity: Capable of crimping hoses ranging from 6mm to 51mm, suitable for multiple applications

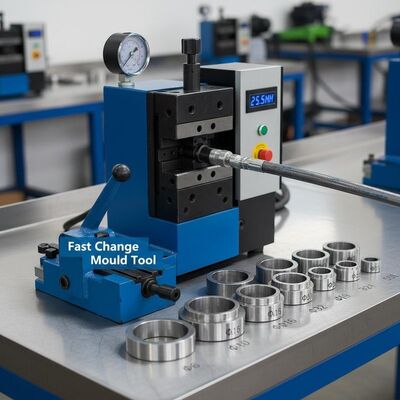

Fast Change Mould Tool: Innovative design minimizes downtime with quick and hassle-free die adjustments
Electric Power Operation: Consistent hydraulic system delivers reliable performance under various working conditions

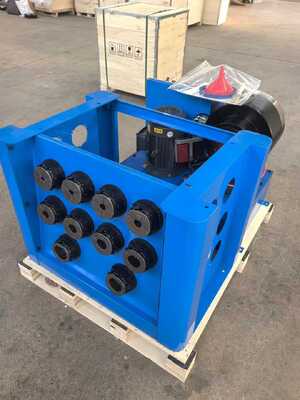

10 Interchangeable Dies: Flexible handling of different hose sizes for diverse tasks
Durable Construction: High-quality materials ensure long-lasting performance in demanding environments

Operational Advantages

Increased Efficiency: Quick die changes and electric operation enhance workshop productivity
Cost-Effective Solution: Accommodates multiple hose sizes, reducing equipment and maintenance costs
User-Friendly Design: Intuitive controls and fast change features suitable for technicians of all skill levels
Reliable Performance: Engineered for durability with consistent, secure crimping results
Wide Applicability: Ideal for hydraulic repair shops, automotive facilities, and oil industries

Technical Specifications

Model	FY-P51 Hose Crimping Machine
Crimping Range	6-51mm (1/4"-2")
Crimping Force	300T
System Pressure	26Mpa/31.5Mpa (Optional)
Accuracy	0.01mm
Work Efficiency	200 pcs/h
Voltage Options	220V/240V/380V/415V
Motor Power	3KW/4KW
Dimensions (LWH)	950630700 mm
Weight	275kg
Die Sets Included	10 sets
