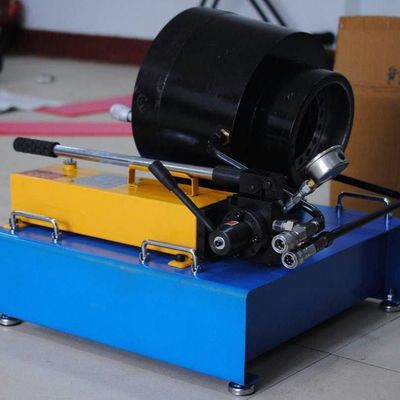

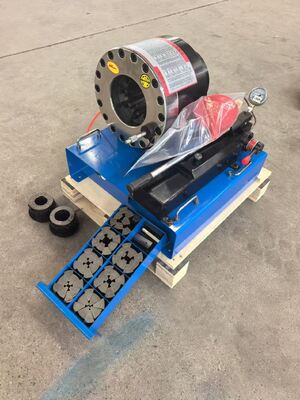

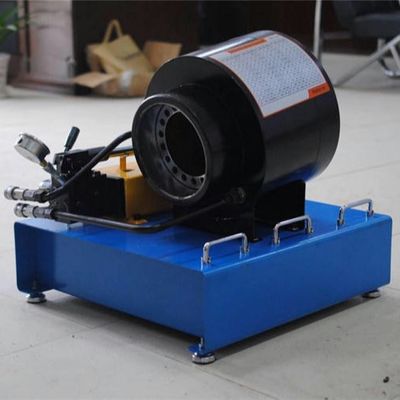

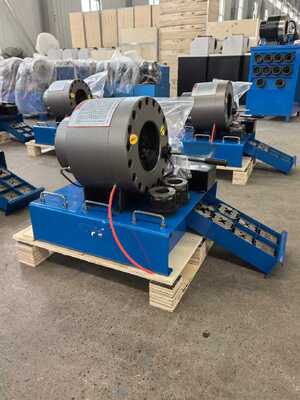

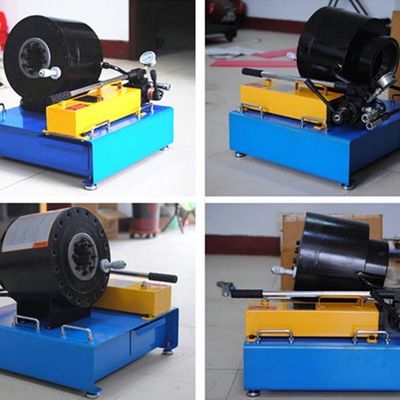

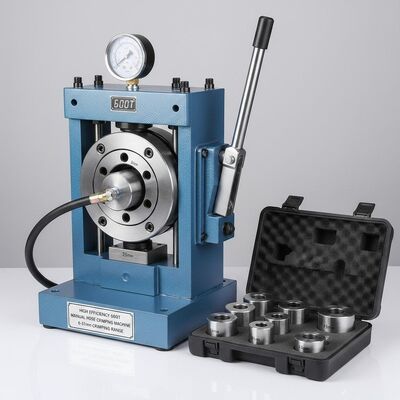

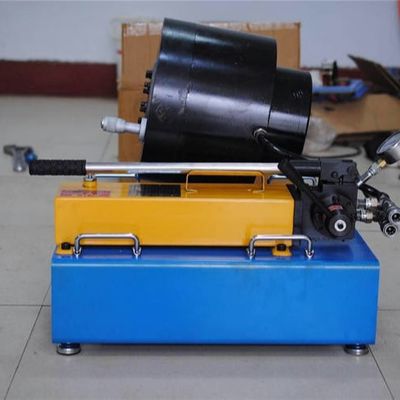

High Efficiency 600T Manual Hose Crimping Machine with 6-51mm Crimping Range and 10 Interchangeable Dies for Hydraulic Applications

Name: High Efficiency 600T Manual Hose Crimping Machine with 6-51mm Crimping Range and 10 Interchangeable Dies for Hydraulic Applications
Brand: Shanghai Fanying Machinery Technology Co., Ltd.
SKU: FY-51CSD
Price: 1300 USD
Availability: InStock

Brand Name:	FY
Model Number:	FY-51CSD
MOQ:	1 set
Price:	USD$ 1300
Payment Terms:	L/C,D/A,D/P,T/T,MoneyGram,Western Union
Supply Ability:	300 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai,China

Certification:

Document:

OUR CATALOGUE.pdf

Weight:

200KG

Condition:

New

Dimension(l*w*h):

550*670*555MM

Warranty:

1 Year

After-sales Service Provided:

Video Technical Support,Online Support

Power(w):

0KW

Voltage:

Crimping Force:

600T

Color:

Blue Or Custom

Crimping Range:

1/4"to2'',1/4''-2''

Produ Ct Name:

High Efficiency 600T 2 Inch Manual Hose Crimping Machine With 6-51mm Crimping Range For Hydraulic Applications With 10 Dies

Application:

Crimp Hose

Free Dies:

10sets

Rated Pressure:

70 MPA

Keywords:

Manual Crimping Machine,hydraulic Hose Crimping Machine

Packaging Details:

export standard wooden box

Supply Ability:

300 sets per month

Highlight:

600T Crimping Force Hose Crimper

6-51mm Crimping Range Manual Hose Crimping Machine

10 Interchangeable Dies Hydraulic Hose Crimping Machine

Product Description

High Efficiency 600T 2 Inch Manual Hose Crimping Machine

The High Efficiency 600T Manual Hose Crimping Machine delivers reliable performance for hydraulic applications with 600 tons of crimping force and a versatile 6-51mm crimping range. This essential tool is ideal for hydraulic repair shops, automotive service centers, and oil industries worldwide.

Key Features

High Crimping Force: 600-ton capacity ensures secure, robust connections for high-pressure hydraulic systems
Manual Operation: Precise crimping without electric power, versatile for various workshop settings
Wide Crimping Range: Accommodates hoses from 6mm to 51mm (1/4" to 2" inner diameter)
10 Interchangeable Dies: Quick adjustments between various hose sizes for greater efficiency
Durable Construction: High-quality materials ensure longevity and reliable performance

Operational Advantages

Increased Efficiency: High crimping force with manual operation boosts workshop productivity
Cost-Effective Solution: No electric power requirement minimizes overhead costs
Reliable Quality: Robust construction meets industry standards, reducing leak risks
Versatile Applications: Suitable for hydraulic repair, automotive services, and oil distribution
Low Maintenance: Durable design requires minimal upkeep

This manual hose crimping machine is trusted by professionals for its reliability in industrial applications. During non-pressing operations, cover the machine with the dust cover to prevent debris from entering the mold base.

The FY-51CSD is a portable hose crimping machine designed for field service when repairs must be made on-site. Its simple, straightforward construction makes it easy to operate and highly reliable. The lightweight design allows equipment to be easily carried to any location, making it ideal for repair shops and industrial maintenance units.

Technical Specifications

Specification	Value
Model	FY-51CSD Manual Crimper
Crimping Range	6-51mm (1/4"-2" inner diameter)
Crimping Force	600 Tons
Maximum Open Diameter	114mm
Die Sets	10 sets
System Pressure	70 MPa
Accuracy	0.01mm
Work Efficiency	10 pieces/hour
Dimensions	550mm * 670mm * 555mm
Weight	200kg

Additional Features

Small size and light weight for easy transportation
World-famous hydraulic pump system
High accuracy and precision crimping
High efficiency with Finn Power Dial control
Stable performance even after years of service

Note: Non-standard die sets are available with "*" designation. Customized die sets can be provided. Maximum opening refers to the stroke between fully closed and fully opened die sets.

Optional Accessories

Quick Change Tool
Quick Change Die Set Rack
UC Control System

Crimping Dial

High accuracy and stability with long service life

Compact Design

FY-51CSD weighs only 200kg with compact dimensions for easy transportation to any location

Quick Die Sets Installation

FY-51CSD enables rapid die set changes and installation to save time and improve productivity

Customization Options

Different machine colors or company LOGO can be customized according to customer requirements

Application Fields

The portable FY-51CSD crimping machine offers flexible hose crimping capabilities for on-site applications without power supplies. With different die sets, it can perform various tasks including hydraulic hose assembly up to 2 inches, connecting steel tubes, pressing wires and cables, and more.
