6-51mm Hydraulic Hose Crimping Machine with PLC Control System and 10 Interchangeable Dies for Versatile Crimping

Name: 6-51mm Hydraulic Hose Crimping Machine with PLC Control System and 10 Interchangeable Dies for Versatile Crimping
Brand: Shanghai Fanying Machinery Technology Co., Ltd.
SKU: FY-P38
Price: 1,725.00 USD
Availability: InStock

Brand Name:	FY
Model Number:	FY-P38
MOQ:	1 set
Price:	USD$ 1850/1800/1750/1700
Payment Terms:	L/C,T/T,D/A,D/P,Western Union,MoneyGram
Supply Ability:	300 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China,Shanghai

Certification:

Voltage:

220V/240V/380V/415V(Optional)

Gross Weight:

300kgs

Net Weight:

275kg

Power(w):

3KW/4KW

Dimension(l*w*h):

950*630*700 Mm

Package Dimension:

1000*680*750 Mm

Warranty:

1 Year

Condition:

New

After-sales Service Provided:

Video Technical Support,Online Support

Crimping Force:

300Ton/0.3MT

Product Name:

6-51mm Hydraulic Hose Crimping Machine With Fast Change Mould Tool And Rack And 10 Interchangeable Dies PLC Control Systerm For Versatile Crimping

Crimping Range:

6-51mm/1.5 Inch/2 Inch

Color:

Blue,blue Or Customize

Application:

Crimp Hose

Free Dies:

10 Sets

System Pressure:

26MPA/31.5MPA/260 Bar/315 Bar

Output Volume Of Pump:

2.5L/5L

HIGH LIGHT:

Advanced Hydraulic Pipe Crimping Machine, Dash Control Hydraulic Pipe Crimping Machine, Pipe Crimping Machine

Packaging Details:

wooden box

Supply Ability:

300 sets per month

Highlight:

6-51mm Crimping Range Hydraulic Hose Crimping Machine

PLC Control System Hose Crimper

10 Interchangeable Dies Hydraulic Crimper

Product Description

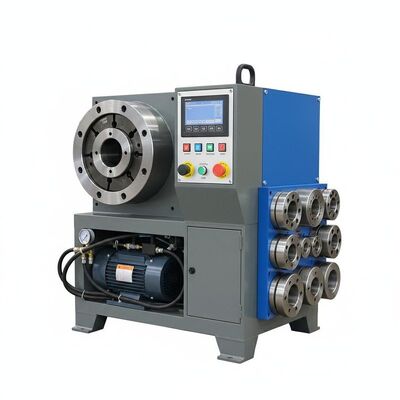

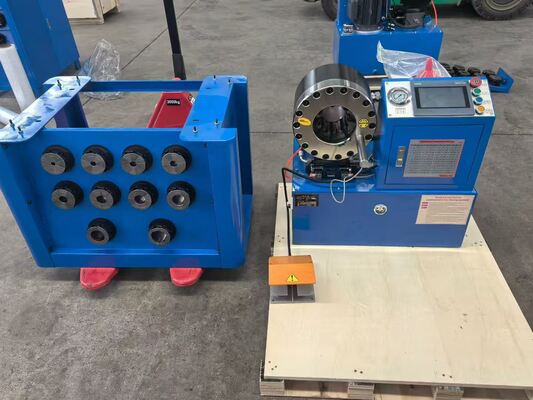

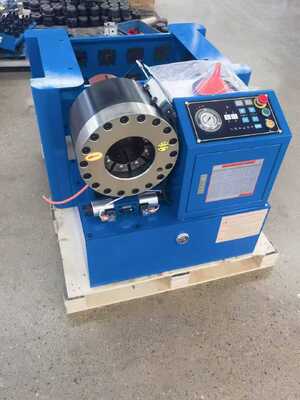

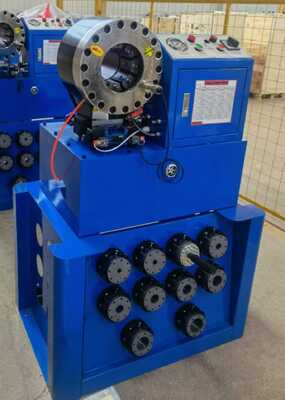

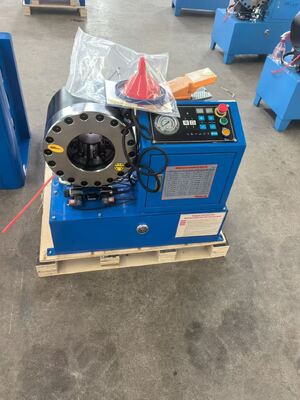

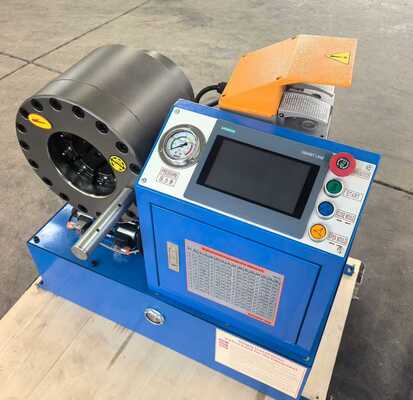

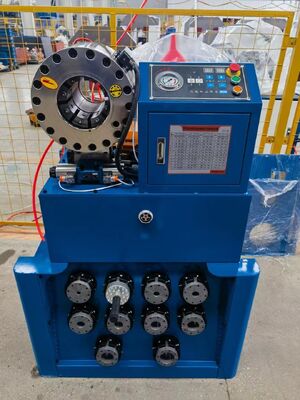

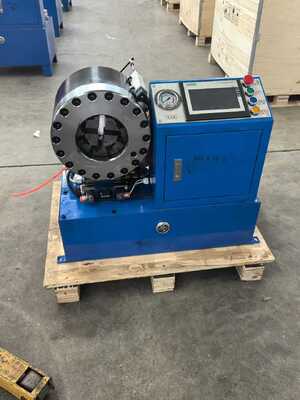

6-51mm Hydraulic Hose Crimping Machine

Discover the efficiency of the 6-51mm Hydraulic Hose Crimping Machine, designed for precision and versatility in hydraulic applications. This advanced machine features a fast change mould tool, a robust rack for stability, and 10 interchangeable dies, making it an essential tool for hydraulic repair shops, automotive service centers, and oil industries across the USA, Europe, and Southeast Asia. Equipped with a PLC control system, it elevates your crimping operations to new levels of efficiency and accuracy.

Key Features

Crimping Range: Effectively crimps hoses from 6mm to 51mm, accommodating a wide variety of sizes for diverse applications
Fast Change Mould Tool: Innovative design allows operators to swiftly switch between dies, significantly reducing downtime
10 Interchangeable Dies: Ensures compatibility with numerous hose sizes, enhancing versatility in various settings
PLC Control System: Automates the crimping process with precise control over parameters for consistent results
Robust Construction: Built from high-quality materials to endure heavy-duty use, ensuring durability and longevity

Performance Advantages

Enhanced Productivity: PLC control system and fast change mould tool enable efficient operation and faster task completion
Versatile Applications: Suitable for hydraulic repair shops, automotive services, oil distribution, and various industries
Reliable Consistency: Advanced control system ensures each crimp meets stringent quality standards, reducing failure risks
Cost-Effective Solution: Consolidates multiple functions in one machine, reducing initial investment and maintenance costs
Minimal Maintenance: Durable design minimizes repair frequency, allowing focus on productivity

Technical Specifications

Model	FY-P51 Hose Crimping Machine
Crimping Range	6-51mm (1/4"-2")
Crimping Force	300T
System Pressure	26Mpa/31.5Mpa (Optional)
Accuracy	0.01mm
Work Efficiency	200 pcs/h
Voltage Options	220V/240V/380V/415V
Motor Power	3KW/4KW
Dimensions (LWH)	950630700 mm
Weight	275kg
Die Sets Included	10 sets
