2 Inch DX68 Model Blue Color Electric Hydraulic Hose Crimper Shorter Without Fast Change Mould Tools Crimping Range From 6mm-51mm Different Voltage 10 Dies Accuracy And 200 Pcs Per Hour Efficiency

2 Inch DX68 Model Blue Color Electric Hydraulic Hose Crimper Shorter Without Fast Change Mould Tools Crimping Range From 6mm-51mm Different Voltage 10 Dies Accuracy And 200 Pcs Per Hour Efficiency

Brand Name:	FanYing
Model Number:	FY-51WS-1
MOQ:	1 set
Price:	USD$ 1350
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,
Supply Ability:	10000 SETS PER MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

China,Shanghai

Document:

our new catalogue.pdf

Motor Power:

3KW/4KW

Voltage:

220v/240v/380v/415v

Crimping Range:

6mm To 51mm

Crimping Accuracy:

±0.01mm

Crimping Force:

600T

Net Weight:

245 Kg/ 260kg

Product Name:

2 Inch DX68 Model Blue Color Electric Hydraulic Hose Crimper Without Fast Change Mould Tools Crimping Range From 6mm To 51mm Different Voltage 10 Dies Accuracy And 200 Pcs Per Hour Efficiency

Packaging Details:

STANDARD WOODEN BOX

Supply Ability:

10000 SETS PER MONTH

Highlight:

DX68 hydraulic hose crimper

electric hose crimping machine 10 dies

blue hydraulic crimper 6mm-51mm range

Product Description

2 Inch DX68 Model Blue Color Electric Hydraulic Hose Crimper Without Fast Change Mould Tools Crimping Range From 6mm-51mm Different Voltage 10 Dies Accuracy And 200 Pcs Per Hour Efficiency

Hydraulic Hose Crimper DX68 Model – 2 Inch Electric Hose Crimping Machine

High-Efficiency Hydraulic Hose Crimper for Professional Hose Assembly

2 Inch DX68 Hydraulic Hose Crimper for Professional Hose Service

Meta Title: DX68 Hydraulic Hose Crimper 6–51 mm | 200 Pcs/Hour
Meta Description: Blue DX68 Hydraulic Hose Crimper for 6–51 mm hoses with 10 dies, high accuracy, and up to 200 pieces per hour. Available in different voltage options.

Efficient DX68 Hydraulic Hose Crimper

The DX68 Hydraulic Hose Crimper is a professional electric machine designed for hydraulic hose assembly, repair, and maintenance. With a crimping range of 6 mm to 51 mm, it is suitable for hose assemblies up to approximately 2 inches, making it a practical choice for hydraulic repair shops, automotive service centers, oil-service companies, hose distributors, and industrial maintenance workshops.

Featuring a compact and shorter machine design, the DX68 helps save valuable floor space while providing stable crimping performance. Its blue exterior gives the machine a clean and professional appearance for modern workshops. The machine is equipped with 10 interchangeable dies, allowing operators to process different hose sizes with one unit.

Unlike machines with fast-change mould systems, this model uses a standard mould and die replacement structure. It is a cost-effective option for customers who prefer reliable operation and essential hose-crimping functions without additional fast-change tooling. The machine is suitable for regular hydraulic hose repair and small- to medium-scale hose assembly production.

Key Features

2-inch hose crimping capacity for common hydraulic hose applications.
6–51 mm crimping range for different hose diameters and fittings.
Electric hydraulic operation for convenient and stable workshop use.
Shorter, compact design helps reduce equipment space requirements.
Includes 10 interchangeable dies for flexible hose processing.
Designed for accurate and repeatable crimping results.
Production efficiency of up to 200 pieces per hour, depending on hose type, fitting, operator skill, and working conditions.
Available with different voltage configurations for international markets.
Blue painted finish provides a professional appearance and surface protection.
Suitable for hydraulic, automotive, oil, construction, agricultural, and industrial hose applications.

Product Advantages

The DX68 Hydraulic Hose Crimper combines practical performance, space efficiency, and flexible application. Its 6–51 mm working range covers many commonly used hydraulic hoses, making it useful for daily repair and replacement tasks. The 10-die system allows workshops to handle multiple hose sizes without investing in several machines.

With a potential output of up to 200 pieces per hour, the DX68 can help improve service speed and workshop productivity. Its accurate crimping performance supports consistent hose assembly quality and may help reduce rework caused by uneven or incorrect crimping. The compact design also makes it suitable for workshops with limited operating space.

The machine is available for customers in the USA, Europe, Southeast Asia, and other international markets. Voltage, frequency, phase, and die configuration should be confirmed before ordering.

Technical Specifications

Feature	Specification
Maximum Hose Capacity	Up to 2 inches (51mm)
Crimping Force	600T
Efficiency	200 pieces per hour
Number of Dies	10
Weight	245 kg
Dimensions	730mm x 475mm x 780mm
Motor Power	3KW/4KW (Customizable)
Voltage	220V/240V/380V/415V (Customizable)
Crimping Accuracy	±0.01mm

Industrial Applications

Construction machinery hydraulic systems
Oilfield exploitation equipment
Steel smelting operations
Shipbuilding hydraulic circuits
Agricultural machinery maintenance
Coal mining hydraulic applications

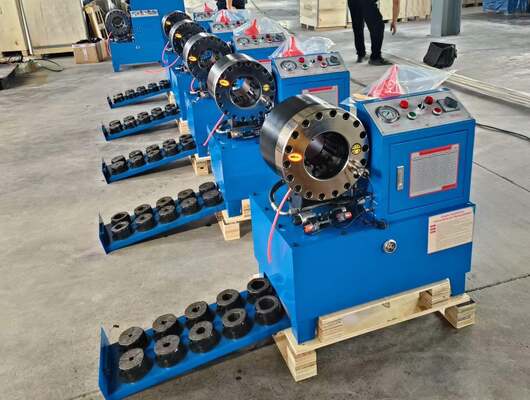

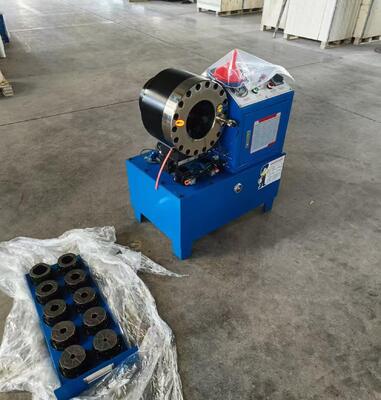

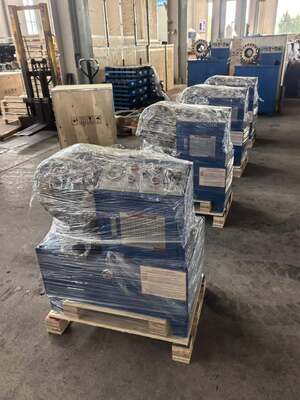

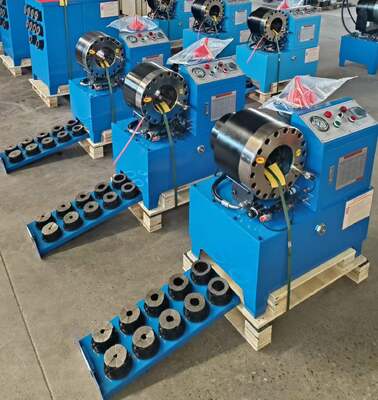

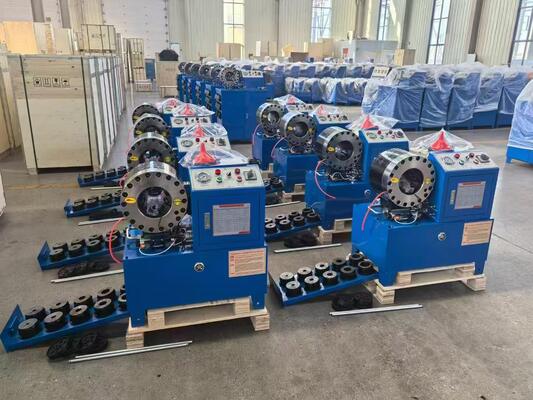

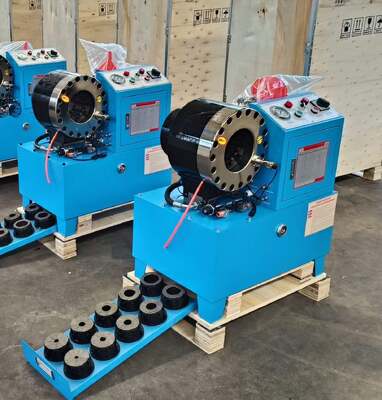

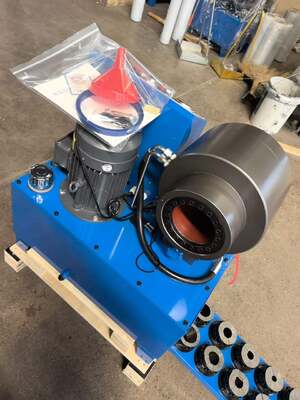

Product Images

2 Inch DX68 Model Blue Color Electric Hydraulic Hose Crimper Shorter Without Fast Change Mould Tools Crimping Range From 6mm-51mm Different Voltage 10 Dies Accuracy And 200 Pcs Per Hour Efficiency

Frequently Asked Questions

What maximum hose size can the DX68 crimp?

The DX68 crimps hoses up to 51 mm (2 inches) in outer diameter.

How accurate are the crimp settings?

The machine provides crimping accuracy of ±0.01 mm for consistent, repeatable results.

Is the 200 pcs/hour rating guaranteed?

The 200 pcs/hour figure is a typical production benchmark under ideal conditions. Actual throughput depends on hose type, fittings, and workflow.

Which voltage should I order -- 220V or 380V?

Select the voltage that matches your facility's supply. The DX68 is available in both configurations; specify at order to ensure compatibility.

Can I purchase additional or custom dies?

Yes. Additional and custom die sets for special fittings or non-standard hoses are available—contact the supplier with your fitting specifications.

What types of hoses can this crimping machine handle?

The DX68 can effectively crimp various hydraulic hoses, including rubber and reinforced types, depending on the selected die.

How quickly can I switch between different dies?

Changing dies is designed to be quick and efficient, allowing you to enhance productivity with minimal downtime.

What is the brand name of DX68 Hose Crimping Machine?

The brand name is FanYing, a trusted manufacturer of industrial crimping equipment.

Where is it manufactured?

All machines are manufactured in our Shanghai, China facility to international quality standards.

Conclusion: The DX68 Electric 2 Inch Hydraulic Hose Crimper delivers precision, reliability and throughput for professional hose assembly environments. With ±0.01 mm accuracy, 10 dies and dual-voltage options, it is a strong choice for customers in the USA, Europe and Southeast Asia seeking consistent, high-quality hydraulic hose crimps.
