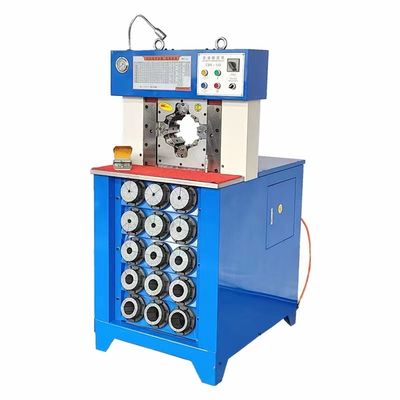

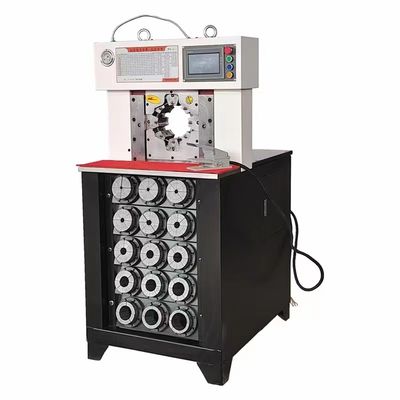

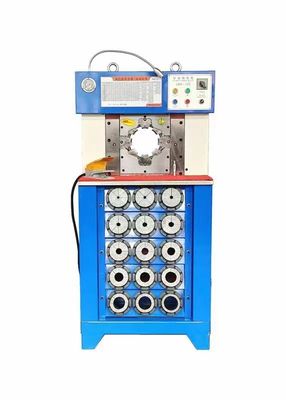

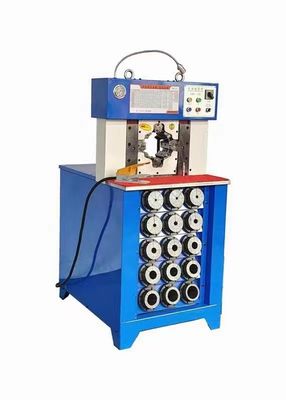

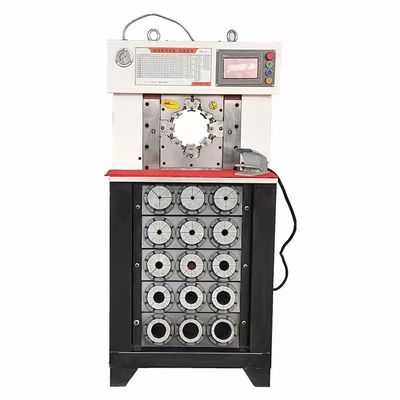

6-76mm Hydraulic AC Hose Crimper Heavy Duty Automotive AC Crimping Tool

Name: 6-76mm Hydraulic AC Hose Crimper Heavy Duty Automotive AC Crimping Tool
Brand: Shanghai Fanying Machinery Technology Co., Ltd.
SKU: FY-CBK-120
Price: 5,150.00 USD
Availability: InStock

Brand Name:	FY
Model Number:	FY-CBK-120
MOQ:	1 set
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	300 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai,China

Certification:

Weight:

1250kg

Condition:

New

Dimension(l*w*h):

1000*800*1630MM

Warranty:

1 Year

After-sales Service Provided:

Video Technical Support,Online Support

Voltage:

380V

Power(w):

5.5KW

Crimping Force:

1500T

Color:

Black/Blue Etc Or Custom

Crimping Range:

6-76mm,1/4" To 3'',1/4''-3''

Product Name:

6-76 Mm High Pressure Hydraulic Hose Crimping Machine

Type:

Hydraulic Crimping Tools

Application:

Crimp Hose

Free Dies:

15 Sets

Rated Pressure:

31.5MPA

Keywords:

3 Inch Hydraulic Hose Crimping Machine

HIGH LIGHT:

Car Ac Hose Crimping Machine, AC Hose Crimping Machine, 3 Inch Automotive Ac Crimping Tool

Packaging Details:

export standard wooden box

Supply Ability:

300 sets per month

Highlight:

6mm hydraulic ac hose crimper

76mm hydraulic ac hose crimper

Heavy Duty Automotive Ac Crimping Tool

Product Description

Car AC Hose Crimping Machine Heavy Duty Automotive Ac Crimping Tool

DESCRIPTION

FY-CBK-120 is the new type 2022.

It is capable of crimping hydraulic hose up to 3 inch and 2 inch 6SP stainless steel braided hoses. With super thin crimping head and vertical movement, it is the ideal choice for elbow fittings.

ADVANTAGES

► Advanced control system, high stability and productivity

► Quick die installing, make crimping more easily and save time

► Double use foot pedal, free both of the hand for carrying big or heavy work piece

crimping range/skiving range	6-76mm(1/4''-3''inner diameter of hose)
quantity of dies	15 sets
item diesNo. of	length 60mm(15,19,23,26)
	Length 70mm(31,36,41)
	Length 80mm(47,55,60)
accuracy	0.01mm
output volume of pump	10L/16L(Optional)
system pressure	31.5Mpa
motor power	5.5kw,3 phase
voltage	380V
crimping force	1500T
work efficiency	pcs/h
maximum open diameter	158mm
the max open tolerance	±53mm
package dimension	11009001730mm
machine dimension	10008001630mm
Net weight	1250kg
Gross weight	1300kg

TECHNICAL DATA

Model	FY-CBK-120 AC Hose Crimping Machine
Crimping Range	6-76(mm)
Crimping Force	1500(T)
Hose Size	1/4-3(inch)
Max. Opening	158(mm)
Die Sets	15
The Max Open Tolerance	+53mm
System Pressure	31.5(Mpa)
Accuracy	0.01(mm)
Output Volume Of Pump	10L/16L
Standard Voltage	380(V)
Motor Power	5.5(KW)
Length	1000(mm)
Width	800(mm)
Height	1630(mm)
Weight	1250(KG)

6-76mm Hydraulic AC Hose Crimper Heavy Duty Automotive AC Crimping Tool 0

NOTE

• " * " for non standard mold

• Customized die sets are available

• Special voltage 380V are availbale

► SUPER THIN CRIMPING HEAD

New cylinder making technology which seprate the cylinder with the crimping head, enbles a wide working stroke of the working area, so that the machine can be able to crimp elbow or irregular tubes

6-76mm Hydraulic AC Hose Crimper Heavy Duty Automotive AC Crimping Tool 1

► NEW DIE SETS

15 die sets, range from 6mm to 76mm, suitable for hose from 1/4 to 3 inch with six spirals crimping

6-76mm Hydraulic AC Hose Crimper Heavy Duty Automotive AC Crimping Tool 2

► HEAVY DUTY MACHINE RACK

With big cylinder hydraulic system, the machine capable of pressing hose up to 6 spirals

6-76mm Hydraulic AC Hose Crimper Heavy Duty Automotive AC Crimping Tool 3

► BIG DOUBLE USE FOOT PEDAL

The foot pedal frees both of the operator's hand and improve the working efficiency much

6-76mm Hydraulic AC Hose Crimper Heavy Duty Automotive AC Crimping Tool 4

► OEM SERVICE AVAILABLE

6-76mm Hydraulic AC Hose Crimper Heavy Duty Automotive AC Crimping Tool 5

► APPLICATION SHOW

FY-CBK-120 is especially designed for big elbow fittings crimping, it is wodely used in car ac hose, hydraulic oil hose, air hose, water pipe, industrial hoses, wires and cables crimping work.

6-76mm Hydraulic AC Hose Crimper Heavy Duty Automotive AC Crimping Tool 6

6-76mm Hydraulic AC Hose Crimper Heavy Duty Automotive AC Crimping Tool 7
