1500 Ton AC Hose Crimping Machine 3 Inch PLC Control Large Opening Big Force
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | 380V | Gross Weight | 1250kgs |
|---|---|---|---|
| Net Weight | 1300kg | Power(w) | 5.5KW |
| Dimension(l*w*h) | 1000*800*1630 Mm | Package Dimension | 1050*850*1680mm |
| Warranty | 1 Year | Condition | New |
| After-sales Service Provided | Video Technical Support,Online Support | Crimping Force | 1500Ton |
| Product Name | CE Approved 6-76mm High Pressure Hydraulic Hose Crimping Machine | Crimping Range | 6-76mm |
| Color | Black,White Or Customize | Application | Crimp Hose |
| Free Dies | 15sets | System Pressure | 31.5MPA |
| Output Volume Of Pump | 10L/16L | HIGH LIGHT | Large Opening Hydraulic Hose Crimping Machine, PLC Hydraulic Hose Crimping Machine, CBK-120 Hose Crimping Machine |
| High Light | 1500 ton AC Hose Crimping Machine,ac pipe crimping machine PLC control,3 inch ac pipe crimping machine |
||
You can tick the products you need and communicate with us in the message board.
| crimping range | 6-76 mm | |
|---|---|---|
| quantity of dies | 15 sets | |
| accuracy | 0.01 mm | |
| output volume of pump | 10L/16L | |
| system pressure | 31.5mpa | |
| motor power | 5.5kw | |
| voltage | 380v | |
| crimping force | 1500 t | |
| work efficiency | 200 pcs/h | |
| maximum open diameter | 158mm | |
| the max open tolerance | 53 ±mm | |
| machine dimension | 1000*800*1630 mm | |
| package dimension | 1050*850*1680 mm | |
| net weight | 1250 kg | |
| gross weight | 1300 kg |
Product Description

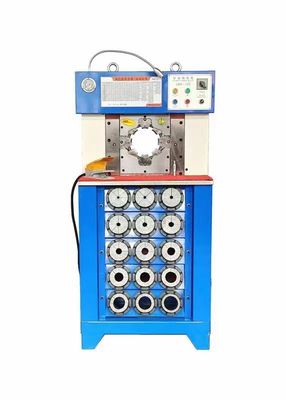

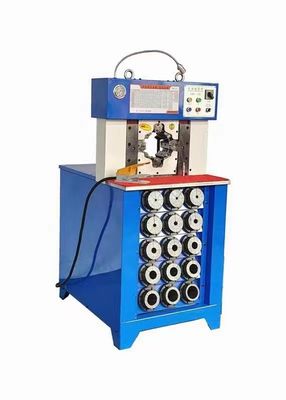

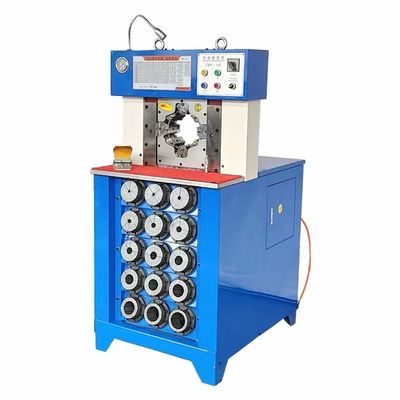

Large Opening 3 Inch PLC Hydraulic Hose Crimping Machine 1500ton With Big Force
DESCRIPTION
We help a lot of beginners in hydraulic crimping machine, If you have a reasonable knowledge of electric and are willing to spend a little time learning it is not that bad. Quite often when we sell a machine we send the manual ort before the machine is ready for the customer to read ahead.
FY-CBK-120 hydraulic hose crimping machine is specially designed for big elbow fittings and abnormal shape couplings jointing. It has a thin crimping unit with large opening stroke, can let long degree fitting crossing easily.
MAIN FEATURES
► UC control technology, crimping more accurate with high stability
► Quick change rack and die quick change technology, improve productivity
► Emergency stop device, make crimping more safe
TECHNICAL DATA
| Model | FY-CBK-120 |
| Crimping Range | 6-76(mm) |
| Crimping Force | 1500(T) |
| Hose Size | 1/4-3(inch) |
| Max. Opening | 53±mm |
| Die Sets | 15 |
|
Maximum Open Diameter |
158MM |
| System Pressure | 31.5(Mpa) |
| Accuracy | 0.01(mm) |
|
Work Efficiency |
pcs/h |
| Standard Voltage |
380v |
| Motor Power | 5.5(KW) |
| Length | 1000(mm) |
| Width | 800(mm) |
| Height | 1630(mm) |
| Weight | 1250(KG) |
NOTE
- for non standard die sets;
- Customized die sets are available;
- Special voltage 380V is availbale;

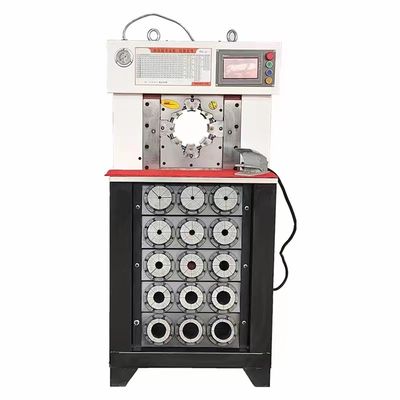

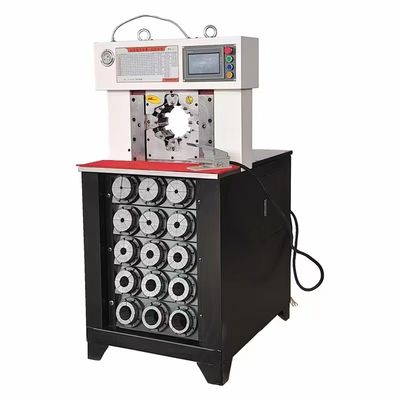

► LARGE PLC PANEL
Advanced PLC panel with high stability, convenient operating
►QUICK CHANGE TOOL FOR DIES
Make die set changing more convenient and supply a safe storage of the die sets
