50hz Hose Measuring And Cutting Machine 6-51mm Automatic Flexible Tubing Cutter
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Usage | Hose Cutting/skiving | Condition | New |
|---|---|---|---|
| Warranty | 1 Year | Dimension(l*w*h) | 550*780*900mm |
| Voltage | 100v-415v 50/60hz | Power(w) | 3kw/4kw |
| Color | Blue,As The Picture(Also Can Be Changed),Customised | Packing | Carton Box |
| Crimping Range | 6-51mm | High Light | Multifunction Hose Cutting Machine, 51CS Hose Cutting Machine, 51CS Hydraulic Hose Cutter |
| High Light | 50hz hose measuring and cutting machine,6mm automatic flexible tubing cutter,51mm automatic flexible tubing cutter |
||
You can tick the products you need and communicate with us in the message board.
| crimping range | 6-51 mm | |
|---|---|---|
| motor power | 3kw/4kw | |
| voltage | 100v-415v 50/60hz | |
| work efficiency | 1500 pcs/h | |
| machine dimension | 550*780*900 mm | |
| package dimension | 700*850*1000 mm | |
| net weight | 98 kg | |
| gross weight | 105 kg | |
Product Description
Hand Operate Rubber Layer Hose Cutting Machine Manual Skiving Machine
DECRIPTION
Operating Instructions:
(1) Turn on the power and check if the direction of rotation of the cutting piece is the same as the direction indicated by the arrow. (reverse rotation is strictly prohibited)
(2) Adjust the positioning bolt according to the size of the pipe diameter to be cut. In order to prevent the beveled surface or the clip from being cut, the card slicing phenomenon occurs.
(3) After placing the pipe to be cut, push the feed handle to complete the cutting process.

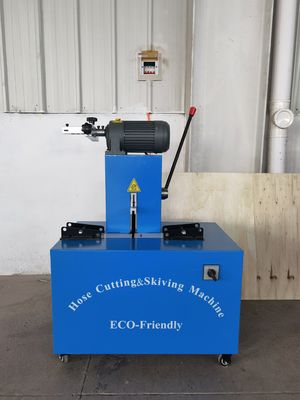

FY-QG-51 is a hose cutting machine which also have the ability to strip hose rubber. It has big power,
so that it can cut hydraulic stainless steel braided hose up to 2 inch 4 wire.
ADVANTAGES OF SPECIAL PLACE HOSE CUTTING MACHINE:
1. Movable wheel to make the machine more convenient to move;
2. Human design handle, save opetator power;
3. Scale on the skiving tool, easy to adjust the skiving depth;
4. High quality copper wire aluminium motor, no heat exceed even afetr using for a long time.
TECHNICAL DATA
| Model | FY-QG-51 Hose Cutting/Skiving Machine |
| Hose Size | 1/4''-2'' |
| Motor Power | 3kw-4kw |
| Voltage |
100v-415v 50/60hz
|
| Work Efficiency | 1500pcs/h |
|
gross weight
|
105kg |
| Length | 550mm |
| Width | 780mm |
| Height | 900mm |
| Net Weight |
98kg |

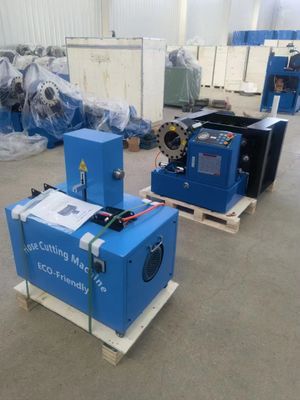

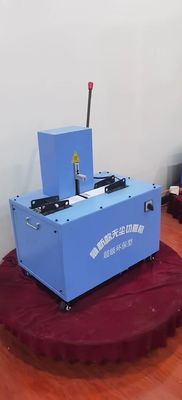

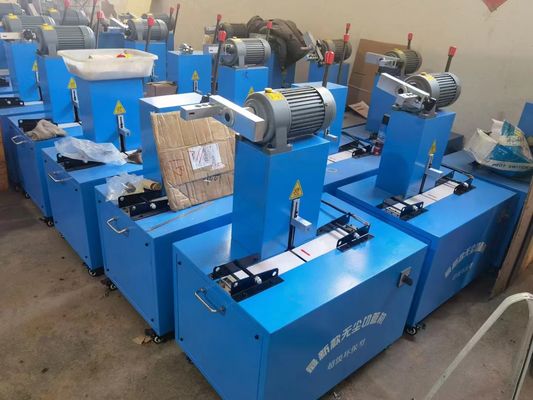

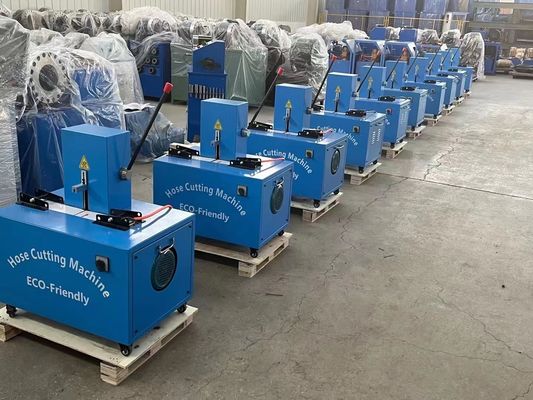

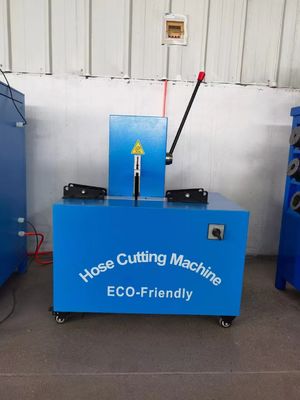

► PICTURES
► APPLICATION
FY-QG-51 is hose cutting machine which also have fucntion of hose rubber stripping. It is an essential device for hose assembly making before crimping. Cutting is to cut the hose to the needed length for hydraulic system connecting, skiving is to strip the inner or out rubber layer, so that the stainless steel braided hose can be connect well with ferrule and fittings.
TAG:
Environment Protection Hose Cutting Machine,
Rubber Steel braided hose cutter tool,
Flexible hose cutting equipment
