Large Range Air Conditioning Hose Crimper 6-51mm Hydraulic Press For Hoses CBK-51B
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xWeight | 850KG | Condition | New |
---|---|---|---|
Dimension(l*w*h) | 640*820*1400MM | Warranty | 1 Year |
After-sales Service Provided | Video Technical Support,Online Support | Voltage | 110V/220V/380V/415V 50/60Hz |
Power(w) | 4KW | Crimping Force | 1000T |
Color | Blue/white Or Custom | Crimping Range | 6-51mm,1/4"to2'',1/4''-2'' |
Product Name | 6-51mm High Pressure Hydraulic Hose Crimping Machine | Application | Crimp Hose |
Free Dies | 13 Sets | Rated Pressure | 31.5MPA |
Keywords | PLC Hydraulic Hose Crimping Machine | HIGH LIGHT | Two Inch Hose Pressing Machine, Spiraled Hose Pressing Machine, Hose Pipe Pressing Machine |
High Light | large range air conditioning hose crimper,6mm hydraulic press for hoses,51mm hydraulic press for hoses |
crimping range | 6-51 mm(1/4~2") | |
---|---|---|
quantity of dies | 13 sets | |
accuracy | 0.01 mm | |
output volume of pump | 10L | |
system pressure | 31.5mpa | |
motor power | 4kw | |
voltage | 110V/220V/380V/415V,50/60Hz | |
crimping force | 1000 t | |
work efficiency | 1000 pcs/h | |
maximum open diameter | 145 mm | |
the max open tolerance | 50 mm | |
machine dimension | 640*820*1400 mm | |
package dimension | 700*880*1500 mm | |
net weight | 850 kg | |
gross weight | 880 kg | |

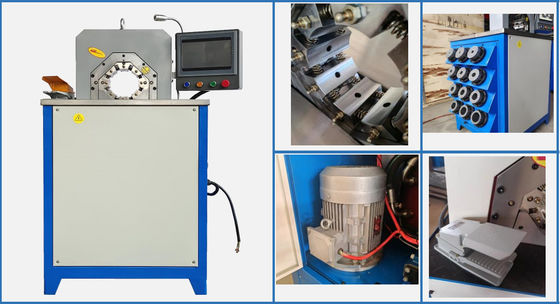

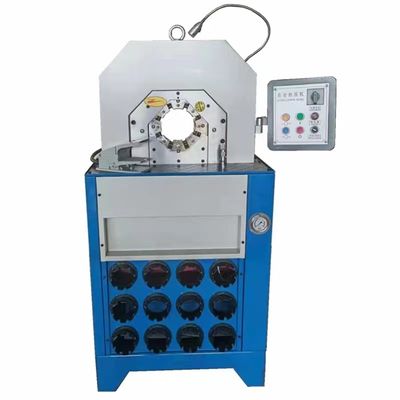

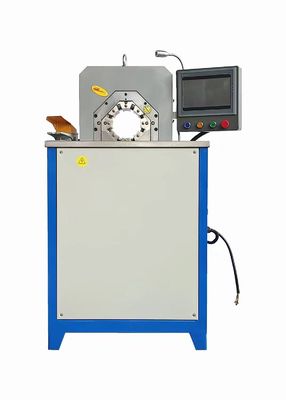

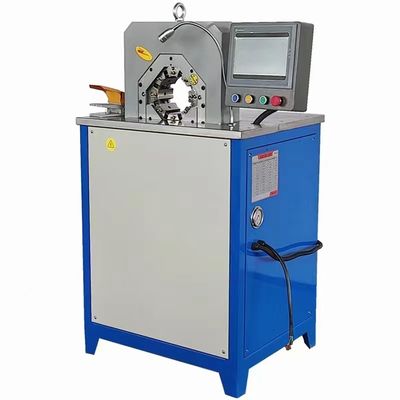

Large Range AC Hose Crimping Machine CBK-51B Air Conditioning Hose Crimper
DECRIPTION OF OUR EQUIPMENT
Regularly replace the hydraulic oil and filter. Hydraulic oil contains a variety of additives, these additives can prevent oil deterioration. However, it will lose its effectiveness after using it for a period of time. Therefore, the oil should be changed regularly to ensure that the additives are effective. The crimping machine filter can only absorb a limited number of dirt particles and other impurities from the oil. Please change the oil return filter of the hydraulic oil tank every 1000 working hours, and clean the suction filter of the hydraulic oil tank of the pipe crimping machine when changing the hydraulic oil, so as to keep the pipe press system clean.
FY-CBK-51B hose pressing machine is famous for its intelligent control system and large opening mouth. With a super crimping force, it can crimp hydraulic hose R15 R13 up to 2 inch.
MAIN FEATURES
1. Thin head, easy fed for bend fitting;
2. Big crimping power;
3. High accuracy.
TECHNICAL DATA
Model | FY-CBY-51B Hose Pressing Machine |
Crimping Range | 6-51(mm)(1/4~2") |
Crimping Force | 1000(T) |
Hose Size | 1/4-2(inch) |
Max. Opening | 145mm |
Die Sets | 13 |
work efficiency
|
300pcs/h |
System Pressure | 31.5(Mpa) |
Accuracy | 0.01(mm) |
Control | PLC |
Standard Voltage |
110V/220V/380V/415V
50/60Hz
|
Motor Power | 4(KW) |
Length | 640(mm) |
Width | 820(mm) |
Height | 1400(mm) |
Weight | 850(KG) |
NOTE
- Customized die sets are available;
- Special voltage 110V/220V/380V/415V 50/60Hz are availbale;
