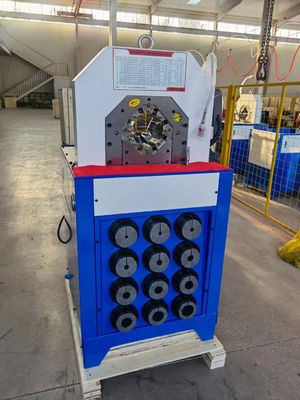

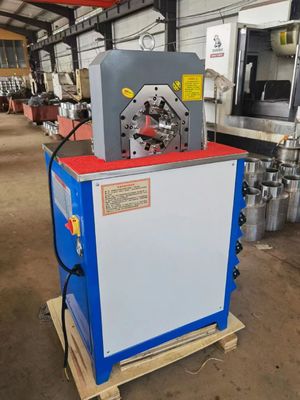

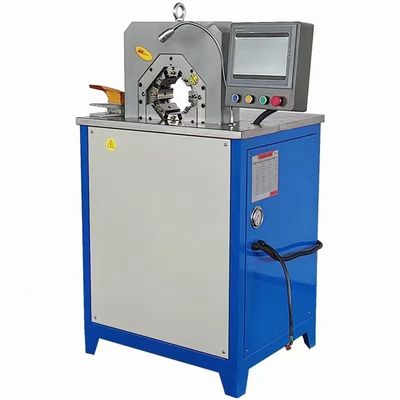

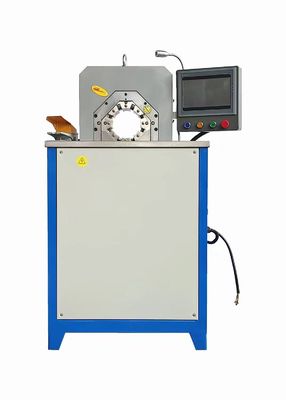

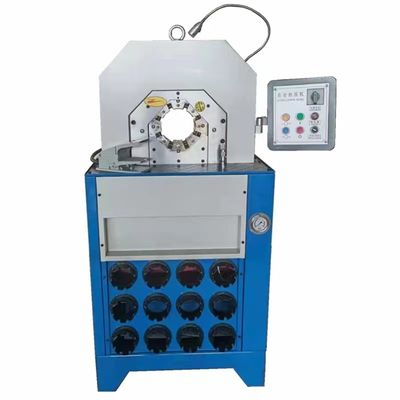

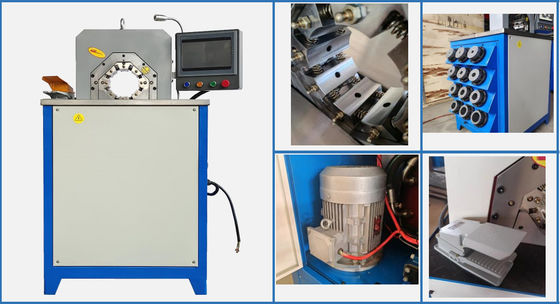

51mm Hose Pressing Machine 220V PLC Crimper CE RoHS CBK-51B
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Weight | 850KG | Condition | New |
|---|---|---|---|
| Dimension(l*w*h) | 640*820*1400MM | Warranty | 1 Year |
| After-sales Service Provided | Video Technical Support,Online Support | Voltage | 110V/220V/380V/415V 50/60Hz |
| Power(w) | 4KW | Crimping Force | 1000T |
| Color | Blue/white Or Custom | Crimping Range | 6-51mm,1/4"to2'',1/4''-2'' |
| Product Name | 6-51mm High Pressure Hydraulic Hose Crimping Machine | Application | Crimp Hose |
| Free Dies | 13 Sets | Rated Pressure | 31.5MPA |
| Keywords | PLC Hydraulic Hose Crimping Machine | HIGH LIGHT | Two Inch Hose Pressing Machine, Spiraled Hose Pressing Machine, Hose Pipe Pressing Machine |
| High Light | 51mm Hose Pressing Machine,Hose Pressing Machine 220V,PLC hose press crimper |
||
You can tick the products you need and communicate with us in the message board.
| crimping range | 6-51 mm(1/4~2") | |
|---|---|---|
| quantity of dies | 13 sets | |
| accuracy | 0.01 mm | |
| output volume of pump | 10L | |
| system pressure | 31.5mpa | |
| motor power | 4kw | |
| voltage | 110V/220V/380V/415V，50/60Hz | |
| crimping force | 1000 t | |
| work efficiency | 1000 pcs/h | |
| maximum open diameter | 145 mm | |
| the max open tolerance | 50 mm | |
| machine dimension | 640*820*1400 mm | |
| package dimension | 700*880*1500 mm | |
| net weight | 850 kg | |
| gross weight | 880 kg | |
Product Description
51mm Hydraulic Hose Crimping Machine CBK-51B 220V CE RoHS
THE DECRIPTION OF MACHINE
Cleaning: If the hydraulic oil is contaminated, all hydraulic oil must be replaced and the oil tank of the crimping machine must be cleaned. Keep the cylinder of the press machine clean: When adding or refilling the oil tank of the press machine with hydraulic oil, ensure that the area around the filter box cover is clean. Do not bring dirt into the crimping system.
FY-CBK-51B hose pressing machine is famous for its intelligent control system and large opening mouth. With a super crimping force, it can crimp hydraulic hose R15 R13 up to 2 inch.
MAIN FEATURES
1. Thin head, easy fed for bend fitting;
2. Big crimping power;
3. High accuracy.
TECHNICAL DATA
| Model | FY-CBY-51B Hose Pressing Machine |
| Crimping Range | 6-51(mm)(1/4~2") |
| Crimping Force | 1000(T) |
| Hose Size | 1/4-2(inch) |
| Max. Opening | 145mm |
| Die Sets | 13 |
|
work efficiency
|
300pcs/h |
| System Pressure | 31.5(Mpa) |
| Accuracy | 0.01(mm) |
| Control | PLC |
| Standard Voltage |
110V/220V/380V/415V
50/60Hz
|
| Motor Power | 4(KW) |
| Length | 640(mm) |
| Width | 820(mm) |
| Height | 1400(mm) |
| Weight | 850(KG) |
NOTE
- Customized die sets are available;
- Special voltage 110V/220V/380V/415V 50/60Hz are availbale;
