| Brand Name: | FY |
| Model Number: | FY-P38 |
| MOQ: | 1 set |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 sets per month |
Core Brand China Manual Hose Crimping Machine Quick High Efficiency
THE DESCRIPTION OF OUR FY-P38
- suitable height for standing operation

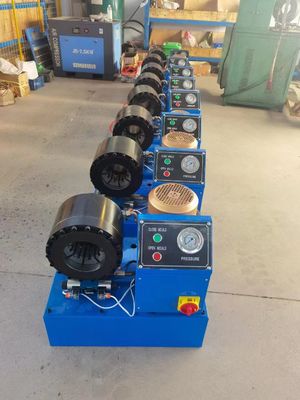

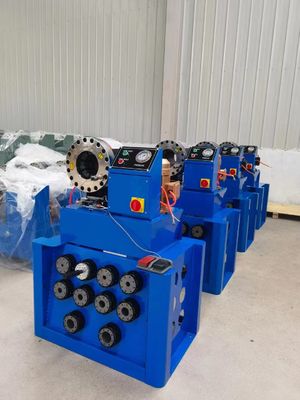

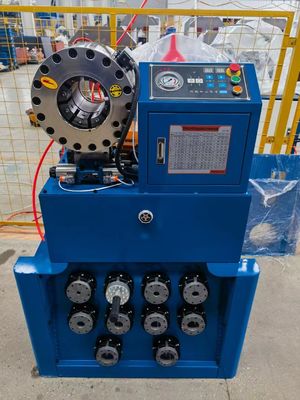

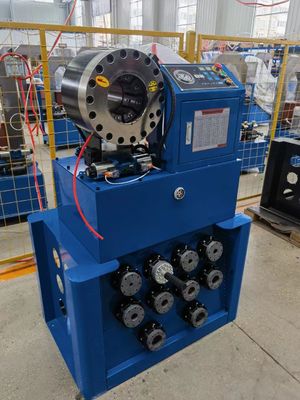

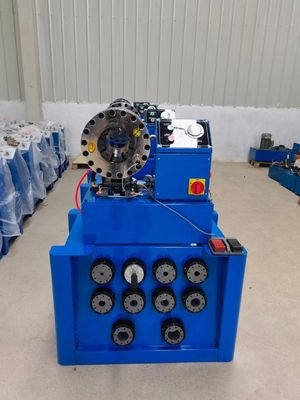

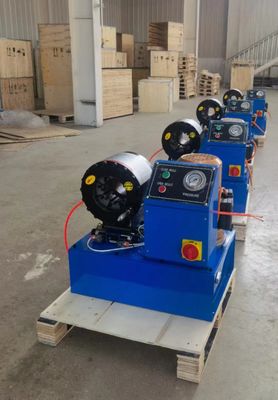

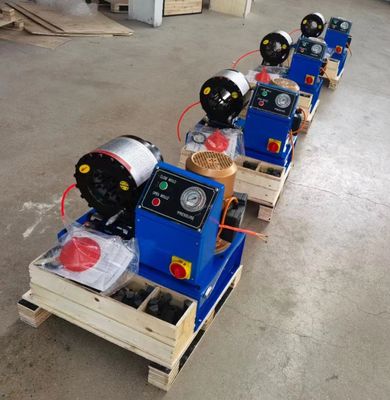

FY-P38 is a portable hydraulic hose crimping machine with light weight and compact structure. The small size makes it low cost for shipping. After years of research and development, P38 has been the most proper model for hydraulic hose crimping.
MAIN FEATURES
1. Quick speed;
2. High efficiency;
3. Easy maintenance;
4. Low noise;
5. Long service time.
| crimping range | 6-38mm(1/4''-1.5''inner diameter of hose) |
| Rated pressure | 26Mpa/31.5Mpa(Optional) |
| The largest crimping pressure | 300T |
| Rular precision | 0.01mm |
| Output volume of pump | 2.5L/5L(Optional) |
| Net weight | 275kg |
| Work efficiency | 200pcs/h |
| size | 950*630*700 mm |
| dies | 8 sets |
| Item No.of dies | length 60mm(15,19,23,26);Length 70mm(31,36,41);Length 80mm(47,55,60) |
TECHNICAL DATA
| Model | FY-P38 Portable Hydraulic Hose Crimper |
| Crimping Range | 6-38(mm) |
| Crimping Force | 300(T) |
| Hose Size | 1/4-1.5(inch) 4SH |
| Max. Opening | 104mm |
| Die Sets | 8 |
|
Output Volume Of Pump
|
2.5L/5L |
| System Pressure | 26/31.5(Mpa) |
| Accuracy | 0.01(mm) |
|
Work Efficiency
|
200PCS/H |
| Standard Voltage |
220v/240v/380v/415v (optional)
|
| Motor Power | 3KW/4(KW) |
| Length | 950(mm) |
| Width | 630(mm) |
| Height | 700(mm) |
| Net Weight | 275(KG) |
| Gross Weight | 300(KG) |
| crimping range | 6-38mm(1/4''-1.5''inner diameter of hose) |
| Rated pressure | 26Mpa/31.5Mpa(Optional) |
| The largest crimping pressure | 300T |
| Rular precision | 0.01mm |
| Output volume of pump | 2.5L/5L(Optional) |
| Net weight | 275kg |
| Work efficiency | 200pcs/h |
| size | 950*630*700 mm |
| dies | 8 sets |
| Item No.of dies | length 60mm(15,19,23,26);Length 70mm(31,36,41);Length 80mm(47,55,60) |
APPLICATIONS
FY-P38 is a high configured hose crimping machine, it has the ability of crimping high pressure stainless steel braided hydraulic hose, cable and wires, steel and iron tubes, brake lines in automotive system, air suspension or springs.
| crimping range | 6-38mm(1/4''-1.5''inner diameter of hose) |
| Rated pressure | 26Mpa/31.5Mpa(Optional) |
| The largest crimping pressure | 300T |
| Rular precision | 0.01mm |
| Output volume of pump | 2.5L/5L(Optional) |
| Net weight | 275kg |
| Work efficiency | 200pcs/h |
| size | 950*630*700 mm |
| dies | 8 sets |
| Item No.of dies | length 60mm(15,19,23,26);Length 70mm(31,36,41);Length 80mm(47,55,60) |
NOTE
1) Customized die sets are available with different size or shape;
2) Special voltage such as 220v/240v/380v/415v (optional) are availbale;
3) Foot pedal is available to make the hands free;
4) * for non standard die sets.
