| Brand Name: | FY |
| Model Number: | FY-51BY |
| MOQ: | 1 set |
| Price: | USD$1600/1500/1400/1300 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 sets per month |

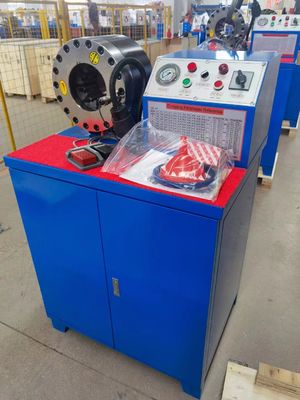

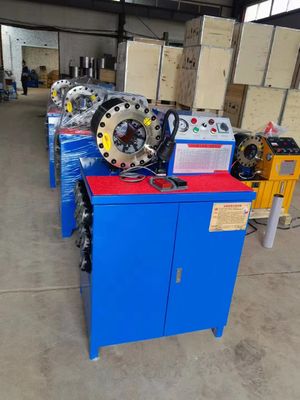

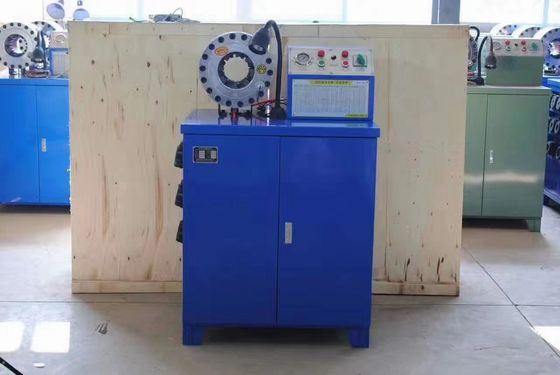

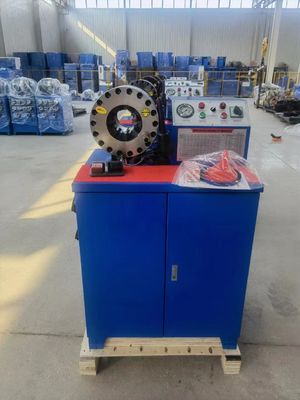

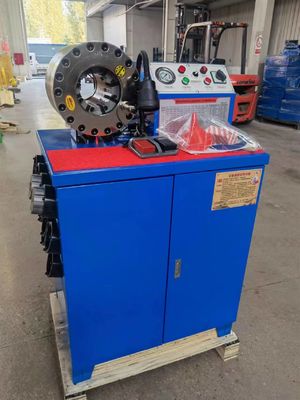

FY-51BY pipe swager hydraulic hose crimping machine
DESCRIPTION OF FY-51BY APPLIANCE
Frequently inject anti-wear lubricant into the moving surface of the mold base.FY-51BY is a the third generation among the domestic types. It provide 600T crimping force, can be worked automatically or manually depends on different need. Foot pedal can make the hand free during crimping.
MAIN ADVANTAGES
1. Forged crimping clylinder, high hardness;
2. Multifunctional operate panel, easy to change between automatic and manual;
3. Pressure Gauge, system shown clearly during crimping;
4. Foot pedal as standard to make hands free;
5. Working light to make crimping work more clear.
6. Side die set install design, more covenient.
TECHNICAL DATA
| Model | FY-51BY Hose Crimping Machine |
| Crimping Range | 6-51(mm) |
| Crimping Force | 600(T) |
| Hose Size | 1/4-2(inch) |
| Max. Opening | 30mm |
| Die Sets | 10 |
|
Work efficiency |
200PCS/H |
| System Pressure | 31.5(Mpa) |
| Accuracy | 0.01(mm) |
|
Maximum Open Diameter |
114MM |
| Standard Voltage | 220v/240v/380v/415v(optional) |
| Motor Power | 3(KW) |
| Length | 860(mm) |
| Width | 640(mm) |
| Height | 1300(mm) |
| Weight | 310(KG) |
