1/4"-2" Braided Hose Crimper 3kw Hose Fitting Crimping Machine For Sale Philippines

1/4"-2" Braided Hose Crimper 3kw Hose Fitting Crimping Machine For Sale Philippines

Brand Name:	FY
Model Number:	FY-51BY
MOQ:	1 set
Price:	USD$1600/1500/1400/1300
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	300 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai,China

Certification:

Weight:

310KG

Condition:

Dimension(l*w*h):

860*640*1300MM

Warranty:

1 Year

After-sales Service Provided:

Video Technical Support,Online Support

Voltage:

220v/240v/380v/415v(optional)

Power(w):

Crimping Force:

Color:

Blue Or Customize

Crimping Range:

6-51mm

Product Name:

Hydraulic Hose Crimping Machine,ce CE Approved 6-51mm High Pressure Hydraulic Hose Crimping Machine

Application:

Crimp Hose,rubber Hose Crimping

Free Dies:

10sets

Rated Pressure:

31.5MPA

Keywords:

Hydraulic Hose Crimping Machine, Vertical Rubber Hose Crimping Machine, 2 Inch Rubber Hose Crimping Machine,

Packaging Details:

wooden box

Supply Ability:

300 sets per month

Highlight:

1/4" braided hose crimper

2" braided hose crimper

3kw hose fitting crimping machine

Product Description

6-51mm/(1/4''-2'') hydraulic hose crimping machine for sale philippines

THE DESCRIPTION OF OUR HOSE CRIMPING MACHINE

Cleaning: If the hydraulic oil is contaminated, all hydraulic oil must be replaced and the oil tank of the crimping machine must be cleaned. Keep the cylinder of the press machine clean: When adding or refilling the oil tank of the press machine with hydraulic oil, ensure that the area around the filter box cover is clean. Do not bring dirt into the crimping system. FY-51BY is a the third generation among the domestic types. It provide 600T crimping force, can be worked automatically or manually depends on different need. Foot pedal can make the hand free during crimping.

MAIN ADVANTAGES

1. Forged crimping clylinder, high hardness;

2. Multifunctional operate panel, easy to change between automatic and manual;

3. Pressure Gauge, system shown clearly during crimping;

4. Foot pedal as standard to make hands free;

5. Working light to make crimping work more clear.

6. Side die set install design, more covenient.

crimping range/skiving range	6-51mm(1/4''-2''inner diameter of hose)
quantity of dies	10 sets
item diesNo. of	length 60mm(15,19,23,26)
	Length 70mm(31,36,41)
	Length 80mm(47,55,60)
accuracy	0.01mm
output volume of pump	2.5L/5L/10L(Optional)
system pressure	26Mpa/31.5Mpa(Optional)
motor power	3kw/4kw 1,2,3 phase (Optional)
voltage	220V/380V/415V(Customizable) 50/60Hz
crimping force	500T
work efficiency	200pcs/h
maximum open diameter	114mm
the max open tolerance	±30mm
package dimension	9006801450mm
machine dimension	8606401300mm
Net weight	310kg
Gross weight	320kg

TECHNICAL DATA

Model	FY-51BY Hose Crimping Machine
Crimping Range	6-51(mm)
Crimping Force	600(T)
Hose Size	1/4-2(inch)
Max. Opening	30mm
Die Sets	10
Work efficiency	200PCS/H
System Pressure	31.5(Mpa)
Accuracy	0.01(mm)
Maximum Open Diameter	114MM
Standard Voltage	220v/240v/380v/415v(optional)
Motor Power	3(KW)
Length	860(mm)
Width	640(mm)
Height	1300(mm)
Weight	310(KG)

1/4"-2" Braided Hose Crimper 3kw Hose Fitting Crimping Machine For Sale Philippines 0

1/4"-2" Braided Hose Crimper 3kw Hose Fitting Crimping Machine For Sale Philippines 1

NOTE

- For non standard die sets;

- Customized die sets are available;

- Special voltage 220v/240v/380v/415v(optional) are availbale;

OPTIONAL

- Quick Change Tool

- UC control

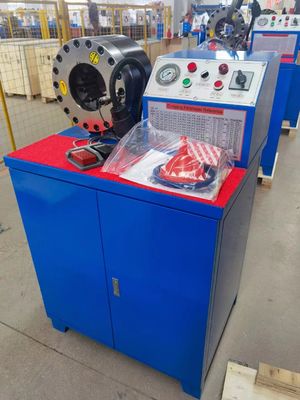

► MULTI FUNCTIONAL OPERATE PANEL

Human design, two operate mode, free change

1/4"-2" Braided Hose Crimper 3kw Hose Fitting Crimping Machine For Sale Philippines 2

► DIE SETS

6mm to 51mm die sets for hose from 1/4'' to 2'', die sets with high hardness, long service time

1/4"-2" Braided Hose Crimper 3kw Hose Fitting Crimping Machine For Sale Philippines 3

► FOOT PEDAL

Free hands for big hose, more convenient; Double usage, both closing and opening function

1/4"-2" Braided Hose Crimper 3kw Hose Fitting Crimping Machine For Sale Philippines 4

► OEM SERVICE

For different color, structure or die sets.

1/4"-2" Braided Hose Crimper 3kw Hose Fitting Crimping Machine For Sale Philippines 5

► WIDE APPLICATION

FY51BY is a 2 Inch hose crimping machine, which is capable of crimping hydrualic hose from 1/4'' to 2'', it can be used for quick jointing of material, like high pressure rubber oil hose, low pressure water or air pipes, cables, wires or ropes.

1/4"-2" Braided Hose Crimper 3kw Hose Fitting Crimping Machine For Sale Philippines 6

1/4"-2" Braided Hose Crimper 3kw Hose Fitting Crimping Machine For Sale Philippines 7

1/4"-2" Braided Hose Crimper 3kw Hose Fitting Crimping Machine For Sale Philippines 8

1/4"-2" Braided Hose Crimper 3kw Hose Fitting Crimping Machine For Sale Philippines 9

1/4"-2" Braided Hose Crimper 3kw Hose Fitting Crimping Machine For Sale Philippines 10
