| Brand Name: | FY |
| Model Number: | FY-150 |
| MOQ: | 1 set |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 sets per month |

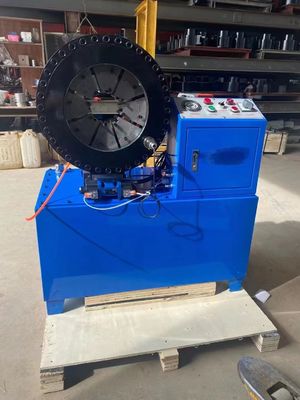

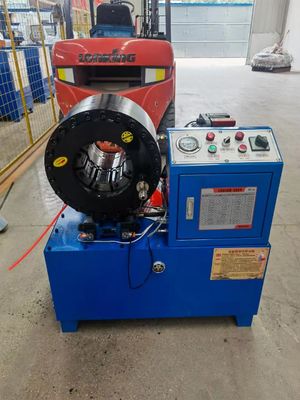

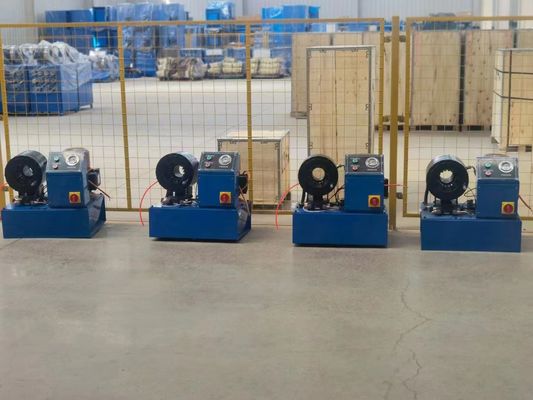

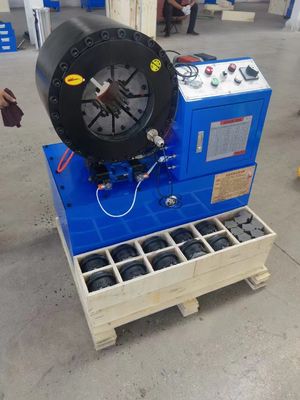

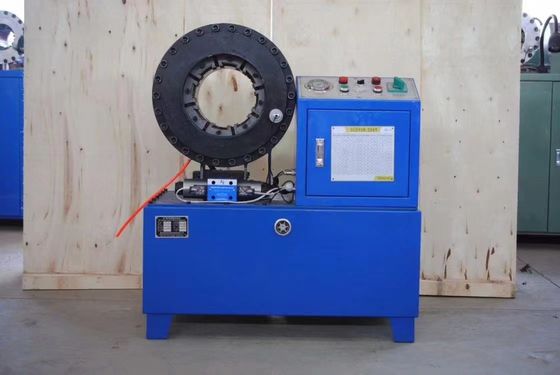

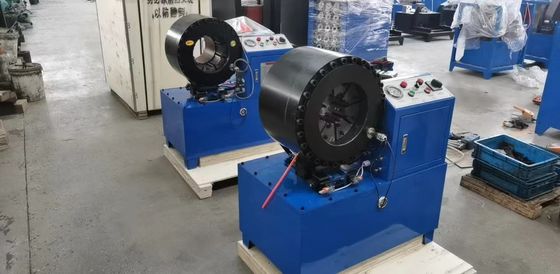

CE certified FY-150 6 inch hydraulic rubber hose crimping machine
DESCRIPTION
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in hydraulic parts ,electric parts and operation parts.
3) Button way, foot pedal to control the die opening and closing.
4) Running in a high speed,no pollution.
5)Hose Crimping Machine can Crimp the Hydraulic Hoses up to 150/6 inch Diameter.
6)It is easy to operate with Manual Operation.
FY-150 high pressure hose crimper is a large opening hose assembly 6 inch making machine. It is the ideal choice for larged hose crimping or a super accurate material which need a big opening .
MAIN FEATURES
► Advanced cylinder making technology, low maintenance cost
► High accuracy
► Big crimping force
► Double use foot pedal, more convenient
TECHNICAL DATA
| Model | FY-150 High Pressure Hose Crimper |
| Crimping Range | 4-150(mm) |
| Crimping Force | 2500(T) |
| Hose Size | 1/8-6(inch) |
| Max. Opening | 235(mm) |
| Die Sets | 20 |
| Output Volume Of Pump | 10L/16L |
| System Pressure | 31.5(Mpa) |
| Accuracy | 0.01(mm) |
| Work Efficiency | 200pcs/h |
| Standard Voltage |
110v/220v/240/380/415v
|
| Motor Power | 4KW/5.5(KW) |
| Length | 850(mm) |
| Width | 530(mm) |
| Height | 980(mm) |
| Weight |
820(KG) |
