Custom Colour Hydraulic Hose Crimping Tool 1/4 To 2 Inch Big Oil Pump

Brand Name:	FY
Model Number:	FY-51BY
MOQ:	1 set
Price:	USD$ 1600/1500/1400/1300
Payment Terms:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability:	300 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China,Shanghai

Certification:

Voltage:

220V/240V/380V/415V(Optional)

Gross Weight:

326kgs

Power(w):

3KW

Package Dimension:

900*685*1410 Mm

Crimping Force:

600Ton

Crimping Range:

6-51mm

Color:

Blue,blue Or Customize

Application:

Crimp Hose

Free Dies:

10sets

System Pressure:

31.5MPA

Output Volume Of Pump:

2.5L/5L/10L

HIGH LIGHT:

Hydraulic Hose Crimping Machine, Flexible Hydraulic Hose Crimping Machine, Flexible Hose Crimping Machine

Packaging Details:

wooden box

Supply Ability:

300 sets per month

Highlight:

51mm Hydraulic Hose Crimping Tool

1/4 Inch Hydraulic Hose Crimping Tool

Brake Hydraulic Hose Crimper

Product Description

6-51mm Hydraulic Hose Crimping Tool Big Pressing Range 1/4 to 2 inch Customer Colour 51BY

Hydraulic Hose Crimping Tool DESCRIPTION

This hydraulic hose crimping tool has a big pressing range of 6-51mm (1/4 to 2 inches) and is customizable in terms of customer color as well. Hydraulic Hose Crimping Tool is designed to crimp hoses of different sizes and materials with precision and ease. Are you interested in purchasing Hydraulic Hose Crimping Tool or do you have any further questions?Hydraulic Hose Crimping Tool is a hose crimper for hydraulic high pressure flexible hose range from 1/4 inch to 2 inch one to six stainless steel wire braided or spiraled. Hydraulic Hose Crimping Tool has three different operate mode, to meet customer different need.

Different hose or fitting need different dies mold, like air suspension ring, air conditioning hose, brake hose, hydraulic hose,cable wire, steel pipe, steel wire rope and so on. This model is equipped with 10 sets of molds, which can help you realize the processing of these products . You also can tell us what you need to crimp, then we can make customize the dies mold according to your products or requirements.

Hydraulic Hose Crimping Tool MAIN ADVANTAGES

1. Big oil pump, efficient and long life

2. Multifunctional operate panel, easy to change between automatic and semi-auto

3. Pressure can be shown on the panel

4. Foot pedal as standard to make hands free

5. Working light to make crimping work more clear

crimping range/skiving range	6-51mm(1/4''-2''inner diameter of hose)
quantity of dies	10 sets
item diesNo. of	length 60mm(15,19,23,26)
	Length 70mm(31,36,41)
	Length 80mm(47,55,60)
accuracy	0.01mm
output volume of pump	2.5L/5L/10L(Optional)
system pressure	26Mpa/31.5Mpa(Optional)
motor power	3kw/4kw 1,2,3 phase (Optional)
voltage	220V/380V/415V(Customizable) 50/60Hz
crimping force	500T
work efficiency	200pcs/h
maximum open diameter	114mm
the max open tolerance	±30mm
package dimension	9006801450mm
machine dimension	8606401300mm
Net weight	310kg
Gross weight	320kg

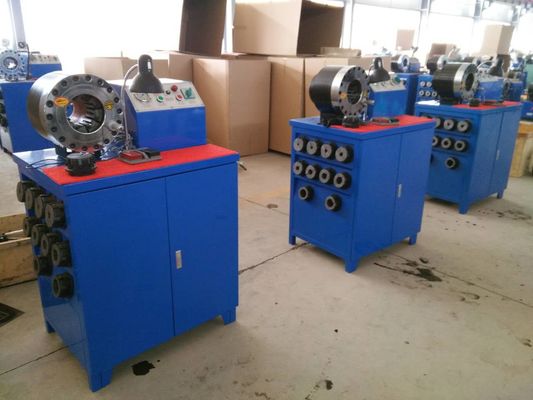

Custom Colour Hydraulic Hose Crimping Tool 1/4 To 2 Inch Big Oil Pump 0

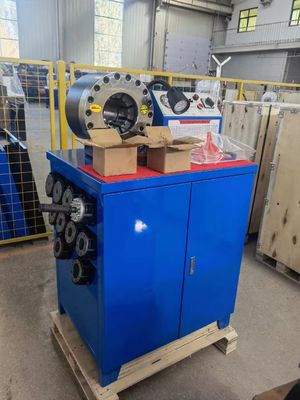

Custom Colour Hydraulic Hose Crimping Tool 1/4 To 2 Inch Big Oil Pump 1

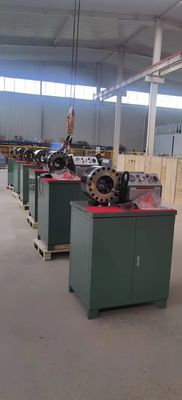

Custom Colour Hydraulic Hose Crimping Tool 1/4 To 2 Inch Big Oil Pump 2

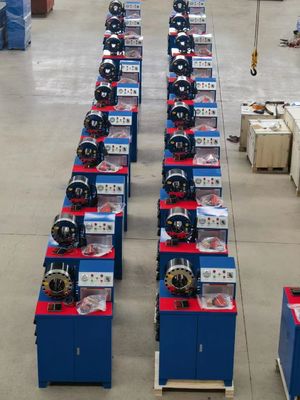

Custom Colour Hydraulic Hose Crimping Tool 1/4 To 2 Inch Big Oil Pump 3

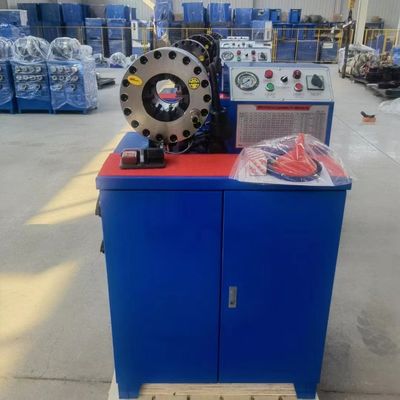

Custom Colour Hydraulic Hose Crimping Tool 1/4 To 2 Inch Big Oil Pump 4

TECHNICAL DATA

Model	FY-51BY Hose Crimping Machine
Crimping Range	6-51(mm)
Crimping Force	600(T)
Hose Size	1/4-2(inch)
Max. Opening	30±mm
Die Sets	10
Maximum Open Diameter	114MM
System Pressure	31.5(Mpa)
Accuracy	0.01(mm)
Work Efficiency	200 pcs/h
Standard Voltage	220v/240v/380v/415v(optional)
Motor Power	3(KW)
Length	860(mm)
Width	640(mm)
Height	1300(mm)
Weight	310(KG)

NOTE

- for non standard die sets;

- Customized die sets are available;

- Special voltage 220V, 240V, 380V,415V are availbale;

OPTIONAL

- Quick Change Tool

- UC control;

► TWO MODE EASY ALTERNATED

Automatic or semi-automatic mode can be choosen

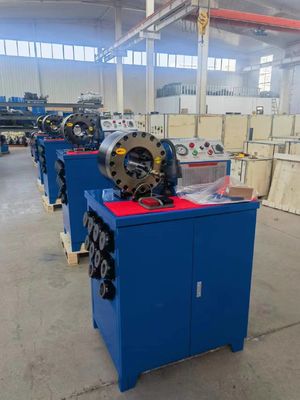

Custom Colour Hydraulic Hose Crimping Tool 1/4 To 2 Inch Big Oil Pump 5

► FOOT PEDAL SWITCH

Free hands for big hose, more convenient; Double usage, both closing and opening function

Custom Colour Hydraulic Hose Crimping Tool 1/4 To 2 Inch Big Oil Pump 6

► PEDAL SWITCH

Foot pedal is standard supplied, the advantage is it can free the hand, so even for big size crimping, crimping will be easy

Custom Colour Hydraulic Hose Crimping Tool 1/4 To 2 Inch Big Oil Pump 7

► HIGH QUALITY MOTOR

Copper wire aluminium motor, goof heat releasing

Custom Colour Hydraulic Hose Crimping Tool 1/4 To 2 Inch Big Oil Pump 8

► SAFE DIE SET STORAGE

A box inside the machine body for storing the die sets

Custom Colour Hydraulic Hose Crimping Tool 1/4 To 2 Inch Big Oil Pump 9

► APPLICATIONS

Custom Colour Hydraulic Hose Crimping Tool 1/4 To 2 Inch Big Oil Pump 14
