3kw Manual Hose Pipe Crimping Machine High Precision Hose Pipe Crimping Tool 600t
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | 220V/240V/380V/415V(Optional) | Gross Weight | 326kgs |
|---|---|---|---|
| Net Weight | 310kg | Power(w) | 3KW |
| Dimension(l*w*h) | 860*640*1300 Mm | Package Dimension | 900*685*1410 Mm |
| Warranty | 1 Year | Condition | New |
| After-sales Service Provided | Video Technical Support,Online Support | Crimping Force | 600Ton |
| Product Name | CE Approved 6-51mm High Pressure Hydraulic Hose Crimping Machine | Crimping Range | 6-51mm |
| Color | Blue,blue Or Customize | Application | Crimp Hose |
| Free Dies | 10sets | System Pressure | 31.5MPA |
| Output Volume Of Pump | 2.5L/5L/10L | HIGH LIGHT | Hydraulic Hose Crimping Machine, Flexible Hydraulic Hose Crimping Machine, Flexible Hose Crimping Machine |
| High Light | 3kw manual hose pipe crimping machine,high precision hose pipe crimping tool,hose pipe crimping tool 600t |
||
You can tick the products you need and communicate with us in the message board.
| crimping range | 6-51 mm | |
|---|---|---|
| quantity of dies | 10 sets | |
| accuracy | 0.01 mm | |
| output volume of pump | 2.5L/5L/10L | |
| system pressure | 31.5mpa | |
| motor power | 3kw | |
| voltage | 220v/240v/380v/415v (optional) | |
| crimping force | 600 t | |
| work efficiency | 200 pcs/h | |
| maximum open diameter | 114 mm | |
| the max open tolerance | 30 ±mm | |
| machine dimension | 860*640*1300 mm | |
| package dimension | 900*685*1410 mm | |
| net weight | 310 kg | |
| gross weight | 326 kg |
Product Description

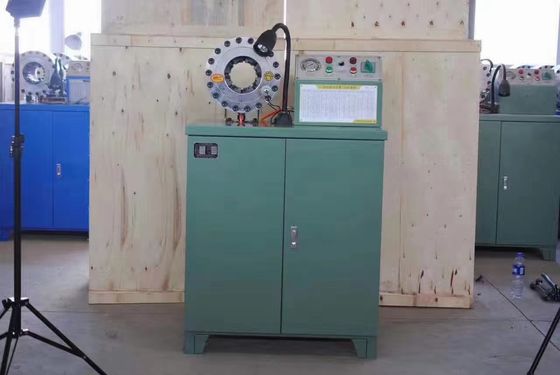

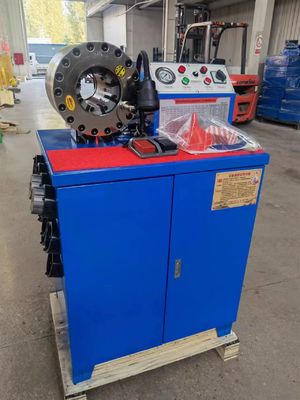

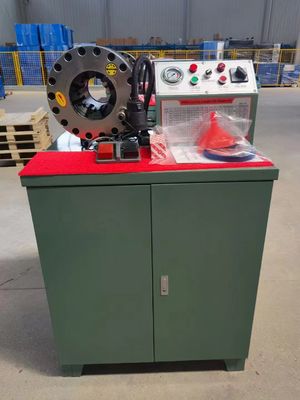

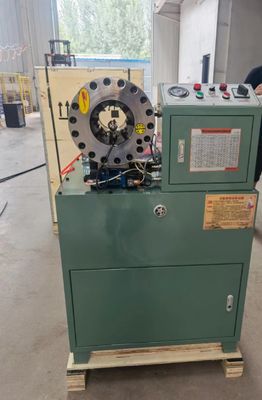

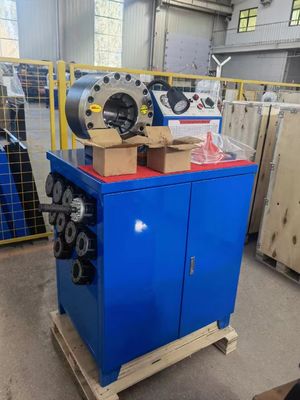

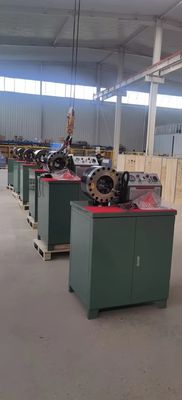

New Button Press Manual Hose Crimping Machine With High Precision
DESCRIPTION
With the development of high technologies, our products have been recognized by our clients and exported to overseas markets ,such as the USA ,the UK ,Germany, Australia, New Zealand, Singapore, Malaysia , Korean ,India and Brazil and so on.
FY-51BY is a hose crimper for hydraulic high pressure flexible hose range from 1/4 inch to 2 inch one to six stainless steel wire braided or spiraled. It has three different operate mode, to meet customer different need.
MAIN ADVANTAGES
1. Big oil pump, efficient and long life
2. Multifunctional operate panel, easy to change between automatic and semi-auto
3. Pressure can be shown on the panel
4. Foot pedal as standard to make hands free
5. Working light to make crimping work more clear
TECHNICAL DATA
| Model | FY-51BY Hose Crimping Machine |
| Crimping Range | 6-51(mm) |
| Crimping Force | 600(T) |
| Hose Size | 1/4-2(inch) |
| Max. Opening | 30±mm |
| Die Sets | 10 |
|
Maximum Open Diameter |
114MM |
| System Pressure | 31.5(Mpa) |
| Accuracy | 0.01(mm) |
|
Work Efficiency |
200 pcs/h |
| Standard Voltage |
220v/240v/380v/415v(optional) |
| Motor Power | 3(KW) |
| Length | 860(mm) |
| Width | 640(mm) |
| Height | 1300(mm) |
| Weight | 310(KG) |
NOTE
- for non standard die sets;
- Customized die sets are available;
- Special voltage 220V, 240V, 380V,415V are availbale;
OPTIONAL
- Quick Change Tool
- UC control;
► TWO MODE EASY ALTERNATED
Automatic or semi-automatic mode can be choosen
